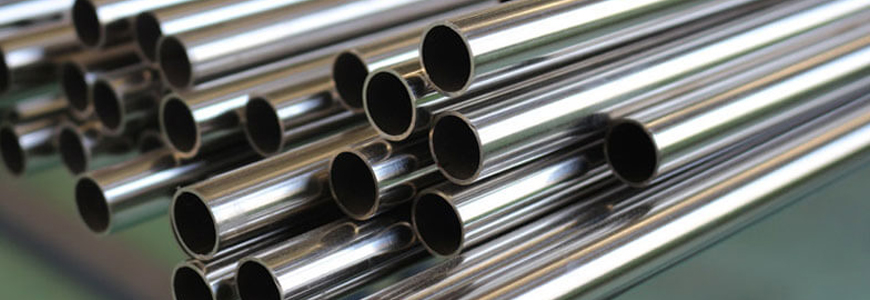

Stainless Steel 304L Pipe
Specification of Stainless Steel 304L Pipe
| Specification | ASTM A312 |
|---|---|
| Finish | AP (Annealed & Pickled), Polished, MF, BA (Bright & Annealed) |
| Origin | European, Japanese, Korean, US, Russian, Indian |
| Type | ERW / Seamless / Fabricated / Welded / CDW |
| Form | Round, Square, Rectangular |
| Surface Finish: | No.4, 2B, No.8 Mirror Finish, No.1 |
| Delivery Condition | Polished, Annealed and Pickled, Cold Drawn, Bright Annealed |
| Seamless Pipe size | 5.0 mm – 1219.2 mm |
| Schedule | SCH5, SCH10, SCH40, STD, SCH80, SCH160 |
Chemical Composition of WNR 1.4306 Square Pipe
| Grade | Carbon | Manganese | Silicone | Phosphorus | Sulfur | Chromium | Molybdenum | Nickel | Nitrogen | |
| 304L | min. | – | – | – | – | – | 18.0 | – | 8.0 | – |
| max. | 0.03 | 2.0 | 1.00 | 0.045 | 0.03 | 20.0 | 12.0 | – | ||
Mechanical Properties of SS 304L Seamless Pipe
| Grade | Tensile Strength | Yield Strength | Elongation | Hardness | |
| Rockwell B (HR B) max | Brinell (HB) max | ||||
| 304L | 485 | 170 | 40 | 92 | 201 |
ASTM A312 TP304L Pipe Physical Properties
| Grade | Density (kg/m3) | Elastic Modulus (GPa) | Mean Coefficient of Thermal Expansion (m/m/0C) | Thermal Conductivity (W/m.K) | Specific Heat 0-1000C (J/kg.K) | Electrical Resistivity (n.m) | |||
| 0-1000C | 0-3150C | 0-5380C | at 1000C | at 5000C | |||||
| 304L | 8000 | 193 | 17.2 | 17.8 | 18.4 | 16.2 | 21.5 | 500 | 720 |
304L SS Welded Pipe Equivalent Grade
| Grade | UNS No | Old British | Euronorm | Swedish SS | Japanese JIS | ||
| BS | En | No | Name | ||||
| 304L | S30403 | 304S11 | 58E | 1.4301 | X5CrNi18-10 | 2332 | SUS 304L |
