Monel K500 Pipe
Check Alloy K500 Seamless Pipe Dimensions, Nickel K500 Annealed Pipe Manufacturer
A distinguishing feature of the Alloy K500 Seamless Pipe from alloy 400 is the improved hardness as well as greater tensile strength properties, which is courtesy of the addition of both aluminium and titanium to its alloy. The Monel K500 pipe maintains its tensile strength properties even when exposed to a temperature as high as 1200° F. Notwithstanding, its corrosion resistance properties is similar to alloy 400.

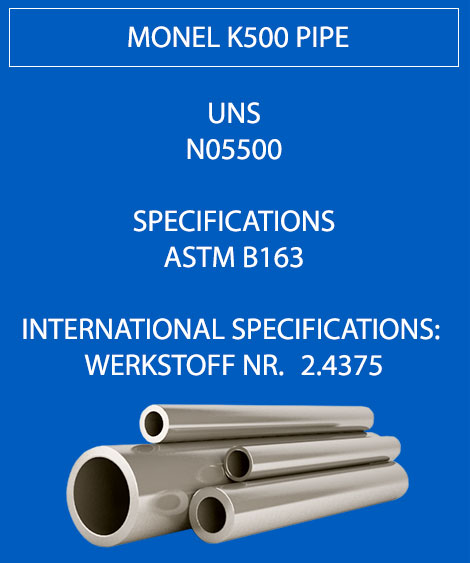

Monel K500 Pipe
Alloy K500 Seamless Pipe
Nickel K500 Annealed Pipe
Prime quality Monel K500 Pipe Supplier, Alloy K500 Seamless Pipe Delivering everywhere Worldwide, India, View Nickel K500 Annealed Pipe Price Per Kg in India.
One property valued by our buyers is that the K500 Alloy Seamless Pipe has low permeability. A low permeability ensures a leak proof delivery, which is considered to be essential, especially in the handling of flammable liquids. Industries such as oil and gas, petroleum etc are constantly involved in the transportation of combustible media. Any minor leaks in these pipes could be potentially hazardous and life-threatening. This is why Monel K500 EFW Pipe is considered as an ideal material for the aforementioned industries.
Table of Content
- What is Monel K500 Pipe?
- Specification Chart of Monel K500 Pipe
- Price List of Alloy C276 Seamless Pipe
- Size Range of Monel K500 Pipe
- Pressure Rating of Nickel Alloy K500 Pipe
- Chemical Compatibility of Monel Alloy K500 Pipe
- Mechanical Analysis of Monel K500 Pipe
- Equivalent material grade of Alloy K500 Pipe
- Wall thickness & Lenght of Monel DIN 2.4375 Pipe
Nickel Alloy K500 Hot Finished Pipe not only exemplifies good fatigue but also corrosion fatigue resistance. Since the Monel Alloy K500 Cold Drawn Pipes illustrates good resistance to chlorine compounds, it is considered as a potential alloy to be used for marine engineering and tidal waters. Nickel K500 Annealed Pipe can be used in sour gas environments, where it delivers a good performance as well.
| Standard | ASTM, ASME, JIS, AISI, AMS, EN, SAE, DIN, NF, TOCT, DS, DTD, GB |
|---|---|
| Monel K500 Seamless Pipe Size | 4 to 219mm W. T.: 0.5 to 20mm |
| Alloy Monel K500 Welded Pipe Size | 5.0 - 1219.2 mm |
| Nickel Alloy K500 EFW Pipe size | 5.0 - 1219.2 mm |
| Swg & Bwg | 10 Swg., 12 Swg., 14 Swg., 16 Swg., 18 Swg., 20 Swg. |
| Monel grade K500 Pipe Schedule | SCH5, SCH10, SCH10S, SCH20, SCH30, SCH40, SCH40S, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS |
| Monel K500 Pipe Length | Single Random, Double Random, Standard & Cut length Pipe |
| Finish | Polished, AP (Annealed & Pickled), BA (Bright & Annealed), MF, NO.1, NO.4, 2B, BA, HL, 8K, Mirror finish, etc |
| Form | Monel K500 Pipe are available in form of Round, Square, Hollow, Rectangular, Hydraulic, Coiled, Straight Pipes, “U” Shape, Pan Cake Coils etc. |
| Type of Alloy K500 Pipe | Seamless / ERW/ EFW / Welded / Fabricated / CDW / DOM / CEW Monel K500 Pipe |
| Monel K500 Pipe End | Plain End, Beveled End, Treaded Pipe, Screwed ends |
| Marking on ASTM B163 UNS N05500 Pipe | All Monel K500 Pipes are marked as follows: Standard, Grade, OD, Thickness, Length, Heat No. (Or according to the customer’s request.) |
| Application of Monel K500 Pipe | Dairy Pipe, Oil Pipe, Gas Pipe, Fluid Pipe, Boiler Pipe for Chemical Industry |
| Value Added Service | Draw & Expansion as per required Size & Length, Polish (Electro & Commercial) Annealed & Pickled Bending, Machining Etc. |
| Specialize in | Large Diameter Monel K500 Pipe |
| Monel K500 Pipe manufacturing Technique | Cold drawn, hot drawn, bright annealed, solid solution, hot extruding |
| Our stockyard | Ahmedabad, Agra, Dhanbad, Tirunelveli, Bengaluru, Chennai, Mumbai, Hyderabad, Bhubaneswar, Noida, Pimpri-Chinchwad, Shivamogga, Coimbatore, Thiruvananthapuram, Tiruchirappalli, Pune, Navi Mumbai |
| Monel K500 Pipe Test Certificate | Manufacturer Test Certificate Laboratory Test Certificate from Govt. Approved Lab. Under Third Party Inspection |
| Material Test Certificates (MTC) | Material Test Certificates (MTC) as per EN 10204/3.1B, EN 10204 3.1 and EN 10204 3.2, 100% Radiography Test Report, Heat Treatment Charts, Raw Materials Certificate, Third Party Inspection Report, Fumigation Certificates, Monel K500 Pipe HS Code Commercial Invoice, Form A for Generalized System of Preferences (GSP) |
| Manufacturers of Monel K500 Pipe |
|
| We can also cut, thread, and groove Alloy Monel K500 Pipe to meet your specifications. Monel K500 Pipe Dimension ANSI/ ASME B36.10, B36.19, B2.1 | |
High quality Monel Alloy K500 Cold Drawn Pipes Stockist, Thickness 9.0mm Nickel Alloy K500 Hot Finished Pipe supplier, Check Competitive industrial price for K500 Alloy Seamless Pipe, View Thin wall Rectangular welded Monel K500 EFW Pipe Pressure Rating
Alloy Monel K500 Seamless Pipes are supplied according to ANSI/ ASME B36.19.
WT = Monel K500 Pipe wall thickness
OD = Monel K500 Pipe outside diameter
| ASTM B165 Monel K500 Pipe OD mm |
Pipe WT mm |
in. | Sch | Kg/m |
|---|---|---|---|---|
| 13.72 | 1.65 | 1/4 | 10S | 0.50 |
| 13.72 | 2.24 | 1/4 | 40S | 0.64 |
| 13.72 | 3.02 | 1/4 | 80S | 0.81 |
| 17.15 | 1.65 | 3/8 | 10S | 0.64 |
| 17.15 | 2.31 | 3/8 | 40S | 0.86 |
| 17.15 | 3.20 | 3/8 | 80S | 1.12 |
| 21.34 | 2.11 | 1/2 | 10S | 1.02 |
| 21.34 | 2.77 | 1/2 | 40S | 1.29 |
| 21.34 | 3.73 | 1/2 | 80S | 1.65 |
| 26.67 | 2.11 | 3/4 | 10S | 1.30 |
| 26.67 | 2.87 | 3/4 | 40S | 1.71 |
| 26.67 | 3.91 | 3/4 | 80S | 2.23 |
| 33.40 | 2.77 | 1 | 10S | 2.13 |
| 33.40 | 3.38 | 1 | 40S | 2.54 |
| 33.40 | 4.55 | 1 | 80S | 3.29 |
| 33.40 | 6.352) | 1 | 160 | 4.30 |
| 42.16 | 2.77 | 1¼ | 10S | 2.73 |
| 42.16 | 3.56 | 1¼ | 40S | 3.44 |
| 42.16 | 4.85 | 1¼ | 80S | 4.53 |
| 42.16 | 6.352) | 1¼ | 160 | 5.69 |
| 48.26 | 2.77 | 1½ | 10S | 3.16 |
| 48.26 | 3.68 | 1½ | 40S | 4.11 |
| 48.26 | 5.08 | 1½ | 80S | 5.49 |
| 60.33 | 2.77 | 2 | 10S | 3.99 |
| 60.33 | 3.91 | 2 | 40S | 5.52 |
| 60.33 | 5.54 | 2 | 80S | 7.60 |
| 60.33 | 8.742) | 2 | 160 | 11.29 |
| 73.03 | 3.05 | 2½ | 10S | 5.35 |
| 73.03 | 5.16 | 2½ | 40S | 8.77 |
| 73.03 | 7.01 | 2½ | 80S | 11.59 |
| 88.90 | 3.05 | 3 | 10S | 6.56 |
| 88.90 | 5.49 | 3 | 40S | 11.47 |
| 88.90 | 7.62 | 3 | 80S | 15.51 |
| 88.90 | 11.132) | 3 | 160 | 21.67 |
| 101.60 | 3.05 | 3½ | 10S | 7.53 |
| 101.60 | 5.74 | 3½ | 40S | 13.78 |
| 101.60 | 8.08 | 3½ | 80S | 18.92 |
| 114.30 | 3.05 | 4 | 10S | 8.50 |
| 114.30 | 6.02 | 4 | 40S | 16.32 |
| 114.30 | 8.56 | 4 | 80S | 22.67 |
| 114.30 | 13.492) | 4 | 160 | 34.05 |
| 141.30 | 6.55 | 5 | 40S | 22.10 |
| 141.30 | 9.53 | 5 | 80S | 31.44 |
| 141.30 | 15.882) | 5 | 160 | 49.87 |
| 168.28 | 3.4 | 6 | 10S | 14.04 |
| 168.28 | 7.11 | 6 | 40S | 28.69 |
| 168.28 | 10.97 | 6 | 80S | 43.21 |
| 168.28 | 14.27 | 6 | 120 | 54.75 |
| 168.28 | 18.262) | 6 | 160 | 68.59 |
| 219.08 | 8.18 | 8 | 40S | 43.20 |
| 219.08 | 12.7 | 8 | 80S | 65.63 |
| 219.08 | 18.23 | 8 | 120 | 91.30 |
| 219.08 | 23.012) | 8 | 160 | 112.97 |
|
Tube O.D. |
Wall Thickness of Tube (inches) | |||||||
| .028 | .035 | .049 | .065 | .083 | .095 | .109 | .120 | |
| Working Pressure (psig) | ||||||||
| 1/8 | 7900 | 10100 | ||||||
| 1/4 | 3700 | 4800 | 7000 | 9500 | ||||
| 5/16 | 3700 | 5400 | 7300 | |||||
| 3/8 | 3100 | 4400 | 6100 | |||||
| 1/2 | 2300 | 3200 | 4400 | |||||
| 3/4 | 2200 | 3000 | 4000 | 4600 | ||||
| 1 | 2200 | 2900 | 3400 | 3900 | 4300 | |||
| Monel K500 Pipe | 4 inch Nickel Alloy K500 Seamless Pipe |
| Nickel Alloy K500 Pipes | Monel grade K500 Welded Pipes |
| Monel Alloy K500 Seamless Steel Pipe | Nickel K500 Cold Drawn Welded Pipes |
| Nickel Alloy K500 Welded Pipe | Monel 2.4375 Cold Drawn Pipes |
| Monel grade K500 ERW Pipe | Schedule 5S Monel Alloy K500 Seamless Pipes |
| Monel 2.4375 EFW Pipes | Schedule 40 Monel K500 UNS N05500 Pipe |
| Monel Alloy K500 Cold Drawn Seamless Pipes | Monel grade K500 Precision Pipes |
| Monel K500 Seamless Steel Precision Pipes | High pressure Alloy Monel K500 Pipes |
| Monel K500 UNS N05500 Cold Drawn Seamless Pipes | Alloy K500 Electropolished Pipe |
| Nickel Alloy K500 Custom Pipes | Monel K500 Cold Drawn Pipes |
| Nickel K500 Round Pipes | ASTM B163 UNS N05500 Exhaust Pipes |
| Alloy K500 Square Pipe | Monel grade K500 Thin Wall Pipe |
| ASTM B163 UNS N05500 Rectangular Pipe | Small diameter Alloy K500 Pipes |
| Monel Alloy K500 Hexagonal Pipes | Nickel Alloy K500 Pipe material |
| Monel K500 Bush Hex Pipe | Monel K500 UNS N05500 Precision Steel Pipes |
| Monel 2.4375 Fabricated Pipe | Nickel K500 Annealed pipe |
| Nickel K500 Beveled End Pipe | Monel 2.4375 Rectangle Pipe |
| Alloy Monel K500 Cold Drawn Pipe | Cold Drawn Monel K500 Welded Pipe |
Prime quality K500 Monel Welded Pipe Supplier, Light gauge UNS N05500 Welded Pipe Stockist. Monel K500 Hexagonal Pipe manufacturers. Precision Welded Monel K500 Hollow Pipe traders, Best Selling Monel WERKSTOFF NR. 2.4375 Pipe
Most famous types of Monel 400 Seamless Tube
Monel K500 UNS N05500 Precision Steel Pipes
Monel Alloy K500 Cold Drawn Seamless Pipes
ASTM B163 UNS N05500 Exhaust Pipe
Monel K500 Bush Hex Pipe
| Grade | C | Mn | Si | S | Cu | Fe | Ni |
| Monel K500 | 0.25 max | 1.5 max | 0.5 max | 0.010 max | 27.00 – 33.00 | 0.5 – 2 | 63.00 min |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Monel K500 | 8.44 g/cm3 | 1350 °C (2460 °F) | Psi – 160000 , MPa – 1100 | Psi – 115000 , MPa – 790 | 20 % |
| STANDARD | WERKSTOFF NR. | UNS |
| Monel K500 | 2.4375 | N05500 |
Largest independent stockholder ASTM B670 UNS N05500 Annealed Pipe, Most reliable Distriubutor Alloy K500 Hot Finished Pipe, Order custom sizes online WNR 2.4375 Cold Drawn Pipes, Global Suppliers of K500 Monel Welded Pipe . Largest independent Dealer Monel K500 ERW Pipe, Monel Alloy K500 Round Pipe.
| Types | Out diameter | Wall thickness | Length |
|---|---|---|---|
| NB Sizes (in stock) | 1/8” ~ 8” | SCH 5 / SCH 10 / SCH 40 / SCH 80 / SCH 160 | Upto 6 Meters |
| Monel K500 Seamless Pipe (Custom Sizes) | 5.0mm ~ 203.2mm | As per requirement | Upto 6 Meters |
| Monel K500 Welded Pipe (in Stock + Custom Sizes) | 5.0mm ~ 1219.2mm | 1.0 ~ 15.0 mm | Upto 6 Meters |
