Non-magnetic in nature, the Monel K500 round bar must be annealed before being welded followed by then stress relieving before being aged. Due to its high tensile strength properties and low corrosion rates in high velocity seawater, the Monel K500 Rod is well suited to be used in the marine industry along with the oil and gas production as well.

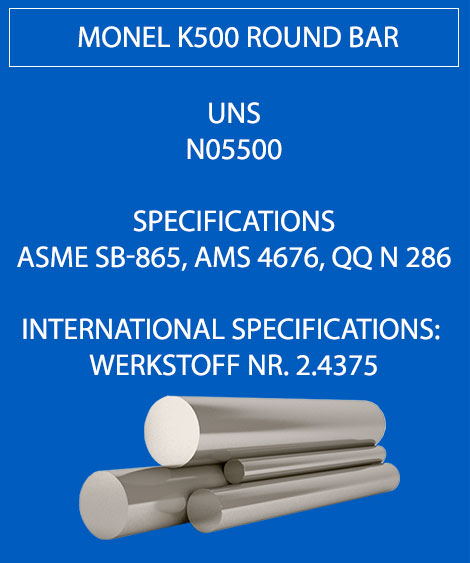

Monel K500 Round Bar
Alloy K500 Rod
Nickel K500 Hex Bar
This nickel copper based alloy has been precipitation hardened in addition to the Alloy K500 Rod containing some amounts of aluminium and titanium. If compared to alloy grade 400, the Monel K500 Flat Bar has higher tensile strength corrosion fatigue as well as erosion resistance. One important characteristic of the Monel K500 Square Bar is that the alloy has excellent mechanical properties across various temperature settings.
In fact, the alloy performs admirably from sub-zero temperatures up to about a temperature of about 480C. Additionally, the corrosion resistance properties of Monel K500 Hex Bar is why they are extensively used in pure water to non-oxidising mineral acids along with salts and alkali based media. If compared to Monel 400, the Nickel K500 Hex Bar is two times more in terms of its tensile strength and is approximately three times the yield strength of the former alloy.
Alloy Monel K500 Round bar size | Diameter: 3-~800mm |
---|---|
Nickel Alloy K500 Hex Bar size | 2-100mm A/F |
Monel grade K500 Flat bar size | Thickness: 2 -100mm |
Width: 10 to 500mm | |
Monel 2.4375 Square bar size | 4 to 100mm |
Monel Alloy K500 Angle bar size (in mm) | 3*20*20~12*100*100 |
Monel K500 UNS N05500 Section | 3.0 to 12.0mm thickness |
Nickel K500 Channel Bar (in mm) | 80 x 40 to 150 x 75 section; 5.0 to 6.0 thickness |
Alloy K500 Hollow Bar (in mm) | 32 OD x 16 ID to 250 OD x 200 ID) |
ASTM B865 UNS N05500 Billet Size | 1/2" to 495mm Diameter |
Monel K500 Rectangles Size | 33 x 30mm to 295 x 1066mm |
Nickel Alloy K500 Round Bar Finish | Cold (bright) drawn, centreless ground, hot rolled, smooth turned, peeled, slit rolled edge, hot rolled annealed, Rough Turned, Bright, Polish, Grinding, Centreless Ground & Black |
Monel K500 Round Bars | Monel 2.4375 Flat Bar |
Alloy Monel K500 Bars | Monel grade K500 Flat Bar Black |
Nickel Alloy K500 Rounds | Monel Alloy K500 Flat Bar Bright |
Monel grade K500 Bright Bars | Monel K500 UNS N05500 Flat Bar Polished |
Monel 2.4375 Rods | Alloy Monel K500 Flat Bar Cold Drawn |
Nickel Alloy K500 Square Bar Cold Drawn | Alloy Monel K500 Rods |
Monel Alloy K500 Rod | Monel K500 Flat Bar Annealed |
Monel K500 UNS N05500 Round Bars | Alloy Monel K500 Rods |
Nickel K500 Rods | Nickel Alloy K500 Threaded Bars |
Alloy Monel K500 Square Bars Polished | Monel K500 Bright Bars Hot Rolled |
ASTM B865 UNS N05500 Hex Bar Bright | Monel 2.4375 Hollow Bars |
Alloy K500 Rectangular Bar Annealed | Monel grade K500 Polished Hex Bars |
Monel K500 Hex Bar Polished | Monel Alloy K500 Hexagonal Bars |
ASTM B865 UNS N05500 Rectangular Bars | Nickel K500 Threaded Bar Black |
Monel grade K500 Hex Bar Annealed | Nickel K500 Cold Drawn Round Bars |
Monel Alloy K500 Forged Bar | Alloy K500 Polished Bar |
Round Bar | ||||||||
---|---|---|---|---|---|---|---|---|
Size | Kgs / Foot | Kgs / Mtr | Size | Kgs / Foot | Kgs / Mtr | Size | Kgs / Foot | Kgs / Mtr |
3mm | 0.017 | 0.055 | 20mm | 0.753 | 2.470 | 3" | 10.900 | 35.762 |
1/8" | 0.019 | 0.062 | 22mm | 0.908 | 2.979 | 3-1/4" | 12.800 | 41.996 |
5/32" | 0.029 | 0.095 | 7/8" | 0.926 | 3.038 | 3-1/2" | 14.850 | 48.772 |
4mm | 0.030 | 0.098 | 24mm | 1.080 | 3.543 | 3-3/4" | 17.001 | 55.780 |
3/16" | 0.043 | 0.141 | 25mm | 1.180 | 3.871 | 4" | 19.306 | 63.340 |
5mm | 0.047 | 0.154 | 1" | 1.210 | 3.970 | 4-1/4" | 21.908 | 72.249 |
7/32" | 0.058 | 0.190 | 26mm | 1.271 | 4.170 | 4-1/2" | 24.4487 | 80.340 |
6mm | 0.068 | 0.223 | 27mm | 1.368 | 4.490 | 4-3/4" | 27.366 | 90.249 |
1/4" | 0.076 | 0.249 | 1-1/8" | 1.534 | 5.033 | 5" | 30.461 | 99.940 |
7mm | 0.091 | 0.298 | 30mm | 1.691 | 5.548 | 5-1/2" | 36.690 | 121.000 |
5/16" | 0.118 | 0.387 | 1-1/4" | 1.924 | 6.349 | 6" | 43.860 | 143.900 |
8mm | 0.120 | 0.398 | 32mm | 1.894 | 6.314 | 6-1/2" | 51.093 | 167.630 |
9mm | 0.152 | 0.498 | 1-3/8" | 2.303 | 7.550 | 7" | 59.432 | 196.000 |
3/8" | 0.170 | 0.557 | 35mm | 2.390 | 7.553 | 7-1/2" | 68.226 | 225.000 |
10mm | 0.189 | 0.620 | 36mm | 2.438 | 7.999 | 8" | 77.586 | 254.55 |
11mm | 0.228 | 0.748 | 38mm | 2.792 | 8.903 | 10" | 121.048 | 397.140 |
7/16" | 0.232 | 0.761 | 1-1/2" | 2.715 | 8.951 | |||
12mm | 0.271 | 0.889 | 40mm | 3.009 | 9.872 | |||
1/2" | 0.303 | 0.994 | 1-5/8" | 3.200 | 10.449 | |||
13mm | 0.318 | 1.043 | 1-3/4" | 3.712 | 12.179 | |||
14mm | 0.368 | 1.207 | 45mm | 3.807 | 12.555 | |||
9/16" | 0.383 | 1.256 | 1-7/8" | 4.260 | 13.977 | |||
15mm | 0.424 | 1.391 | 48mm | 4.330 | 14.205 | |||
5/8" | 0.473 | 1.551 | 50mm | 4.698 | 15.414 | |||
16mm | 0.481 | 1.578 | 2" | 4.848 | 15.906 | |||
17mm | 0.543 | 1.791 | 2-1/8" | 5.475 | 17.963 | |||
11/16" | 0.573 | 1.880 | 2-1/4" | 6.135 | 20.128 | |||
18mm | 0.610 | 2.001 | 60mm | 6.768 | 22.205 | |||
3/4" | 0.682 | 2.237 | 2-3/8" | 6.838 | 22.435 | |||
2-1/2" | 7.576 | 24.856 | ||||||
2-5/8" | 8.354 | 27.409 | ||||||
2-3/4" | 9.169 | 30.083 |
Tolerances for Cold Drawn Monel K500 Round Bar | ||
---|---|---|
Shape / Section | Size, diameter or width across flats | Permitted variation |
mm | mm | |
Round | ≥6 ≦ 18 > 18 ≦ 30 > 30 ≦ 50 > 50 ≦ 80 > 80 ≦ 100 |
+ 0 to - 0.070 + 0 to - 0.085 + 0 to - 0.100 + 0 to - 0.120 + 0 to - 0.140 |
Flat (thickness) | < 18 > 18 ≦ 30 > 30 ≦ 50 > 50 ≦ 80 |
+ 0 to - 0.110 + 0 to - 0.130 + 0 to - 0.250 + 0 to - 0.350 |
Flat (width) | < 18 > 18 ≦ 30 > 30 ≦ 50 > 50 ≦ 80 > 80 ≦ 100 > 100 ≦ 130 > 130 ≦ 160 > 160 ≦ 320 |
+ 0 to - 0.110 + 0 to - 0.130 + 0 to - 0.160 + 0 to - 0.190 + 0 to - 0.220 + 0 to - 0.350 + 0 to - 1.00 + 1.00 to - 1.00 |
Square and hexagon |
≥ 6 ≦ 18 > 18 ≦ 30 > 30 ≦ 50 > 50 ≦ 80 > 80 ≦ 105 |
+ 0 to - 0.090 + 0 to - 0.110 + 0 to - 0.130 + 0 to - 0.160 + 0 to - 0.250 |
Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
Monel K500 | 8.44 g/cm3 | 1350 °C (2460 °F) | Psi – 160000 , MPa – 1100 | Psi – 115000 , MPa – 790 | 20 % |
Grade | C | Mn | Si | S | Cu | Fe | Ni |
Monel K500 | 0.25 max | 1.5 max | 0.5 max | 0.010 max | 27.00 – 33.00 | 0.5 – 2 | 63.00 min |
STANDARD | WERKSTOFF NR. | UNS |
Monel K500 | 2.4375 | N05500 |
UNS: |
N05500 |
Specifications: |
ASME SB-865, AMS 4676, QQ N 286 |
international Specifications: |
WERKSTOFF Nr 2.4375 |
