Austenitic grade Hastelloy C22 is a popular choice for applications involving industries such as Marine, Chemical processing, Waste disposal, Power, Pollution control as well as Paper processing. The Alloy C22 Square Bar proves to be highly remunerative to the chemical processing industry in particular. This is because, in chemical processing systems, the occurrence of upset conditions are fairly regular. An upset condition would mean both reducing and oxidizing conditions taking place in these process streams. These upset conditions could cause stress to the more conventionally used stainless steel or carbon steel grade, which is why the aforementioned grades are to be avoided in process streams.

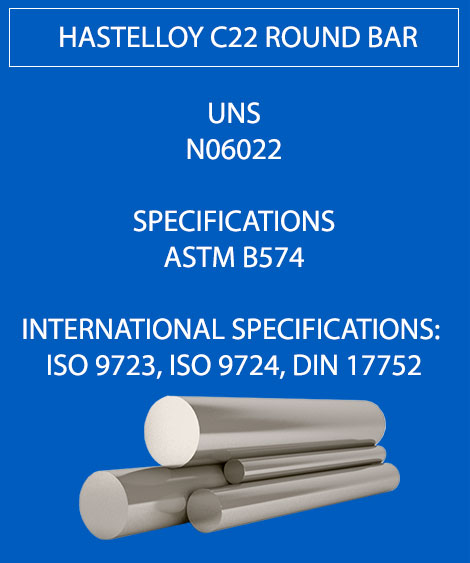

Hastelloy C22 Round Bar
Alloy C22 Rod
Hastelloy C22 Flat Bar
However, unlike their austenitic stainless steel or carbon steel grade counterparts, the Hastelloy Alloy C22 Round Bar is not vulnerable to stress caused by these upset conditions. Moreover, the Hastelloy C22 Bar is resilient to corrosion caused by both oxidative and reductive mediums. When exposed to oxidative agents such as ferric acids or acetic anhydride or even in oxidizing aqueous media, the Hastelloy C22 round bar proves to be useful due to its corrosion resistance properties.
In fact, the corrosion resistance properties of the Alloy C22 Rod has been attributed to the addition of chromium to its alloy. On the other hand, the inclusion of molybdenum and tungsten content in the Alloy C22 Round Bar is what gives it good resistance to reducing media. The Hastelloy C22 Flat Bar has the ability to manifest excellent resistance to seawater and brine solutions as well.
Grades | Hastelloy C22 (UNS No. N06022) |
Standards | ASTM, ASME and API |
Specifications | ASTM B574 / ASME SB574 |
Size | 6 mm to 120 mm. |
Diameter | 3.17mm to 350mm diameter |
Length | 100 mm to 3000 mm Long & Above |
Form | Round, Square, Hex (A/F), Rectangle, Billet, Ingot, Forging Etc. |
Finish | Black, Bright Polished, Rough Turned, NO.4 Finish, Matt Finish, BA Finish |
Hastelloy C22 Round Bar | C22 Hastelloy Flat Bar |
Hastelloy Alloy C22 Bar | Nickel C22 Flat Bar Black |
Hastelloy DIN 2.4602 Rounds | ASTM B574 UNS N06022 Flat Bar Bright |
Nickel C22 Bright Bar | Alloy C22 Flat Bar Polished |
C22 Hastelloy Rods | Hastelloy Alloy C22 Flat Bar Cold Drawn |
Hastelloy DIN 2.4602 Square Bar Cold Drawn | Hastelloy Alloy C22 Bright Bar material |
ASTM B574 UNS N06022 Rod | Hastelloy C22 Flat Bar Annealed |
Alloy C22 Round Bars | Hastelloy Alloy C22 Flat Bar stock |
Hastelloy 2.4602 Hex Bar | Hastelloy DIN 2.4602 Threaded Bar |
Hastelloy Alloy C22 Square Bar Polished | Hastelloy C22 Bright Bar Hot Rolled |
Nickel Alloy C22 Hex Bar Bright | C22 Hastelloy Hollow Bar |
Hastelloy UNS N06022 Rectangular Bar Annealed | Nickel C22 Polished Hex Bar |
Hastelloy C22 Hex Bar Polished | ASTM B574 UNS N06022 Hexagonal Bar |
Nickel Alloy C22 Rectangular Bar | Hastelloy 2.4602 Threaded Bar Black |
Nickel C22 Hex Bar Annealed | Hastelloy 2.4602 Cold Drawn Round Bar |
ASTM B574 UNS N06022 Forged Bar | Hastelloy UNS N06022 Polished Bar |
Turned Hastelloy C22 round bar Tolerances | |
---|---|
Hastelloy C22 round bar Size, diameter | Permitted variation |
mm | mm |
≧ 6 ≦ 18 > 18 ≦ 30 > 30 ≦ 50 > 50 ≦ 80 > 80 ≦ 120 > 120 ≦ 180 > 180 ≦ 250 > 250 ≦ 315 > 315 ≦ 400 > 400 |
+ 0 to - 0.070 + 0 to - 0.085 + 0 to - 0.100 + 0 to - 0.120 + 0 to - 0.140 + 0 to - 0.160 + 0 to - 0.185 + 0 to - 0.210 + 0 to - 0.230 + 0 to - 0.250 |
Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
Hastelloy C22 | 8.69 g/cm3 | 1399 °C (2550 °F) | Psi – 1,00,000 , MPa – 690 | Psi – 45000 , MPa – 310 | 45 % |
Grade | C | Mn | Si | S | Co | Ni | Cr | Fe | Mo | P |
C22 | 0.010 max | 0.50 max | 0.08 max | 0.02 max | 2.50 max | 50.015 min* | 20.00 – 22.50 | 2.00 – 6.00 | 12.50 – 14.50 | 0.02 max |
STANDARD | WERKSTOFF NR. | UNS | JIS | GOST | EN | OR |
Hastelloy C22 | 2.4602 | N06022 | NW 6022 | – | NiCr21Mo14W | – |
UNS: |
N06022 |
Specifications: |
ASTM B574 |
international Specifications: |
ISO 9723, ISO 9724, DIN 17752, DIN 17753 |
Alloy |
CPT*
(°C) |
CPT*
(°F) |
CCCT**
(°C) |
CCCT**
(°F) |
---|---|---|---|---|
Hastelloy C-22 | > 150 | > 302 | 102 | 212 |
