Incoloy 800 Plate
Supplier of Alloy 800H Sheet, Check ASTM B409 UNS N08800 Plate Dimensions, View Nickel 800HT Strips price per KG in India
Incoloy 800 plate is a nickel iron chromium alloy by means of decent resistance to corrosion, carburization at great heats and reasonable power. In power group re radiator and super radiator tubing has involved these Incoloy 800 Plates. In the same way if we talk about Alloy 800h Sheet so it is dual demonstrable Nickel Iron Chromium materials that fight corrosion, carburization and other extraordinary fever corrosion as well as stratospheres that substitute between plummeting and rusting.
Nickel 800ht Strip is a nickel iron chromium alloy which has many of the same features of other associates of the 800 alloy alliance. Incoloy 800HT has unevenly the same chemical composition as Incoloy 800H, the only main difference is marginally in carbon, aluminum, and titanium ranks. A decent way to comprehend the alteration between 800HT and 800H is that the chemical composition of Incoloy 800HT will always be within the restrictions of Incoloy 800H, but the opposite is not true. Nickel Alloy 800Ht Strip is also a characteristic of 800 alloy which is produced and developed in our Tarang Steel under the supervision of well qualified staff and we are famous or well known in all around the world for many of the same outstanding characteristics as Incoloy 800H.
Incoloy 800 Plate
Alloy 800h Sheet
Nickel 800ht Strip
Check Incoloy 800 Foil Dimension, View ASTM B409 Incoloy 800 Shim Sheet Price List, Call us to Get Available Sizes of Nickel Alloy 800Ht Strip.
Furthermore, ASME/ ASTM B409 UNS N08800 Coil is a faultless combo of nickel iron chromium alloy, and help great resistance to corrosion and carburization at highest fevers and reasonable powers. These coils are usually working in numerous heaters and super heater tubing due to their robust arrangement. On the other side, the coils also show up dangerous resistance to long-drawn-out contact, that too at the great heats.
Table of Content
- What is Incoloy 800 Plate?
- Specification Chart of Incoloy 800 Plate
- Types of Nickel 800 Plate
- Incoloy 800 Plate Price List
- Stockholder of Incoloy 800Ht Plate
- ASTM B409 UNS N08800 Plate Specific Heat
- Alloy 800H Sheet Mechanical Characteristics
- Nickel 800HT Plate Chemical Analysis
- ASTM B409 Incoloy 800 Equivalent Grades
- Properties in Different Condition of Incoloy 800 Plate
- Nickel 800 Plate Dimensions
- Size Chart of Incoloy Alloy 800 Plate
- 800 Incoloy Plate Stock List
- UNS N08800 Plate Weight Chart

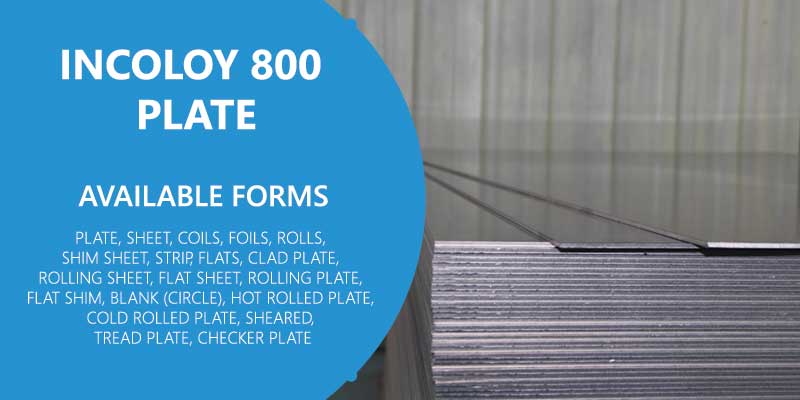

Incoloy 800 plate
Incoloy Alloy 800H Flat Plate is a nickel iron chromium alloy that is portion of the family of 800 series of alloy. Also recognized as Nickel Alloy 800H, Incoloy Alloy 800H Flat Plate has many of the features of the other 800 alloys which contains resistance to lengthy contact to raised temperatures.
| Incoloy 800Ht Plate Thickness | 0.3 to 1200 mm or as required |
|---|---|
| 800 Incoloy Plate Width | 0-2500mm or as required |
| ASTM B409 UNS N08800 Plate Process | Hot/ Cold Rolled |
| Incoloy 800 Plate Length | 0-12mm or as required |
| Incoloy alloy 800H Plate surface | No.1, No. 2D, No. 2B, BA, No.3, No.4, No.6, No.7, 2B, 2D, BA NO(8), Cold rolled sheet (CR), Hot rolled plate (HR), SATIN (Met with Plastic Coated), No.1 finish hot rolled Incoloy 800 Plate, 1D, 2B, No.4, BA, 8K, satin, hairline, brush, mirror etc. |
Other Relevant Information of Incoloy 800 Plate for buyers
| Incoloy 800 Plate, Sheet and Strip |
ASTM B 168/ASME SB 168, ASTM B 906/ASME SB 906, ASME Code Cases 1827 and N-253, SAE/AMS 5540, BS 3072NA14 and 3073NA14, DIN 17750, ISO 6208, EN 10095, MIL-DTL-23228. |
|---|---|
| Incoloy alloy 800H Plate Hardness | Soft, Hard, Half Hard, Quarter Hard, Spring Hard Incoloy 800 Sheet suppliers |
| Availability of Incoloy 800 Foil sizes |
Thickness : 8-100 microns (0.00031-0.004 in) Width: Up to 500 mm (19.5 in) Weight (in rolls) : Up to 50 kg (110 lb); e.g. approxi- mately 1400 m at 8 microns and ap- proximately 112 m at 100 microns. |
| Standard Incoloy 800 Plate & Sheet Sizes |
1000 x 2000 mm, 1220 x 2440 mm, 1500 x 3000 mm, 2000 x 2000 mm, 2000 x 4000 mm
|
| Packing of 800 Incoloy Sheet | Bundles with waterproof cloth outside or plywood box |
ASTM B409 UNS N08800 0.4mm thick x 1000mmx1000mm Plate
Inconel Alloy 800 Checker Plate
UNS N08800 Incoloy 800 Foil
ASTM B409 Alloy 800 Sheet
VdTüV 434 Perforated Sheet
7.92mm Incoloy 1.4876 Plate
EN 10028-7 Clad Plate
EN 10095 Hot Rolled Plate
Alloy Incoloy 800H Coil
UNS N08800 Incoloy 800 Chequered Plate
1.4876 Incoloy 800 Hot Rolled Plate
Incoloy 800 Nickel Alloy Cold Rolled Plate
Incoloy UNS N08800 0.4mm thick x 500mmx500mm Plate
Incoloy 800 Superalloy Mesh Plate
Alloy Incoloy 800H Strip Tape
ASTM B409 Alloy 800 Strip
800 Incoloy 0.5mm thick x 1000mmx2000mm Plate
Alloy Incoloy 800 Shim Stock
BS 3073NA15 Strip
ASTM B409 Alloy 800 Perforated Sheet
Incoloy 800 Din 1.4876 Cold Rolled Sheet
AMS 5877 Foil
UNS N08800 Plate
Alloy 800 Nickel Clad Plate
Incoloy 800HT Plate
ASTM B409 Sheet
DIN 17460 Chequered Plate
Incoloy 800HT Shim Sheet
ASME SB409 Incoloy 800 0.4mm thick x 250mmx250mm Plate
VdTüV 412 Shim Sheet
BS 3072NA15 Coil
Incoloy Alloy 800 0.5mm thick x 250mmx250mm Plate
Ready Stock of 800HT Incoloy Shim, Trader of Incoloy Alloy 800H Flat Plate, Importer of ASME SB409 Incoloy 800H Plate. Incoloy 800 Plate material dealer.
| Price of Incoloy 800 Plate | ASTM B443 Incoloy 800 Plate Price in India (INR) | Incoloy 800 UNS N08800 Plate Price in USD | Alloy 800 Plate Price in UAE Dirham |
|---|---|---|---|
| NI-CR-FE ALLOY STEEL PLATES CONF. TO SPECN. ASME SB409/SA240 (INCOLOY 800/800H/800HT) SIZE (MM) : 5 X 1205 X 5500 | INR 734 | $9.89 | 36.31 UAE Dirham |
| NI-FE-CR ALLOY STEEL PLATES CONF. TO SPEC. SB-409 UNS N08810 (INCOLOY-800H) SIZE (MM):3 X1250X6000 | INR 722 | $9.73 | 35.72 UAE Dirham |
| Incoloy 800 Chequered Plate | Incoloy 800Ht Quarto Plate |
| Nickel 800 Clad Plate | Incoloy 800Ht Tisco Plate |
| Nickel Alloy 800 Chequer Plate | Incoloy 800 ASTM B409 Tread Plate |
| Incoloy 800Ht Checker Plate | Incoloy alloy 800H Polished Plate |
| Incoloy 800 ASTM B409 Plate Mirror Finish | Nickel 800 Chequered Plate |
| Incoloy alloy 800H Plate Brushed Finish | Incoloy 800 Hot Rolled Sheet |
| Nickel 800 10mm Plate | Incoloy 800Ht Cold Rolled Sheet |
| Incoloy 800 1/4 Inch Plate | 800 Incoloy Perforated Sheet |
| 800 Incoloy Plate | ASTM B409 UNS N08800 Rolling Plate |
| Incoloy 800Ht Hot Rolled Plate | Incoloy alloy 800H Perforated Plate |
| ASTM B409 UNS N08800 Cold Rolled Plate | Alloy 800H Bbq Plate |
| Incoloy alloy 800H Plate 2b Finish | Nickel 800 Diamond Plate |
| Alloy 800H Plate Mill Finish | Nickel Alloy 800 Thin Plate |
| Incoloy 800Ht Custom Cut Plate | ASTM B409 UNS N08800 Sheet |
| 800 Incoloy Checkered Plate | Incoloy 800 Laser Cut Plate |
| ASTM B409 UNS N08800 Embossed Plate | 800 Incoloy Plasma Cutting Plate |
Manufacturer of Alloy Incoloy 800 Sheet, Incoloy 800H Steel Coil, high quality JIS NCF 825HT Plate, 1.4876 Incoloy 800 Foil stockist in Mumbai, India, check Incoloy Alloy 800 Strip Price in India.
|
Specific Heat of UNS N08800 Plate
|
|
460 J/kg•°C
|
| UNS: | N08800 |
| Specifications: | ASTM B409, AMS 5877 |
| international Specifications: | BS 3072NA15, BS 3073NA15, VdTüV 412 & 434, DIN 17460, EN 10028-7, EN 10095 |
Extensive Supplier of ASTM B409 UNS N08800 Plate
AMS 5877 Sheet
ASTM B409 Incoloy 800 Plate
Incoloy 800Ht Cold Rolled Plate
UNS N08800 Incoloy 800 Coil
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 800 / 800H / 800HT | 7.94 g/cm3 | 1385 °C (2525 °F) | Psi – 75,000 , MPa – 520 | Psi – 30,000 , MPa – 205 | 30 % |
| Grade | C | Mn | Si | S | Cu | Fe | Ni | Cr | Al | Ti |
| 800 | 0.10 max | 1.50 max | 1.00 max | 0.015 max | 0.75 max | 39.50 min | 30.00 – 35.00 | 19.00 – 23.00 | 0.15 – 0.60 | 0.15 – 0.60 |
| 800H | 0.05 – 0.10 | 1.50 max | 1.00 max | 0.015 max | 0.75 max | 39.50 min | 30.00 – 35.00 | 19.00 – 23.00 | 0.15 – 0.60 | 0.15 – 0.60 |
| 800HT | 0.06 – 0.10 | 1.50 max | 1.00 max | 0.015 max | 0.75 max | 39.50 min | 30.00 – 35.00 | 19.00 – 23.00 | 0.15 – 0.60? | 0.15 – 0.60? |
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN | OR |
| Incoloy 800 | 1.4876 | N08800 | NCF 800 | NA 15 | ЭИ670 | Z8NC32-21 | X10NiCrAlTi32-20 | XH32T |
| Incoloy 800H | 1.4958 / 1.4876 | N08810 | NCF 800H | NA 15(H) | ЭИ670 | Z8NC33-21 | X5NiCrAlTi31-20 | XH32T |
| Incoloy 800HT | 1.4859 / 1.4876 | N08811 | NCF 800HT | NA 15(HT) | ЭИ670 | – | X8NiCrAlTi32-21 | XH32T |
Mirror finish ASME SB409 Incoloy N08810 Cold Rolled Plate suppliers in India. Incoloy 800HT UNS N08811 Hot Rolled Plate importer in India, Special price for 800 Incoloy Strip Tape, Alloy 800H Incoloy Clad Plate wholesaler in Mumbai. 800HT Alloy Polished Plate and JIS NCF Incoloy 800H Plate manufacturers for gas turbine components.
| Alloy | Form | Condition |
Ultimate Tensile Strength, ksi (MPa) |
Yield Strength at 0.2% offset, ksi (MPa) |
Elongation in 2" or 4D, percent |
| 800 | Sheet, Plate | Annealed | 85 (586) | 40 (276) | 43 |
| 800 |
Sheet, Plate Strip, Bar |
Annealed | 75 (520)* | 30 (205)* | 30* |
| 800H | Sheet, Plate | SHT | 80 (552) | 35 (241) | 47 |
| 800H |
Sheet, Plate
Strip, Bar |
SHT | 65 (450)* | 25 (170)* | 30* |
Incoloy 800 Plate Imperial Dimensions
| Plate Surface finish | Gauge (in) | Width (max in) |
|---|---|---|
| 2B – Cold rolled, heat treated, pickled, skin passed Plate | 10–24 | 72* |
| 2D – Cold rolled, heat treated, pickled plate | 12–24 | 60 |
| BA Mexinox only | 18–28 | 48 |
| Polished plate (not brushed) | 11–24 | 60 |
| Temper rolled plate Mexinox only | 13–29 | 48 |
Alloy 800 Plate Metric Dimensions
| Plate Surface finish | Thickness (mm) | Width (max mm) |
|---|---|---|
| 2B – Cold rolled, heat treated, pickled, skin passed plate | 0.25–8.0 | 2032 |
| 2D – Cold rolled, heat treated, pickled plate | 0.4–6.35 | 1524 |
| 2E – Cold rolled, heat treated, mechanically descaled plate | 0.4–8.0 | 2032 |
| 2R – Cold rolled, bright annealed plate | 0.25–3.5 | 1524 |
| 2H – Work hardened plate | 0.4–6.35 | 1524 |
| Polished, brushed plate | 0.5–4.0 | 1524 |
|
Size (in inches)
|
Size (in mm)
|
|---|---|
|
.125"
|
3.18mm
|
|
.134"
|
3.40mm
|
|
.156"
|
3.96mm
|
|
.187"
|
4.75mm
|
|
.250"
|
6.35mm
|
|
.312"
|
7.92mm
|
|
.375"
|
9.53mm
|
|
.500"
|
12.7mm
|
|
.600"
|
15.9mm
|
|
.750"
|
19.1mm
|
|
.875"
|
22.2mm
|
|
1"
|
25.4mm
|
|
1.125"
|
28.6mm
|
|
1.250"
|
31.8mm
|
|
1.500"
|
38.1mm
|
|
1.750"
|
44.5mm
|
|
2"
|
50.8mm
|
|
2.500"
|
63.5mm
|
|
3"
|
76.2mm
|
| Alloy | Product form | Dimension |
|---|---|---|
| INCOLOY 800HT (32 Ni/21 Cr) | Sheet; cold rolled, annealed | 1.0x1220 mm x coil, 9.9 kg/m |
| INCOLOY 800H/HT (32 Ni/21 Cr) | Sheet; cold rolled, annealed, pickled | 3.0x1200x3000 mm, 85.8 kg/pc |
| ALLOY 800H (32 Ni/21 Cr) | Sheet; cold rolled, solution annealed | 3.0x1500x3000 mm, 109 kg/pc |
| ALLOY 800H/HT (32 Ni/21 Cr) | Plate; hot rolled, solution annealed, descaled, sheared | 4.0x1200x3000 mm, 118 kg/pc |
| ALLOY 800H/HT (32 Ni/21 Cr) | Plate; hot rolled, solution annealed, descaled, sheared | 5.0x2000x6000 mm, 530 kg/pc |
| ALLOY 800HT (32 Ni/21 Cr) | Plate; hot rolled, sol annealed, descaled, sheared | 6.0x2000x6000 mm, 590 kg/pc |
| ALLOY 800H/HT (32 Ni/21 Cr) | Plate; hot rolled, solution annealed, descaled, sheared | 12.0x2000x3000 mm, 576 kg/pc |
| INCOLOY 800H/HT (32 Ni/21Cr) | Plate; hot rolled, annealed, descaled | 15.0x2400x3000 mm, 884 kg/pc |
| Thickness | Alloy | Plate Weight per Unit Area | Density |
|---|---|---|---|
| 3/16 inches | Incoloy 800 | 0.06000 lbs/in²42.184176 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1/4 inches | Incoloy 800 | 0.08 lbs/in²56.245568 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 3/8 inches | Incoloy 800 | 0.121 lbs/in²85.0714216 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1/2 inches | Incoloy 800 | 0.161 lbs/in²113.1942056 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 5/8 inches | Incoloy 800 | 0.196 lbs/in²137.8016416 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 3/4 inches | Incoloy 800 | 0.235 lbs/in²165.221356 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 7/8 inches | Incoloy 800 | 0.274 lbs/in²192.6410704 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 inches | Incoloy 800 | 0.313 lbs/in²220.0607848 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 1/4 inches | Incoloy 800 | 0.391 lbs/in²274.9002136 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 1/2 inches | Incoloy 800 | 0.47 lbs/in²330.442712 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 3/4 inches | Incoloy 800 | 0.549 lbs/in²385.9852104 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 inches | Incoloy 800 | 0.627 lbs/in²440.8246392 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 1/4 inches | Incoloy 800 | 0.705 lbs/in²495.664068 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 1/2 inches | Incoloy 800 | 0.784 lbs/in²551.2065664 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 3/4 inches | Incoloy 800 | 0.862 lbs/in²606.0459952 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 3 inches | Incoloy 800 | 0.941 lbs/in²661.5884936 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
