Known to be one of the more heat resistant alloys, the Alloy 600 Blind Flange may be used with the intention of closing or shutting off a nozzle or a section of a pipe in a vessel, particularly in elevated temperature settings. By itself, nickel has great heat resistance properties, but when alloyed with other elements, it gains many properties, just like in the case of the Inconel 600 Flanges. Because the alloy has an attractive combination of good weldability along with high tensile strength under a broad spectrum of temperature conditions, the Inconel 600 Blind Flange is considered to be an asset to various industry sectors such as pulp and paper along with chemical and food processing industry.

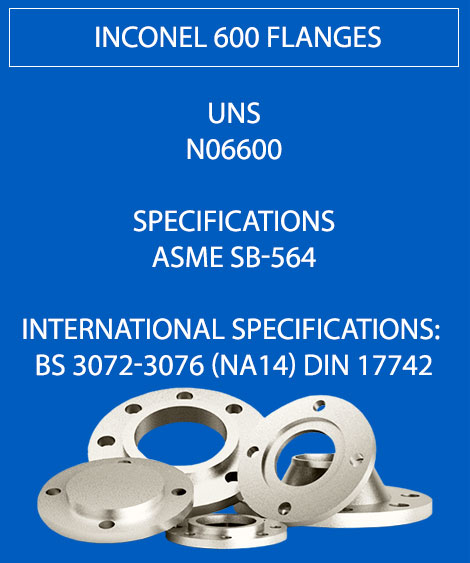

Inconel 600 Flanges
Alloy 600 Blind Flange
ANSI B16.5 Slip on Flange
Under reductive conditions, the Inconel 600 Slip on Flange demonstrates excellent resistance to not only inorganic compounds but also organic compounds along with alkali compounds as well. Therefore, if used in the paper industry, the ANSI B16.5 Slip on Flange has a good notable performance. Also, the Inconel 600 Weld Neck Flange has excellent immunity to chlorine ion stress corrosion cracking.

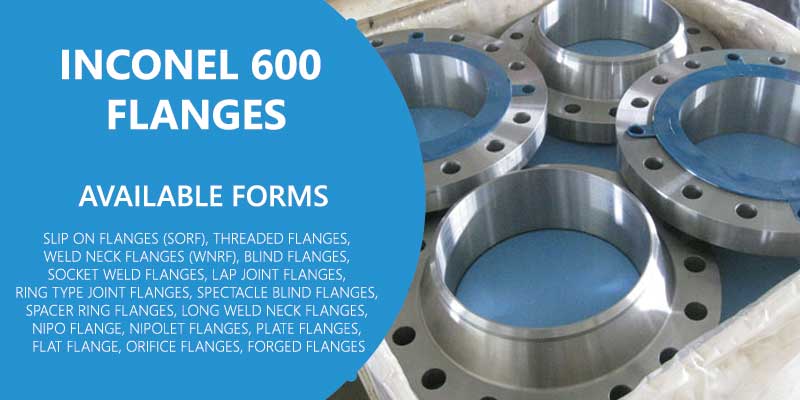

Inconel 600 Flanges
Since the Inconel 600 Lap Joint Flange is applied in industries which require frequent dismantling and is considered to be useful for large or hard-to-adjust flanges, they are well suited for use in Nuclear Engineering, airspace as well as a part of Gas turbine components.
Inconel 600 DIN 2.4816 Flange Size Chart | 1/2" (15 NB) to 48" (1200NB) DN10~DN5000 |
---|---|
ASTM B564 UNS N06600 SORF Flange Standards | ANSI/ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, GOST Flange, ASME/ANSI B16.5/16.36/16.47A/16.47B, MSS S44, ISO70051, JISB2220, BS1560-3.1, API7S-15, API7S-43, API605, EN1092 |
Nickel Alloy 600 Flange Pressure Rating ANSI | Class 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS |
Inconel 600 Flange Pressure Calculation in DIN | 6Bar 10Bar 16Bar 25Bar 40Bar / PN6 PN10 PN16 PN25 PN40, PN64 |
600 Inconel Flange JIS | 5K, 10 K, 16 K 20 K, 30 K, 40 K, 63 K |
Inconel 600 ASTM B564 Flange UNI | 6Bar 10Bar 16Bar 25Bar 40Bar |
Nickel 600 FlangeEN | 6Bar 10Bar 16Bar 25Bar 40Bar |
Coating | Oil Black Paint, Anti-rust Paint, Zinc Plated, Yellow Transparent, Cold and Hot Dip Galvanized |
Most common types of Inconel 600 UNS N06600 Flange | Forged / Threaded / Screwed / Plate |
Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
Inconel 600 Flange Production technique |
|
ASTM B564 UNS N06600 Flange Connect Type/ Flange Face Type | Raised Face (RF), Ring Type Joint (RTJ), Flat Face (FF), Large Male-Female (LMF), Lap-Joint Face (LJF), Small Male-Female (SMF), Small Tongue, Large Tongue & Groove, Groove |
Special design |
As per your drawing AS, ANSI, BS, DIN and JIS |
Nickel Alloy 600 Flange Test | Direct-reading Spectrograph, Hydrostatic testing machine, X-ray detector, UI trasonic flaw detector, Magnetic particle detector |
600 Inconel Flange Equipment | Press machine, Bending machine, Pushing Machine, electric bevelling machine, Sand-blasting machine etc |
Inconel 600 Flange Origin | Indian / West Europe / Japan / USA / Korean |
Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175 |
Nominal Size |
Outside Diameter (OD) |
Min. Thickness (T) |
RF Dia. (R) |
No. of Bolt Holes | Diameter of Holes |
Bolt Circle (BC) |
SO Bore ID (SB) |
WN Bore ID (WB) |
Dia. Hub Base (HB) |
Dia. of Hub Top (HT) |
SO LTH (SL) |
WN LTH (WL) |
---|---|---|---|---|---|---|---|---|---|---|---|---|
1⁄2 | 3.50 | 0.38 | 1.38 | 4 | 0.62 | 2.38 | 0.88 | 0.62 | 1.19 | 0.84 | 0.56 | 1.81 |
3⁄4 | 3.88 | 0.44 | 1.69 | 4 | 0.62 | 2.75 | 1.09 | 0.82 | 1.50 | 1.05 | 0.56 | 2.00 |
1 | 4.25 | 0.50 | 2.00 | 4 | 0.62 | 3.12 | 1.36 | 1.05 | 1.94 | 1.32 | 0.62 | 2.12 |
11⁄4 | 4.62 | 0.56 | 2.50 | 4 | 0.62 | 3.50 | 1.70 | 1.38 | 2.31 | 1.66 | 0.75 | 2.19 |
11⁄2 | 5.00 | 0.62 | 2.88 | 4 | 0.62 | 3.88 | 1.95 | 1.61 | 2.56 | 1.90 | 0.81 | 2.38 |
2 | 6.00 | 0.69 | 3.62 | 4 | 0.75 | 4.75 | 2.44 | 2.07 | 3.06 | 2.38 | 0.94 | 2.44 |
21⁄2 | 7.00 | 0.81 | 4.12 | 4 | 0.75 | 5.50 | 2.94 | 2.47 | 3.56 | 2.88 | 1.06 | 2.69 |
3 | 7.50 | 0.88 | 5.00 | 4 | 0.75 | 6.00 | 3.57 | 3.07 | 4.25 | 3.50 | 1.12 | 2.69 |
31⁄2 | 8.50 | 0.88 | 5.50 | 8 | 0.75 | 7.00 | 4.07 | 3.55 | 4.81 | 4.00 | 1.19 | 2.75 |
4 | 9.00 | 0.88 | 6.19 | 8 | 0.75 | 7.50 | 4.57 | 4.03 | 5.31 | 4.50 | 1.25 | 2.94 |
5 | 10.00 | 0.88 | 7.31 | 8 | 0.88 | 8.50 | 5.66 | 5.05 | 6.44 | 5.56 | 1.38 | 3.44 |
6 | 11.00 | 0.94 | 8.50 | 8 | 0.88 | 9.50 | 6.72 | 6.07 | 7.56 | 6.63 | 1.50 | 3.44 |
8 | 13.50 | 1.06 | 10.62 | 8 | 0.88 | 11.75 | 8.72 | 7.98 | 9.69 | 8.63 | 1.69 | 3.94 |
10 | 16.00 | 1.12 | 12.75 | 12 | 1.00 | 14.25 | 10.88 | 10.02 | 12.00 | 10.75 | 1.88 | 3.94 |
12 | 19.00 | 1.19 | 15.00 | 12 | 1.00 | 17.00 | 12.88 | 12.00 | 14.38 | 12.75 | 2.12 | 4.44 |
14 | 21.00 | 1.31 | 16.25 | 12 | 1.12 | 18.75 | 14.14 | 13.25 | 15.75 | 14.00 | 2.19 | 4.94 |
16 | 23.50 | 1.38 | 18.50 | 16 | 1.12 | 21.25 | 16.16 | 15.25 | 18.00 | 16.00 | 2.44 | 4.94 |
18 | 25.00 | 1.50 | 21.00 | 16 | 1.25 | 22.75 | 18.18 | 17.25 | 19.88 | 18.00 | 2.62 | 5.44 |
20 | 27.50 | 1.62 | 23.00 | 20 | 1.25 | 25.00 | 20.20 | 19.25 | 22.00 | 20.00 | 2.81 | 5.62 |
22 | 29.50 | 1.75 | 25.25 | 20 | 1.38 | 27.25 | 22.22 | 21.25 | 24.25 | 22.00 | 3.07 | 5.82 |
24 | 32.00 | 1.81 | 27.25 | 20 | 1.38 | 29.50 | 24.25 | 23.25 | 26.12 | 24.00 | 3.19 | 5.94 |
Price of Inconel 600 Flanges | Nickel 600 Flange Price in India (INR) | Nickel 600 Flange Price in USD | Nickel 600 Flange Price in UAE Dirham |
---|---|---|---|
BLIND FLANGE 2 150# RF ASME B16.5 50-150RF-INCONEL 600 | INR 18,583 | $248.01 | 910.92 UAE Dirham |
FLANGES - INCONEL FLANGES (INC.825) 2 WN 600 RF SCH XXS | INR 1,436 | $19.16 | 70.39 UAE Dirham |
ALLOY 600 1300# SM.GRV.WN SCH80(NICKEL ALLOYS)SB564 UNS N06600 INCONEL FORGED FLANGE ASME B16.5 DN25 | INR 20,832 | $278.02 | 1021.16 UAE Dirham |
INCONEL ALLOY 600 FLANGE ASME SB564 UNS N06600 ASME B16.5 2NB SCH 40 | INR 31,922 | $426.03 | 1564.78 UAE Dirham |
Inconel 600 DIN 2.4816 Flange | Inconel 600 Blind Flange |
ASTM B564 UNS N06600 Slip on Flange | Inconel 600 ASTM B564 Threaded Flange |
Inconel 600 DIN 2.4816 Reducing Flange | Alloy 600 Socket Weld Flange |
Inconel 600 ASTM B564 Weld Neck Flanges | Inconel 600 Lap Joint Flanges |
600 Inconel Long Weld Neck Flanges | Inconel 600 DIN 2.4816 Spectacle Blind Flanges |
Inconel 600 ASTM B564 Spades & Ring Spacers | Alloy 600 Nipoflange |
Inconel 600 5D Weldoflange | Inconel alloy 600 Flange Outlet |
Inconel 600 DIN 2.4816 Forged Flanges | Nickel 600 Plate Flange |
Inconel 600 DIN 2.4816 Ring Type Joint Flanges | Alloy 600 Raised Face Flanges |
Inconel 600 Tongue and Groove Flanges | Nickel 600 Male and Female Flange |
Inconel 600 ASTM B564 Reducing Flanges | Inconel 600 DIN 2.4816 ASME B16.5 Flanges |
Inconel alloy 600 Flanges | ASTM B564 UNS N06600 BS 10 Flanges |
Inconel 600 BS 4504 Flanges | Alloy 600 EN 1092-1 Flanges |
600 Inconel SORF Flange | Inconel 600 DIN 2.4816 BLRF Flange |
Inconel alloy 600 WNRF Flange | ASTM B564 UNS N06600 RTJ Flange |
Inconel 600 Series a Lap Joint Ring Flange | Alloy 600 Class 300 threaded flange |
Inconel 600 DIN 2.4816 PN16 blind flange | Nickel Alloy 600 Forged Socket Weld Pipe Flange |
Inconel 600 Class 300 slip on flange | Inconel 600 ASTM B564 Slip On Weld Flange |
ASTM B564 UNS N06600 Forged steel slip on flanges | ASTM B564 UNS N06600 Race face slip on flange |
Inconel alloy 600 SWRF Flange | Nickel Alloy 600 Forged blind flange |
Inconel 600 groove weld neck flange | 600 Inconel Socket Weld Hub Flange |
Inconel alloy 600 threaded lap joint flange | Nickel Alloy 600 Slip On Integral flange |
Inconel 600 Forged integral puddle flange | ASTM B564 UNS N06600 table e long weld neck |
Inconel 600 DIN 2.4816 Class 150 LBS Flange | Nickel 600 PN10 Forged Flanges |
Inconel 600 RTJ Flanges | Inconel 600 ASTM B564 PN10 Plate Flanges |
Inconel 600 DIN 2.4816 Tongue & Groove Flanges | Inconel 600 Reducing Flanges |
ASTM B564 UNS N06600 Class 150 reducing threaded flange | ASTM B564 UNS N06600 Class 150 Pipe Flange |
600 Inconel Class 150 Flange | Nickel Alloy 600 Pipe Flanges |
Inconel 600 DIN 2.4816 BS 10 Flanges | Inconel 600 UNS N06600 Class 150 Tongue & Groove Flanges |
ASTM B564 UNS N06600 BS 4504 pn16 flange | Inconel 600 DIN 2.4816 EN 1092-1 flat flange |
Nickel Alloy 600 Raised Face Flanges | 600 Inconel Flat Faced Plate Flanges |
Alloy 600 Bleed Rings | Inconel 600 DIN 2.4816 Class 150 Weldoflange |
ASTM B564 UNS N06600 Class 150 LBS Nipo Flange | Inconel 600 DIN 2.4816 Long Weld Neck Flanges |
600 Inconel Lap Joint Pipe Flanges | 600 Inconel PN16 Screwed Flanges |
UNS: |
N06600 |
Specifications: |
ASME SB-564 |
international Specifications: |
BS 3072-3076 (NA14) DIN 17742, DIN 17750, DIN 17754 WERKSTOFF Nr 2.4816 TÜV 305 AFNOR-NC 15 Fe |
STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
Inconel 600 | 2.4816 | N06600 | NCF 600 | NA 13 | МНЖМц 28-2,5-1,5 | NC15FE11M | NiCr15Fe |
Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
Inconel 600 | 8.47 g/cm3 | 1413 °C (2580 °F) | Psi – 95,000 , MPa – 655 | Psi – 45,000 , MPa – 310 | 40 % |
Grade | C | Mn | Si | S | Cu | Fe | Ni | Cr |
Inconel 600 | 0.15 max | 1.00 max | 0.50 max | 0.015max | 0.50 max | 6.00 – 10.00 | 72.00 min | 14.00 – 17.00 |
Standard |
Class |
Diameter |
Bolt Circle Diameter |
Number of Bolts |
Bolt Size |
Diameter of Bolt Hole |
---|---|---|---|---|---|---|
AS4087 Flanges |
PN14 Flanges |
95 |
67 |
4 |
M12 |
14 |
AS 2129 Flange
|
Table C Flanges |
95 |
67 |
4 |
13 |
14 |
Table D Flanges |
95 |
67 |
4 |
13 |
14 |
|
Table E Flanges |
95 |
67 |
4 |
13 |
14 |
|
Table F Flanges |
95 |
67 |
4 |
13 |
14 |
|
Table H Flanges |
114 |
83 |
4 |
16 |
17 |
|
Table J Flanges |
114 |
83 |
4 |
16 |
17 |
|
ANSI B16.5 Flanges
|
ANSI 150 Flanges |
89 |
60 |
4 |
13 |
16 |
ANSI 300 Flanges |
95 |
67 |
4 |
13 |
16 |
|
ANSI 600 Flanges |
95 |
67 |
4 |
13 |
16 |
|
ANSI 900 Flanges |
121 |
83 |
4 |
19 |
22 |
|
ANSI 1500 Flanges |
121 |
83 |
4 |
19 |
22 |
|
ISO 7005 (DIN) Flange
|
PN6 Flanges |
80 |
55 |
4 |
M10 |
11 |
PN10 Flanges |
95 |
65 |
4 |
M12 |
14 |
|
PN16 Flanges |
95 |
65 |
4 |
M12 |
14 |
|
PN20 Flanges |
90 |
60.5 |
4 |
M14 |
16 |
|
PN25 Flanges |
95 |
65 |
4 |
M12 |
14 |
|
PN40 Flanges |
95 |
65 |
4 |
M12 |
14 |
Temp. | Working Pressures by Classes | |
Class 600 | Class 900 | |
-29 to 38 | 103.4 | 155.1 |
50 | 103.4 | 155.1 |
100 | 103.0 | 154.6 |
150 | 100.3 | 150.6 |
200 | 96.7 | 145.0 |
250 | 92.7 | 139.0 |
300 | 85.7 | 128.6 |
325 | 82.6 | 124.0 |
350 | 80.4 | 120.7 |
375 | 77.6 | 116.5 |
400 | 73.3 | 109.8 |
425 | 70.0 | 105.1 |
450 | 67.7 | 101.4 |
475 | 63.4 | 95.1 |
500 | 56.5 | 84.7 |
538 | 50.0 | 75.2 |
550 | 49.8 | 74.8 |
575 | 47.9 | 71.8 |
600 | 42.9 | 64.2 |
625 | 36.6 | 54.9 |
650 | 28.1 | 42.2 |
675 | 23.0 | 34.6 |
700 | 17.5 | 26.3 |
AMERICAN SOCIETY OF MECHANICAL ENGINEERS (ASME) |
|
---|
