The astm b366 is a specification which covers wrought welding astm b366 wp20cb fittings. These fittings include threaded fittings such as the astm b366 wp20cb elbow, produced from either nickel or nickel alloys. Typically the wp20cb buttweld fittings produced under this specification have been designed for use in pressure piping related applications.

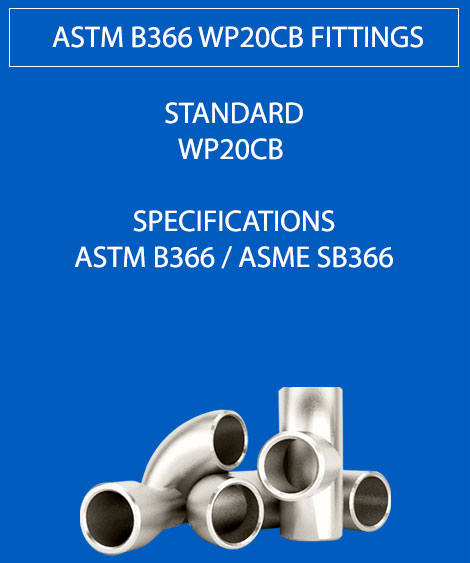

ASTM B366 WP20CB Fittings
ASME SB366 WP20CB Reducer
B366 WP20CB Elbow
The term welding refers to butt welded or socket-welded parts such as elbows, bends, b366 grade wp20cb pipe cap, in addition to tees, reducers, lap joints, as well as stub ends. However, this specification cannot be applied to cast welded fittings. Grades of nickel and nickel alloys used to make the b366 wp20cb stub end included in this specification are usually designated with a prefix. Usually, the prefix could be a WP or CR as in the case of asme sb366 wp20cb pipe fittings. But the prefix tends to be based on dimensional and rating standards.
In the case of WP grades like the asme sb366 wp20cb reducer, these grades have class designations say Class S, Class W, Class WX, and Class WU. These class designations indicate whether the construction of the fitting is either seamless or welded and they also indicate the nondestructive test method to be used. Moreover, the specification also mentions the extent of nondestructive examination such as radiography and/or ultrasonic test to be carried out.
ASTM B366 grade WP20CB Pipe Fittings size | ASTM B366 WP20CB Seamless Butt Weld Fittings: 1/2" - 10" B366 WP20CB Welded Butt Weld Fittings: 1/2" - 48" |
---|---|
ASME SB366 WP20CB Pipe Fittings Dimensions | ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, BS4504, BS4504, BS1560, BS10 |
ASME SB366 grade WP20CB Fittings Thickness | SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS available with NACE MR 01-75 |
ASTM B366 WP20CB Pipe fittings Types |
|
ASTM B366 WP20CB FittingsType | DN15-DN1200 |
SB366 WP20CB Buttweld Fitting Connection | Welding |
Bending Radius | R= 2D, 6D, 1D, 5D, 8D, 3D, 10D or Custom SB366 grade WP20CB Pipe Fitting |
Size Range | ½" NB to 24" NB in Sch 10s, 40s, 80s, 160s, XXS. (DN6~DN100) WP20CB Buttweld Fitting |
B366 WP20CB Elbows | Angle : 22.5 deg, 30deg, 45 deg, 90 deg, 180 deg, 1.0D, 1.5D, 2.0D, 2.5D, 3D, 4D, 5D, 6D, 7D-40D . Standard: ASME B16.9, ASME B16.28, ASME B16.25, MSS SP-75 DIN2605 JISB2311 JISB2312 JISB2313, BS, GB, ISO |
ASTM B366 WP20CB Fittings Manufacturing process | Push, Press, Forge, Cast, etc. |
ASTM B366 WP20CB Buttweld Pipe Fittings Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
We provide Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175 |
Nominal Pipe Size | Outside diameterat bevel | Center-to-End | |
---|---|---|---|
Run (C) | Outlet(M) | ||
1/2″ | 21.3 | 25 | 25 |
3/4″ | 26.7 | 29 | 29 |
1″ | 33.4 | 38 | 38 |
1 1/4″ | 42.2 | 48 | 48 |
1 1/2″ | 48.3 | 57 | 57 |
2″ | 60.3 | 64 | 64 |
2 1/2″ | 73.0 | 76 | 76 |
3″ | 88.9 | 86 | 86 |
3 1/2″ | 101.6 | 95 | 95 |
4″ | 114.3 | 105 | 105 |
5″ | 141.3 | 124 | 124 |
6″ | 168.3 | 143 | 143 |
8″ | 219.1 | 178 | 178 |
10″ | 273.0 | 216 | 216 |
12″ | 323.8 | 254 | 254 |
14″ | 355.6 | 279 | 279 |
16″ | 406.4 | 305 | 305 |
18″ | 457.0 | 343 | 343 |
20″ | 508.0 | 381 | 381 |
22″ | 559.0 | 419 | 419 |
24″ | 610.0 | 432 | 432 |
B366 Fittings | ASTM B366 Pipe Fitting |
SB366 grade WP20CB 90 Degree Elbow | WP20CB End Cap |
ASME SB366 45 Degree Elbow | SB366 Buttweld Fitting |
ASME SB366 grade 1D Elbow | B366 grade Short Stub End |
SB366 WP20CB Stub End | B366 WP20CB Pipe Cap |
ASTM B366 grade WP20CB 3D Elbow | B366 End Cap |
ASTM B366 WP20CB 5D Elbow | B366 Reducer |
Fittings Types | 90º LRs, 90º SRs, 45º Elbows, Concentric Reducers, Eccentric Reducers, Tees, Reducing Tees and Stub Ends Fittings |
Sizes | 1/2" – 12" |
Schedules | Sch 10S - 80S |
