The Nickel 200 round bar illustrates good resistance to corrosion in acids and alkalis. In fact, the performance of these Nickel Alloy 200 Bars tends to be most useful under reductive compounds containing conditions.

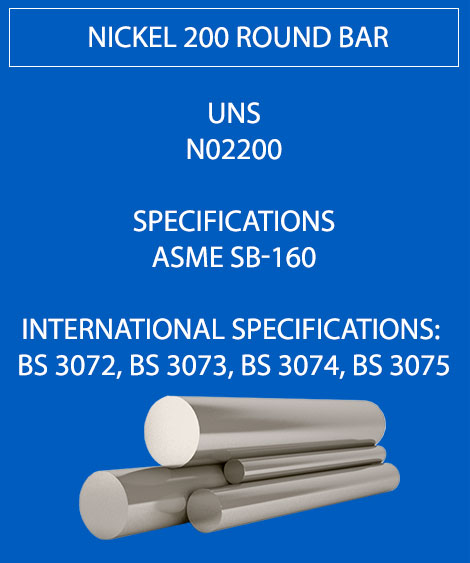

Nickel 200 Round Bar
Alloy 200 Rod
Pure Nickel 200 Hex Bar
Besides having outstanding resistance to caustic alkalis in the molten state, the Alloy 200 Flat Bar has the ability to withstand high temperature applications. In acid, alkaline and neutral salt containing solutions the Alloy 200 Round Bar shows good resistance. However, it is important to note that in oxidizing salt solutions, the Nickel 200 Bar will be prone to severe attack. The alloy shows resistance to corrosion against all dry gases at room temperature The Pure Nickel 200 Hex Bar has the ability to resist dry chlorine and hydrogen chloride as well. Moreover, nickel 200 could be used in temperatures up to 550C, as it can withstand elevated temperatures without losing its mechanical properties.
All the same, its resistance to mineral acids can vary, depending upon both the temperature and concentration or if the solution has been aerated or not. The corrosion resistance of the Alloy 200 Rod tends to be much better in de-aerated acid.
Grade | Nickel 200 – UNS N02200 |
---|---|
Specification | ASTM B160 UNS N02200 |
Nickel 200 Round bar size | Diameter: 3mm~800mm |
Width: 10mm~500mm | |
Nickel 200 Hex Bar size | 2mm~100mm |
Nickel 200 Billet Size | 1/2" to 495mm Diameter |
Nickel 200 Rectangles Size | 33mm x 30mm to 295mm x 1066mm |
LENGTHS | 12 RANDOM LENGTHS AND LONG BARS:15 20 RANDOM LENGTHS |
Nickel 200 Angle bar size | 3mm*20mm*20mm~12mm*100mm*100mm |
Nickel 200 Square bar size | 4mm*4mm~100mm*100mm |
Nickel 200 Flat bar size | Thickness: 2mm~100mm |
Finish | Bright, Polish, Bright, Rough Turned, Grinding, Centreless Ground & Black |
Tolerance | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
Surface | Hot Rolled Pickled or Sand Blasting Finished, Cold Drawn, Bright, Polished, Hairline |
Condition | Cold Drawnd Pulished Cold Drawn Centreless Ground & Polished, Annealed round bar |
Technique | Nickel 200 Hot Rolled, Cold Rolled, Cold Drawn, Forged Round Bar, Rod |
Our Nickel 200 round bar conforms to NACE MR0175/ISO 15156 |
Round Bar | ||||||||
---|---|---|---|---|---|---|---|---|
Size | Kgs / Foot | Kgs / Mtr | Size | Kgs / Foot | Kgs / Mtr | Size | Kgs / Foot | Kgs / Mtr |
3mm | 0.017 | 0.055 | 20mm | 0.753 | 2.470 | 3" | 10.900 | 35.762 |
1/8" | 0.019 | 0.062 | 22mm | 0.908 | 2.979 | 3-1/4" | 12.800 | 41.996 |
5/32" | 0.029 | 0.095 | 7/8" | 0.926 | 3.038 | 3-1/2" | 14.850 | 48.772 |
4mm | 0.030 | 0.098 | 24mm | 1.080 | 3.543 | 3-3/4" | 17.001 | 55.780 |
3/16" | 0.043 | 0.141 | 25mm | 1.180 | 3.871 | 4" | 19.306 | 63.340 |
5mm | 0.047 | 0.154 | 1" | 1.210 | 3.970 | 4-1/4" | 21.908 | 72.249 |
7/32" | 0.058 | 0.190 | 26mm | 1.271 | 4.170 | 4-1/2" | 24.4487 | 80.340 |
6mm | 0.068 | 0.223 | 27mm | 1.368 | 4.490 | 4-3/4" | 27.366 | 90.249 |
1/4" | 0.076 | 0.249 | 1-1/8" | 1.534 | 5.033 | 5" | 30.461 | 99.940 |
7mm | 0.091 | 0.298 | 30mm | 1.691 | 5.548 | 5-1/2" | 36.690 | 121.000 |
5/16" | 0.118 | 0.387 | 1-1/4" | 1.924 | 6.349 | 6" | 43.860 | 143.900 |
8mm | 0.120 | 0.398 | 32mm | 1.894 | 6.314 | 6-1/2" | 51.093 | 167.630 |
9mm | 0.152 | 0.498 | 1-3/8" | 2.303 | 7.550 | 7" | 59.432 | 196.000 |
3/8" | 0.170 | 0.557 | 35mm | 2.390 | 7.553 | 7-1/2" | 68.226 | 225.000 |
10mm | 0.189 | 0.620 | 36mm | 2.438 | 7.999 | 8" | 77.586 | 254.55 |
11mm | 0.228 | 0.748 | 38mm | 2.792 | 8.903 | 10" | 121.048 | 397.140 |
7/16" | 0.232 | 0.761 | 1-1/2" | 2.715 | 8.951 | |||
12mm | 0.271 | 0.889 | 40mm | 3.009 | 9.872 | |||
1/2" | 0.303 | 0.994 | 1-5/8" | 3.200 | 10.449 | |||
13mm | 0.318 | 1.043 | 1-3/4" | 3.712 | 12.179 | |||
14mm | 0.368 | 1.207 | 45mm | 3.807 | 12.555 | |||
9/16" | 0.383 | 1.256 | 1-7/8" | 4.260 | 13.977 | |||
15mm | 0.424 | 1.391 | 48mm | 4.330 | 14.205 | |||
5/8" | 0.473 | 1.551 | 50mm | 4.698 | 15.414 | |||
16mm | 0.481 | 1.578 | 2" | 4.848 | 15.906 | |||
17mm | 0.543 | 1.791 | 2-1/8" | 5.475 | 17.963 | |||
11/16" | 0.573 | 1.880 | 2-1/4" | 6.135 | 20.128 | |||
18mm | 0.610 | 2.001 | 60mm | 6.768 | 22.205 | |||
3/4" | 0.682 | 2.237 | 2-3/8" | 6.838 | 22.435 | |||
2-1/2" | 7.576 | 24.856 | ||||||
2-5/8" | 8.354 | 27.409 | ||||||
2-3/4" | 9.169 | 30.083 |
Nickel 200 Round Bar | Alloy 200 Nickel Flat Bar |
Nickel Alloy 200 Bar | Nickel 200 UNS N02200 Flat Bar Black |
Din 2.4066 Rounds | 200 Nickel Flat Bar Bright |
Nickel 200 UNS N02200 Bright Bar | ASTM B160 UNS N02200 Flat Bar Polished |
Alloy 200 Nickel Rods | Nickel Alloy 200 Flat Bar Cold Drawn |
Din 2.4066 Square Bar Cold Drawn | Nickel Alloy 200 Bright Bar material |
200 Nickel Rod | Nickel 200 Flat Bar Annealed |
ASTM B160 UNS N02200 Round Bars | Nickel Alloy 200 Flat Bar stock |
Alloy 200 Hex Bar | Din 2.4066 Threaded Bar |
Nickel Alloy 200 Square Bar Polished | Nickel 200 Bright Bar Hot Rolled |
ASTM B160 200 Nickel Hex Bar Bright | Alloy 200 Nickel Hollow Bar |
UNS N02200 Rectangular Bar Annealed | Nickel 200 UNS N02200 Polished Hex Bar |
Nickel 200 Hex Bar Polished | 200 Nickel Hexagonal Bar |
ASTM B160 200 Nickel Rectangular Bar | Alloy 200 Threaded Bar Black |
Nickel 200 UNS N02200 Hex Bar Annealed | Alloy 200 Cold Drawn Round Bar |
200 Nickel Forged Bar | UNS N02200 Polished Bar |
Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
Nickel 200 | 8.9 g/cm3 | 1446 °C (2635 °F) | Psi – 67000 , MPa – 462 | Psi – 21500 , MPa – 148 | 45 % |
Grade | C | Mn | Si | S | Cu | Fe | Ni |
Nickel 200 | 0.15 max | 0.35 max | 0.35 max | 0.01 max | 0.25 max | 0.40 max | 99.0 min |
STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
Nickel 200 | 2.4066 | N02200 | NW 2200 | NA 11 | ??-2 | N-100M | Ni 99.2 |
UNS: |
N02200 |
Specifications: |
ASME SB-160 |
international Specifications: |
BS 3072, BS 3073, BS 3074, BS 3075, BS 3076, NA11 DIN 17740, 17750, 17751, 17752, 17753, 17754 Werkstoff Nr. 2.4060, 2.4066 |
Nickel Alloy 200 Ann- Round * CG - Centerless Ground HR RT - Hot Rolled Rough Turned |
3/16 CG Alloy 200 Bar 1/4 CG Alloy 200 Bar 5/16 CG Alloy 200 Bar 3/8 CG Alloy 200 Bar 1/2 CG Alloy 200 Bar 5/8 CG Alloy 200 Bar 3/4 CG Alloy 200 Bar 13/16 CG Alloy 200 Bar 7/8 CG Alloy 200 Bar 1 CG Alloy 200 Bar 1-1/8 CG Alloy 200 Bar 1-1/4 CG Alloy 200 Bar 1-3/8 CG Alloy 200 Bar 1-1/2 CG Alloy 200 Bar 1-3/4 CG Alloy 200 Bar |
2 CG Alloy 200 Bar 2-1/4 CG Alloy 200 Bar 2-1/2 CG Alloy 200 Bar 2-3/4 CG Alloy 200 Bar 3 CG Alloy 200 Bar 3-1/4 CG Alloy 200 Bar 3-1/2 CG Alloy 200 Bar 4 HR RT Alloy 200 Bar 4-1/2 HR RT Alloy 200 Bar 5 HR RT Alloy 200 Bar 6 HR RT Alloy 200 Bar 7 HR RT Alloy 200 Bar 8 HR RT Alloy 200 Bar 9 HR RT Alloy 200 Bar 10 HR RT Alloy 200 Bar |
