As a metal, commercially pure nickel is hard and has properties such as malleability and ductility. The Nickel seamless tube a ferromagnetic alloy to an extent of temperature up to 360 °C.

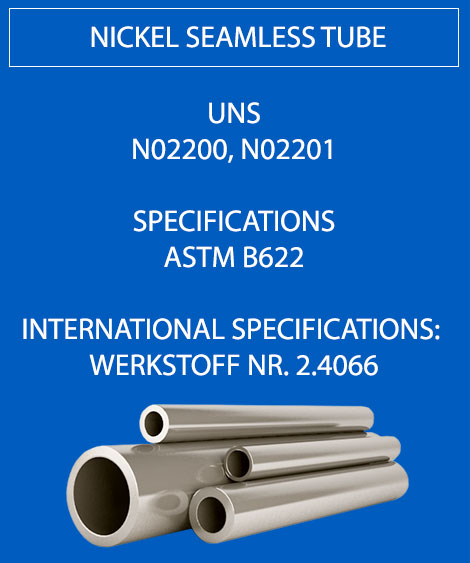

Nickel seamless tube
Nickel Alloy Tubing
Pure Nickel Cold Drawn Tube
In comparison to copper, the electrical conductivity of the Nickel Heat Exchanger Tube about 25% more. Commercially pure nickel pipes are considered to be a good conductor of heat. Pure Nickel Tubing is highly resistant to atmospheric corrosion. Moreover, the alloy tends to resist most acids albeit the Nickel Alloy Round Tube is susceptible to attack in the presence of oxidizing acids such as nitric acid.
Nickel being a very versatile metal is incredibly easy to alloy with maximum metals. Due to its corrosion resistance properties, Nickel Alloy Tube is used to keep product purity, especially in key industrial sectors such as the processing of food & beverage along with synthetic fibres. The Pure Nickel Cold Drawn Tube far exceptionally resistant against numerous reducing chemicals. The Nickel Alloy Tubing is unexcelled in terms of its resistance to caustic alkalies.
Nickel Tubing Standards | ASTM B163/ ASME SB163, ASTM B725/ ASME SB725 |
---|---|
Nickel Seamless Tube Size | 3.35 mm OD To 101.6 mm OD |
Marking | All Nickel Tubing are marked as follows: Standard, Grade, OD, Thickness, Length, Heat No. (Or according to the customer’s request.) |
Nickel Steel Tubing Length | Single Random, Double Random, Standard & Cut length Tube |
Nickel Steel Tubing Finish | Polished, AP (Annealed & Pickled), BA (Bright & Annealed), MF |
Value Added Service | Draw & Expansion as per required Size & Length, Polish (Electro & Commercial) Annealed & Pickled Bending, Machining Etc. |
Specialize in | Nickel Capillary Tube & Other Odd Size Pure Nickel Alloy Heat Exchanger & Condenser Tube |
Form | ‘U’ bent, Hollow, Hydraulic, LSAW, Boiler, Straight Tube, Tube Coil, Round, Rectangular, Square Etc |
Types of Pure Nickel Tubing | Seamless, ERW, EFW, Welded, Fabricated Tube / Tubing |
Nickel Steel Tube wall thickness | 0.020" –0.220", (special wall thicknesses available) |
Pure Nickel Tube End | Plain End, Beveled End, Treaded Tube |
Nickel Welded Tube Size | 6.35 mm OD To 152 mm OD |
Pure Nickel Alloy Tubing Swg & Bwg | 10 Swg., 12 Swg., 14 Swg., 16 Swg., 18 Swg., 20 Swg. |
Application & uses of Nickel seamless tube | Oil Tube, Gas Tube, Fluid Tube, Boiler Tube, Heat exchanger Tube, |
Test Certificate | Manufacturer Test Certificate Laboratory Test Certificate from Govt. Approved Lab. Under Third Party Inspection |
Manufacturers of Nickel seamless tube |
|
We can also cut, thread, and groove Pure Nickel Alloy Tube to meet your specifications. Nickel seamless tube Dimension ANSI/ ASME B36.10, B36.19, B2.1 |
Wall | Sizes ( O.D.) |
---|---|
.010 | 1/16″ , 1/8″ , 3/16″ |
.020 | 1/16″ , 1/8″ , 3/16″ , 1/4″ , 5/16″ , 3/8″ |
.012 | 1/8″ |
.016 | 1/8″ , 3/16″ |
.028 | 1/8″ , 3/16″ , 1/4″ , 5/16″ , 3/8″ , 1/2″ , 3/4″ , 1″ , 1 1/2″ , 2″ |
.035 | 1/8″ , 3/16″ , 1/4″ , 5/16″ , 3/8″ , 7/16″ , 1/2″ , 16″ , 5/8″ , 3/4″ , 7/8″ , 1″ , 1 1/4″ , 1 1/2″ , 1 5/8″ , 2″ , 2 1/4″ |
.049 | 3/16″ , 1/4″ , 5/16″ , 3/8″ , 1/2″ , 16″ , 5/8″ , 3/4″ , 7/8″ , 1″ , 1 1/8″ , 1 1/4″ , 1 1/2″ , 1 5/8″ , 2″ , 2 1/4″ |
.065 | 1/4″ , 5/16″ , 3/8″ , 1/2″ , 16″ , 5/8″ , 3/4″ , 7/8″ , 1″ , 1 1/4″ , 1 1/2″ , 1 5/8″ , 1 3/4″ , 2″ , 2 1/2″ , 3″ |
.083 | 1/4″ , 3/8″ , 1/2″ , 5/8″ , 3/4″ , 7/8″ , 1″ , 1 1/4″ , 1 1/2″ , 1 5/8″ , 1 7/8″ , 2″ , 2 1/2″ ,3″ |
.095 | 1/2″ , 5/8″ , 1″ , 1 1/4″ , 1 1/2″ , 2″ |
.109 | 1/2″ , 3/4″ , 1″ , 1 1/4″ , 1 1/2″ , 2″ |
.120 | 1/2″ , 5/8″ , 3/4″ , 7/8″ , 1″ , 1 1/4″ , 1 1/2″ , 2″ , 2 1/4″ , 2 1/2″ , 3″ |
.125 | 3/4″ , 1″ , 1 1/4″ , 1 1/2″ , 2″ , 3″ , 3 1/4″ |
.134 | 1″ |
.250 | 3″ |
.375 | 3 1/2″ |
Nickel Steel Electropolished Tubing | Nickel Alloy Rectangular Tube |
Pure Nickel Square Tubing | Pure Nickel Alloy Polished Tube |
Pure Nickel Tubing | Nickel Alloy Fabricated Tube |
Nickel Alloy Seamless Tube | Nickel Steel 12mm Tube |
Nickel Welded Tube | Nickel Steel Seamless Tubing |
Pure Nickel Alloy High Pressure Tube | Pure Nickel Alloy Thin Wall Tubing |
Pure Nickel Electropolished Tubes | Nickel Steel Cold Drawn Seamless Tube |
Nickel Hydraulic Tubing | Pure Nickel Alloy Coiled Tube |
Nickel Alloy ERW Tube | Nickel Electropolished Tube |
Nickel Alloy Rectangular Tubing | Pure Nickel CDW Tube |
Nickel Steel Electropolish Tube | Nickel Capillary Tubing |
Nickel Small Diameter Tubing | Nickel Steel ERW Tubing |
Pure Nickel Alloy High Pressure Tubing | Pure Nickel High Pressure Tube |
Nickel Tubing | Pure Nickel Instrumentation tube |
Nickel Alloy Tube | Pure Nickel Round Tube |
Nickel EFW Tube | Pure Nickel Alloy Finned Tube |
Surface Finish | Internal Surface(ID) | Exterbal Surface(OD) | |||
Roughness Average(RA) | Roughness Average(RA) | ||||
μ inch | μm | μ inch | μm | ||
EP | Electro Polish | 15,10,7,5 | 0.38,0.25,0.20;0.13 | 32 | 0.8 |
BA | Beight Annealed | 40,32,25,20 | 1.0,0.8,0.6,0.5 | 32 | 0.8 |
AP | Annealed & Pickled | Not defined | Not defined | 40 or Not defined | 1.0 or Not defined |
MP | Mechanical Polish | 40,32,25,20 | 1.0,0.8,0.6,0.5 | 32 | 0.8 |
Nickel 200 | Ni | C | Mo | Mn | Si | Fe | P | S | Cu | Cr |
99.0 Min | 0.15 Max | – | 0.35 Max | 0.1 Max | 0.4 Max | – | 0.01 Max | 0.25 Max | – | |
Nickel 201 | Ni | C | Mo | Mn | Si | Fe | P | S | Cu | Cr |
Balance | 0.15 Max | – | 0.35 Max | 0.35 Max | 0.40 Max | – | 0.01 Max | 0.25 Max | – |
Density | Melting Point | Yield Strength (0.2%Offset) | Tensile Strength | |
8.9 G/Cm3 | 1446 °C (2635 °F) | Psi – 21500 , MPa – 148 | Psi – 67000 , MPa – 462 | 45 % |
STANDARD | UNS | WERKSTOFF NR. | AFNOR | EN | JIS | BS | GOST |
Nickel 200 | N02200 | 2.4066 | N-100M | Ni 99.2 | NW 2200 | NA 11 | НП-2 |
Nickel 201 | N02201 | 2.4068 | – | LC-Ni 99 | NW 2201 | NA 12 | НП-2 |
Tube O.D. (in.) |
Wall Thickness of Tube (inches) | |||||||
---|---|---|---|---|---|---|---|---|
.028 | .035 | .049 | .065 | .083 | .095 | .109 | .120 | |
Working Pressure (psig) | ||||||||
1/8 | 7900 | 10100 | ||||||
1/4 | 3700 | 4800 | 7000 | 9500 | ||||
5/16 | 3700 | 5400 | 7300 | |||||
3/8 | 3100 | 4400 | 6100 | |||||
1/2 | 2300 | 3200 | 4400 | |||||
3/4 | 2200 | 3000 | 4000 | 4600 | ||||
1 | 2200 | 2900 | 3400 | 3900 | 4300 |
