Also referred to as by its trade name Grade 8 Al 1Mo 1V, the Ti gr 8 Pipe is what is known as a near alpha alloy. Unlike most titanium grades which are heat treated, a near alpha alloy cannot be manoeuvred by heat treating it. This is because the alloy of a near alpha type metal, in this case, Titanium Grade 8 Pipe does not undergo any significant phase change.

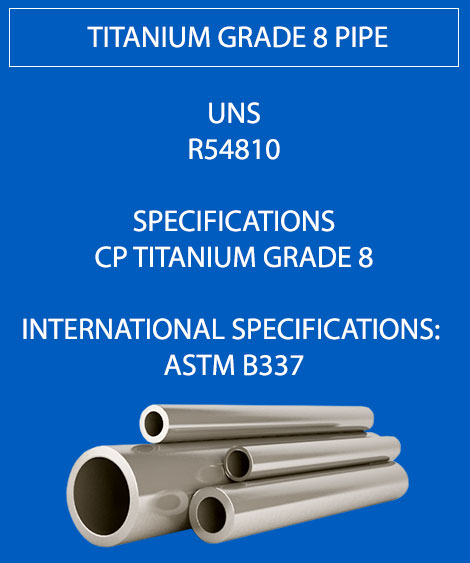

Titanium Grade 8 Pipe
Titanium gr 8 Seamless Pipe
Ti gr 8 Pipe
Therefore a high tensile strength cannot be achieved by heat treating. However, being a near alpha alloy, the Titanium Gr.8 Hexagonal Pipe could be stress relieved as well as annealed. That being noted, grade 8 alloys have similar properties to its other titanium grade counterparts. For instance, the Gr 8 Titanium Hot Finished Pipe has excellent creep resistance, which is why these pipes can be used at temperatures, where the operations can be exposed to heat as high as up to 455°C.
Aside from having medium to high strength the Titanium gr 8 Seamless Pipe, has good elevated temperature tensile properties. Parallel to the other titanium alloys, the Titanium Gr 8 Annealed Pipe also has properties like a high modulus along with being a low density alloy. The Titanium Gr.8 Welded Pipe inherits titanium’s higher melting point properties.
ASTM Specification | ASTM B330 / ASME SB330 |
---|---|
Standard | ASTM, ASME, JIS, AISI, AMS, EN, SAE, DIN, NF, TOCT, DS, DTD, GB |
Titanium Grade 8 Seamless Pipe Size | 4 to 219mm W. T.: 0.5 to 20mm |
ASME SB330 Ti 8 Welded Pipe Size | 5.0 - 1219.2 mm |
Grade 8 Pure Titanium EFW Pipe size | 5.0 - 1219.2 mm |
Swg & Bwg | 10 Swg., 12 Swg., 14 Swg., 16 Swg., 18 Swg., 20 Swg. |
Titanium Alloy Grade 8 Pipe Schedule | SCH5, SCH10, SCH10S, SCH20, SCH30, SCH40, SCH40S, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS |
Titanium Grade 8 Pipe Length | Single Random, Double Random, Standard & Cut length Pipe |
Finish | Polished, AP (Annealed & Pickled), BA (Bright & Annealed), MF, NO.1, NO.4, 2B, BA, HL, 8K, Mirror finish, etc |
Form | Titanium Grade 8 Pipe are available in form of Round, Square, Hollow, Rectangular, Hydraulic, Coiled, Straight Pipes, “U” Shape, Pan Cake Coils etc. |
Type of ASTM B337 Titanium Grade 8 Pipe | Seamless / ERW/ EFW / Welded / Fabricated / CDW / DOM / CEW Titanium Grade 8 Pipe |
Titanium Grade 8 Pipe End | Plain End, Beveled End, Treaded Pipe, Screwed ends |
Marking on Titanium gr 8 Pipe | All Titanium Grade 8 Pipes are marked as follows: Standard, Grade, OD, Thickness, Length, Heat No. (Or according to the customer’s request.) |
Application of Titanium Grade 8 Pipe | Dairy Pipe, Oil Pipe, Gas Pipe, Fluid Pipe, Boiler Pipe for Chemical Industry |
We can also cut, thread, and groove ASME SB330 Ti 8 Pipe to meet your specifications. Titanium Grade 8 Pipe Dimension ANSI/ ASME B36.10, B36.19, B2.1 |
NPS
|
Outside Diameter
|
Wall Thickness
|
Weight
|
Weight
|
|||
in
|
mm
|
in
|
mm
|
Sched
|
kg/Mtr
|
Lb/ft
|
|
1/2″
|
0.840
|
21
|
0.109
|
2.769
|
40 STD
|
1.268
|
0.851
|
0.147
|
3.734
|
80 STD
|
1.621
|
1.088
|
|||
3/4″
|
1.050
|
27
|
0.113
|
2.870
|
40 STD
|
1.684
|
1.131
|
0.154
|
3.912
|
80 STD
|
2.195
|
1.474
|
|||
1″
|
1.315
|
33
|
0.133
|
3.378
|
40 STD
|
2.501
|
1.679
|
0.179
|
4.547
|
80 STD
|
3.325
|
2.172
|
|||
1 1/4″
|
1.660
|
42
|
0.140
|
3.556
|
40 STD
|
3.385
|
2.273
|
0.191
|
4.851
|
80 STD
|
4.464
|
2.997
|
|||
1 1/2″
|
1.900
|
48
|
0.145
|
3.683
|
40 STD
|
4.048
|
2.718
|
0.200
|
5.080
|
80 STD
|
5.409
|
3.361
|
|||
2″
|
2.375
|
60
|
0.154
|
3.912
|
40 STD
|
5.441
|
3.653
|
0.218
|
5.537
|
80 STD
|
7.480
|
5.022
|
|||
2 1/2″
|
2.875
|
73
|
0.203
|
5.516
|
40 STD
|
8.629
|
5.793
|
0.276
|
7.010
|
80 STD
|
11.411
|
7.661
|
|||
3″
|
3.500
|
89
|
0.216
|
5.486
|
40 STD
|
11.284
|
7.576
|
0.300
|
7.620
|
80 STD
|
15.272
|
10.253
|
|||
4″
|
4.500
|
114
|
0.237
|
6.020
|
16.073
|
10.790
|
|
0.337
|
8.560
|
22.318
|
14.983
|
||||
6″
|
6.625
|
168
|
0.188
|
4.775
|
19.252
|
12.924
|
|
0.203
|
5.516
|
20.739
|
13.923
|
||||
0.219
|
5.563
|
22.318
|
14.983
|
||||
0.250
|
6.350
|
25.354
|
17.021
|
||||
0.280
|
7.112
|
40 STD
|
58.263
|
18.974
|
|||
0.312
|
7.925
|
31.334
|
21.036
|
||||
0.375
|
9.525
|
37.285
|
25.031
|
||||
0.432
|
10.973
|
80 XHY
|
42.561
|
28.573
|
|||
0.500
|
12.700
|
48.719
|
32.708
|
||||
8″
|
8.625
|
219
|
0.188
|
4.775
|
25.233
|
16.940
|
|
0.203
|
5.156
|
27.198
|
18.259
|
||||
0.219
|
5.563
|
29.286
|
19.661
|
||||
0.250
|
6.350
|
20
|
33.308
|
22.361
|
|||
0.277
|
7.036
|
30
|
36.786
|
24.696
|
|||
0.322
|
8.179
|
40
|
42.352
|
28.554
|
|||
0.375
|
9.525
|
49.216
|
33.041
|
||||
0.406
|
10.312
|
60
|
53.085
|
35.638
|
|||
0.500
|
12.700
|
80 XHY
|
64.627
|
43.388
|
|||
10″
|
10.750
|
273
|
0.188
|
4.775
|
31.588
|
21.207
|
|
0.219
|
5.563
|
36.689
|
24.631
|
||||
0.250
|
6.350
|
20
|
41.759
|
28.035
|
|||
0.307
|
7.798
|
30
|
51.002
|
34.240
|
|||
0.344
|
8.738
|
56.946
|
38.231
|
||||
0.365
|
9.271
|
40 STD
|
63.301
|
40.483
|
|||
0.438
|
11.125
|
71.852
|
48.238
|
||||
0.500
|
12.700
|
60 XHY
|
81.530
|
54.735
|
|||
0.594
|
15.088
|
80
|
95.969
|
64.429
|
|||
12″
|
12.750
|
324
|
0.188
|
4.775
|
37.570
|
25.222
|
|
0.219
|
5.563
|
43.657
|
29.309
|
||||
0.250
|
6.350
|
49.713
|
33.375
|
||||
0.281
|
7.137
|
55.739
|
37.420
|
||||
0.312
|
7.925
|
61.735
|
41.445
|
||||
0.375
|
9.525
|
73.824
|
49.562
|
||||
0.406
|
10.312
|
79.727
|
53.525
|
||||
0.500
|
12.700
|
97.438
|
65.415
|
||||
0.562
|
14.275
|
108.966
|
73.154
|
||||
14″
|
14.000
|
356
|
0.188
|
4.775
|
41.308
|
27.732
|
|
0.219
|
5.563
|
48.012
|
32.233
|
||||
0.250
|
6.350
|
20
|
54.685
|
36.713
|
|||
0.281
|
7.137
|
61.327
|
41.172
|
||||
0.312
|
7.925
|
67.939
|
45.611
|
||||
0.375
|
9.525
|
STD
|
81.281
|
54.568
|
|||
0.438
|
11.125
|
40
|
94.498
|
63.441
|
|||
0.500
|
12.700
|
XHY
|
107.381
|
72.090
|
|||
0.625 |
15.875
|
132.983
|
89.278
|
||||
16”
|
16.000
|
406
|
0.188
|
4.775
|
47.290
|
21.748
|
|
0.219
|
5.563
|
54.980
|
36.910
|
||||
0.250
|
6.350
|
10
|
62.639
|
42.053
|
|||
0.281
|
7.137
|
70.268
|
47.174
|
||||
0.312
|
7.925
|
20
|
77.866
|
52.275
|
|||
0.344
|
8.738
|
85.677
|
57.519
|
||||
0.375
|
9.525
|
30 STD |
93.213
|
62.578
|
|||
0.438
|
11.125
|
108.433
|
72.797
|
||||
0.500
|
12.700
|
40 XHY |
123.289
|
82.770
|
|||
18″
|
18.000
|
457
|
0.219
|
5.563
|
61.948
|
41.588
|
|
0.250
|
6.350
|
70.593
|
47.393
|
||||
0.281
|
7.137
|
79.208
|
53.176
|
||||
0.312
|
7.925
|
20
|
87.792
|
58.939
|
|||
0.375
|
9.525
|
STD
|
105.144
|
70.588
|
|||
0.438
|
11.125
|
30
|
122.369
|
82.152
|
|||
0.500
|
12.700
|
XHY
|
139.198
|
93.450
|
|||
0.562
|
14.275
|
40
|
155.904
|
104.666
|
|||
0.625
|
15.875
|
172.754
|
115.978
|
||||
20″
|
20.000
|
508
|
0.250
|
6.350
|
78.547
|
52.733
|
|
0.282
|
7.163
|
88.458
|
59.386
|
||||
0.312
|
7.925
|
97.719
|
65.604
|
||||
0.375
|
9.525
|
20 STD
|
117.075
|
78.598
|
|||
0.438
|
11.125
|
136.305
|
91.508
|
||||
0.500
|
12.700
|
30 XHY
|
155.106
|
104.130
|
|||
0.594
|
15.088
|
40
|
183.378
|
123.110
|
|||
0.625
|
15.875
|
192.640
|
129.328
|
||||
0.688
|
17.475
|
211.368
|
141.901
|
||||
24″
|
24.000
|
610
|
0.250
|
6.350
|
94.456
|
63.413
|
|
0.281
|
7.137
|
106.029
|
71.183
|
||||
0.312
|
7.925
|
117.573
|
18.932
|
||||
0.375
|
9.525
|
20 STD
|
140.938
|
64.618
|
|||
0.438
|
11.125
|
164.176
|
110.219
|
||||
0.500
|
12.700
|
XHY
|
186.923
|
125.490
|
|||
0.625
|
15.875
|
232.410
|
156.028
|
||||
0.688
|
17.475
|
40
|
255.148
|
171.293
|
|||
0.750
|
19.050
|
277.401
|
186.233
|
||||
30″
|
30.000
|
762
|
0.250
|
6.350
|
118.318
|
79.433
|
|
0.281
|
7.137
|
132.851
|
89.189
|
||||
0.312
|
7.925
|
10
|
147.353
|
98.925
|
|||
0.375
|
9.525
|
STD
|
176.731
|
118.648
|
|||
0.438
|
11.125
|
205.983
|
138.286
|
||||
0.500
|
12.700
|
20 XHY
|
234.647
|
157.530
|
|||
0.625
|
15.875
|
30
|
292.066
|
196.078
|
|||
0.688
|
17.475
|
320.817
|
215.380
|
||||
0.750
|
19.050
|
348.988
|
234.293
|
||||
36″
|
36.000
|
914
|
0.250
|
6.350
|
142.180
|
95.453
|
|
0.281
|
7.137
|
159.672
|
107.196
|
||||
0.312
|
7.925
|
10
|
177.133
|
118.918
|
|||
0.375
|
9.525
|
STD
|
215.525
|
142.678
|
|||
0.438
|
11.125
|
247.790
|
166.353
|
||||
0.500
|
12.700
|
20 XHY
|
282.372
|
198.570
|
|||
0.625
|
15.875
|
351.723
|
236.128
|
||||
0.688 |
17.475
|
386.487
|
259.467
|
||||
0.750 |
19.050
|
420.576
|
282.353
|
||||
42″
|
42.000
|
1067
|
0.312
|
7.925
|
206.914
|
138.911
|
|
0.375
|
9.525
|
STD
|
248.319
|
166.708
|
|||
0.500
|
12.700
|
XHY
|
33.097
|
221.610
|
|||
0.750
|
19.050
|
492.163
|
330.413
|
||||
48″
|
48.000
|
1219
|
0.375
|
9.525
|
STD
|
284.112
|
190.738
|
0.438
|
11.125
|
331.404
|
222.487
|
||||
0.500
|
12.700
|
XHY
|
377.822
|
253.650
|
|||
0.750
|
19.050
|
563.750
|
378.473
|
||||
0.875
|
22.225
|
655.969
|
440.383
|
Titanium Grade 8 Pipe | 4 inch Grade 8 Pure Titanium Seamless Pipe |
Grade 8 Pure Titanium Pipes | Titanium Alloy Grade 8 Welded Pipes |
Gr.8 Ti Seamless Steel Pipe | Grade 8 Titanium Cold Drawn Welded Tubes |
Grade 8 Pure Titanium Welded Pipe | Gr 8 Titanium Cold Drawn Tubes |
Titanium Alloy Grade 8 ERW Pipe | Schedule 5S Gr.8 Ti Seamless Tube |
Gr 8 Titanium EFW Pipe | Schedule 40 Ti Alloy Grade 8 Pipe |
Gr.8 Ti Cold Drawn Seamless Pipes | Titanium Alloy Grade 8 Precision Pipe |
Titanium Grade 8 Seamless Steel Precision Pipe | High pressure ASME SB330 Ti 8 Pipe |
Ti Alloy Grade 8 Cold Drawn Seamless Tubing | ASTM B337 Titanium Grade 8 Electropolished Pipe |
Grade 8 Pure Titanium Custom Pipe | Titanium Grade 8 Cold Drawn Pipes |
Grade 8 Titanium Round Pipe | Titanium gr 8 Exhaust Pipe |
ASTM B337 Titanium Grade 8 Square Pipe | Titanium Alloy Grade 8 Thin Wall Pipe |
Titanium gr 8 Rectangular Pipe | Small diameter ASTM B337 Titanium Grade 8 pipe |
Gr.8 Ti Hexagonal Pipe | Grade 8 Pure Titanium Pipe material |
Titanium Grade 8 Bush Hex Pipe | Ti Alloy Grade 8 Precision Steel Pipes |
Gr 8 Titanium Fabricated Pipe | Grade 8 Titanium Annealed pipe |
Grade 8 Titanium Beveled End Pipe | Gr 8 Titanium Rectangle Pipe |
ASME SB330 Ti 8 Cold Drawn Pipe | Cold Drawn Titanium Grade 8 Welded Pipe |
1/8" IPS(.405"O. D.)
|
3 1/2" IPS( 4.000"O. D.)
|
---|---|
SCH 40, 80
|
SCH 10, 40, 80, 160, XXH
|
1/4" IPS(.540"O. D.)
|
4" IPS(4.500"O. D.)
|
SCH 10, 40, 80
|
SCH 10, 40, 80, 160, XXH
|
3/8" IPS(.675"O. D.)
|
5" IPS( 5.563"O. D.)
|
SCH 10, 40, 80
|
SCH 10, 40, 80, 160, XXH
|
1/2" IPS(.840"O. D.)
|
6" IPS(6.625"O. D.)
|
SCH 5, 10, 40, 80, 160, XXH
|
SCH 5, 10, 40, 80, 120, 160, XXH
|
3/4" IPS(1.050"O. D.)
|
8 ” IPS(8.625"O. D.)
|
SCH 10, 40, 80, 160, XXH
|
SCH 5, 10, 40, 80, 120, 160, XXH
|
1" IPS:(1.315′O. D.)
|
10" IPS(10.750"O. D.)
|
SCH 5, 10, 40, 80, 160, XXH
|
SCH 10, 20, 40, 80 (.500), TRUE 80(.500)
|
1-1/4" IPS(1.660"O. D.)
|
12" IPS(12.750"O. D.)
|
SCH 10, 40, 80, 160, XXH
|
SCH 10, 20, 40(.375), TRUE40(.406), SCH80(.500)
|
1-1/2" IPS(1.900"O. D.)
|
14" IPS(14.000"O. D.)
|
SCH 10, 40, 80, 160, XXH
|
SCH10 (.188), SCH40 (.375)
|
2" IPS(2.375"O. D.)
|
16" IPS(16.000"O. D.)
|
SCH 10, 40, 80, 160, XXH
|
SCH10(.188), SCH40(.375)
|
2 1/2" IPS(2.875"O. D.)
|
18" IPS (18.000"O. D.)
|
SCH 10, 40, 80, 160, XXH
|
SCH-40 (.375)
|
3" IPS( 3.500"O. D.)
|
|
SCH 5, 10, 40, 80, 160, XXH
|
Properties | Metric | Imperial |
---|---|---|
Tensile strength | 937 MPa | 136000 psi |
Yield strength | 910 MPa | 132000 psi |
Poisson’s ratio | 0.32 | 0.32 |
Elastic modulus | 120 GPa | 17400 ksi |
Shear modulus | 46 GPa | 6670 ksi |
Elongation at break | 18% | 18% |
Hardness, Brinell | 334 | 334 |
Hardness, Knoop | 363 | 363 |
Hardness, Rockwell C | 36 | 36 |
Hardness, Vickers | 349 | 349 |
Element | Content (%) |
---|---|
Aluminum, Al | 7.35 - 8.35 |
Vanadium, V | 0.75 - 1.25 |
Molybdenum, Mo | 0.75 - 1.25 |
Iron, Fe | 0.3 max |
Oxygen, O | 0.12 max |
Carbon, C | 0.08 max |
Nitrogen, N | 0.05 max |
Hydrogen, H | 0.0125 max |
Titanium, Ti | Remainder |
STANDARD | UNS |
Grade 8 | R54810 |
Pipe O.D. (in.) |
Wall Thickness of Pipe (inches) | |||||||
---|---|---|---|---|---|---|---|---|
.028 | .035 | .049 | .065 | .083 | .095 | .109 | .120 | |
Working Pressure (psig) | ||||||||
1/8 | 7900 | 10100 | ||||||
1/4 | 3700 | 4800 | 7000 | 9500 | ||||
5/16 | 3700 | 5400 | 7300 | |||||
3/8 | 3100 | 4400 | 6100 | |||||
1/2 | 2300 | 3200 | 4400 | |||||
3/4 | 2200 | 3000 | 4000 | 4600 | ||||
1 | 2200 | 2900 | 3400 | 3900 | 4300 |
