Titanium is a versatile metal which offers a ton of good properties. For instance, the Titanium Pipe fittings are known for their excellent resistance to corrosion, along with a high fracture toughness property as well. What makes the Ti alloy Buttweld Stub End an ideal contender for aero engine applications is the fact that the alloy is capable of bearing witness to creep strength, where the temperatures can rise up to an elevated point of about 600°C.

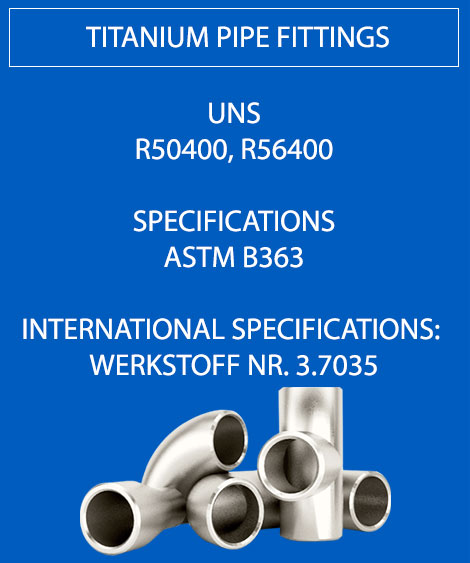

Titanium Pipe Fittings
Titanium Alloy Reducer
Ti alloy Buttweld Stub End
Some grades of titanium alloy are non-toxic and therefore they can be used in the field of biomedicine in surgeries. In comparison to conventionally used carbon steel grade, the Titanium Stub end is about 45% lighter, all the same exhibiting higher tensile strength properties as opposed to the former alloy. In marine engineering and aerospace industry, the Titanium Alloy Reducer aids in changing the size of the pipe from a larger bore size to a smaller sized bore. A Titanium Reducer permit for a change not only in the size of the pipe in order to meet hydraulic flow desideratum of the piping system but it also makes way to adapt to existing piping of a different size.
Branched at the centre at 90 degrees, the Titanium Tee is a short piece of pipe, which could be used to either distribute or collecting the fluid from the run pipe. Contemplated to be a versatile fitting, the Titanium Elbow is one of the more popular fittings because it offers the flexibility required in a piping system to change the direction of the flow.
Ti Alloy Pipe Fittings size | Titanium Seamless Butt Weld Fittings: 1/2" - 10" Titanium Alloy Welded Butt Weld Fittings: 1/2" - 48" |
---|---|
Titanium Alloy Pipe Fittings Dimensions | ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, BS4504, BS4504, BS1560, BS10 |
Titanium Wrought Alloy Fittings Thickness | SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS available with NACE MR 01-75 |
Titanium Pipe fittings Types |
|
Titanium FittingsType | DN15-DN1200 |
Titanium Buttweld Fitting Connection | Welding |
Bending Radius | R= 2D, 6D, 1D, 5D, 8D, 3D, 10D or Custom Titanium Super Alloy Pipe Fitting |
Size Range | ½" NB to 24" NB in Sch 10s, 40s, 80s, 160s, XXS. (DN6~DN100) Titanium Steel Alloy Buttweld Fitting |
Alloy Titanium Elbows | Angle : 22.5 deg, 30deg, 45 deg, 90 deg, 180 deg, 1.0D, 1.5D, 2.0D, 2.5D, 3D, 4D, 5D, 6D, 7D-40D . Standard: ASME B16.9, ASME B16.28, ASME B16.25, MSS SP-75 DIN2605 JISB2311 JISB2312 JISB2313, BS, GB, ISO |
Titanium Fittings Manufacturing process | Push, Press, Forge, Cast, etc. |
Titanium Buttweld Pipe Fittings Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
We provide Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175 |
Titanium Alloy Fittings | Titanium Pipe Fitting |
Titanium Super Alloy 90 Degree Elbow | Titanium Steel Alloy End Cap |
Titanium Alloy 45 Degree Elbow | Titanium Buttweld Fitting |
Titanium Wrought Alloy 1D Elbow | Ti Alloy Short Stub End |
Titanium Stub End | Titanium Alloy Pipe Cap |
Ti Alloy 3D Elbow | Alloy Titanium End Cap |
Titanium 5D Elbow | Alloy Titanium Reducer |
Titanium Alloy Buttweld Fittings | Titanium Steel Alloy Pipe Bend |
Titanium Alloy Pipe Fittings | Titanium Wrought Alloy Long Stub End |
Titanium Eccentric Reducer | Titanium Wrought Alloy Long Radius Elbow |
Alloy Titanium Concentric Reducer | Titanium Super Alloy Short Radius Elbow |
Titanium Alloy Equal Cross | Titanium Alloy Pipe Cap |
Titanium Steel Alloy Lateral Tee | Ti Alloy Cross Tee |
Ti Alloy Reducing Cross | Titanium Equal Cross |
Titanium Equal Tee | Alloy Titanium Stub End |
Titanium Steel Alloy Concentric Reducer | Titanium Alloy 5D Elbow |
Grade | Specification (mm) | Standard |
---|---|---|
Gr2 (Pure Titanium)
Gr5 (Ti6Al4V) |
M (3-64) *L (5-300) or as your request |
GB DIN ASTM ASME ISO JIS |
M (3-64) *L (5-300) or as your request |
||
M (3-64) or as your request |
||
M (3-64) or as your request |
Density | Melting Point | Yield Strength (0.2%Offset) | Tensile Strength | Elongation |
4.5 G/Cm3 | 1665 °C (3030 °F) | Psi – 39900 , MPa – 275 | Psi – 49900 , MPa – 344 | 20 % |
4.43 G/Cm3 | 1632 °C (2970 °F) | Psi – 128000 , MPa – 880 | Psi – 138000 , MPa – 950 | 14 % |
Grade | C | N | O | H | Ti | Fe |
Titanium Grade 1 | .08 Max | .03 Max | .18 Max | .015 Max | Bal | .20 Max |
Titanium Grade 4 | .08 Max | .05 Max | .40 Max | .015 Max | Bal | .50 Max |
Titanium Grade 7 | .08 Max | .03 Max | .25 Max | .015 Max | Bal | .30 Max |
Titanium Grade 9 | .08 Max | .03 Max | .15 Max | .015 Max | - | .25 Max |
Titanium Grade 12 | .08 Max | .03 Max | .25 Max | 0.15 Max | - | .30 Max |
STANDARD | UNS | WERKSTOFF NR. |
Titanium Gr 2 | R50400 | 3.7035 |
Titanium Gr 5 | R56400 | 3.7165 |
Titanium Butt Weld Fittings | |
---|---|
Titanium Grade 5 Fittings Types | Titanium DIN 3.7035 90º LRs, 90º SRs, 45º Elbows, Titanium UNS R50400 Concentric Reducers, Titanium DIN 3.7165 Eccentric Reducers, ASTM B171 Titanium Tees, Reducing Tees and Stub Ends Fittings |
Sizes | 1/2" – 12" |
Schedules | Sch 10S – 80S |
