Incoloy 800 Round Bar has excellent cold forming features characteristically accompanying with the nickel chromium alloys are displayed with Incoloy 800HT Flat Bar which is essentially used for process piping, temperature exchangers, heating element casing, carburizing gear, and nuclear condensation generator tubing which also has some features such as type which contains Round, Square, Hex (A/F), Rectangle etc. Similarly if we talk about Alloy 800H Rod so it is very similar to the above features which we have already discussed.

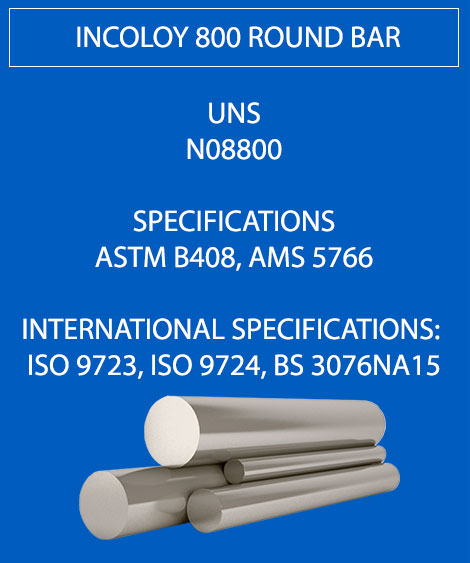

Incoloy 800 Round Bar
Alloy 800H Rod
Incoloy 800HT Flat Bar
Incoloy 800H Round Bar It is a nickel iron based grade that has greatest strength and exceptional corrosion resistance in high temperature and weight. This nickel based alloy is highly indistinguishable for bringing the best properties when used in the construction of the round bars and other products. In the same way if we say something about chemical composition of Inconel Alloy 800ht Round Bar the grade has manageable amount of carbon and other elements that offers finest and supreme mechanical properties. Properties such as good elongation, good ductile strength, high yield power and greater short tiptoe properties are some of the properties found in the grade and other properties and features are found in Incoloy UNS N08800 Bright Bar which is manufactured in our Tarang Steel under the supervision of well qualified and experienced staff who plays a very efficient and valuable role in our company to make our company well known around the world. Contact us to get latest Inconel UNS N08800 Round Bar price list. We have alloy 800 Round Bar Stock in all Sizes and dimensions. Tarang steel in biggest inconel 800 round bar suppliers in mumbai. Are you looking for Incoloy 800 round bar manufacturers in India.

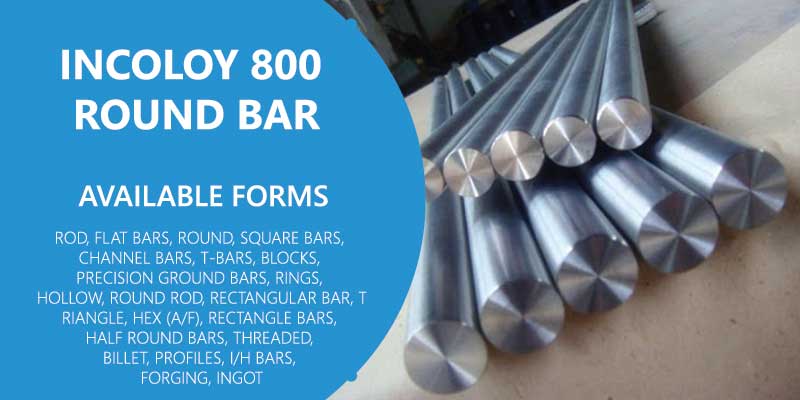

Incoloy 800 Round Bar
Inconel 800h bar expansively the grain size produces a perceptibly rolled surface, with excellent cold forming features characteristically linked with the nickel chromium alloys are showed with Incoloy 800 Round Bars. The carbon range of 0.05 % to 0.10 % is within the ASTM and ASME requirement bounds for Incoloy 800H Square Bars and is in the higher portion of that variety.
Nickel 800 Bars is not normally used for applications that require optimum creep-rupture properties. In those cases, Nickel Alloy 800H Rod or Incoloy Alloy 800HT Rod should be used.
Specifications | ASTM B446 / ASTM SB446 |
size | 2-100mm A/F |
---|---|
Square bar size | 4 to 100mm |
Flat bar size | Thickness: 2 -100mm Width: 10 to 500mm |
Round bar size | Diameter: 3-~800mm |
Rectangles Size | 33 x 30mm to 295 x 1066mm |
Angle bar size | 3mm*20mm*20mm~12mm*100mm*100mm |
Section | 3.0 to 12.0mm thickness |
Channel Bar | 80 x 40mm to 150 x 75mm section; 5.0 to 6.0mm thickness |
Hollow Bar | 32mm OD x 16mm ID to 250mm OD x 200mm ID) |
Billet Size | 1/2" to 495mm Diameter |
Finish | Cold (bright) drawn, centreless ground, hot rolled, smooth turned, peeled, slit rolled edge, hot rolled annealed, Rough Turned, Bright, Polish, Grinding, Centreless Ground & Black |
Tolerance | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
Surface | Hot Rolled Pickled, Bright, Sand Blasting Finished, Cold Drawn, Hairline, Polished |
Condition | Hardened & tempered, annealed |
Technique | Incoloy 625 Cold Drawn, Hot Rolled, Forged Round Bar,Cold Rolled, Rod |
Processing | Bar cutting to 650mm |
Form | Round, Welding Rod, T-Bar, Rod, Precision Ground Bar, Channel Bar, Square, Flat Bar, Blocks, Round Rod, Hollow, Rings, Rectangle, Hex (A/F), Triangle, Threaded, Profiles, Billet, Ingot, I/H Bar, Half Round Bar, Forging etc. |
Price of Incoloy 800 Round Bar | Nickel 800 Round Bar Price in India (INR) | Nickel 800 Round Bar Price in USD | Nickel 800 Round Bar Price in UAE Dirham |
---|---|---|---|
INCOLOY 800 ROUND BAR ( NICKEL ) BRIGHT 26 MM | INR 862 | $11.61 | 42.65 UAE Dirham |
INCOLOY 800 ROUND BAR BRIGHT ( NICKEL ) 26MM | INR 854 | $11.50 | 42.25 UAE Dirham |
Incoloy 800 Round Bars | Incoloy 800 ASTM B408 Flat Bar |
800 Incoloy Rounds | ASTM B408 UNS N08800 Flat Bar Black |
Incoloy 800Ht Rounds | Incoloy alloy 800H Flat Bars Bright |
ASTM B408 UNS N08800 Bright Bars | Alloy 800H Flat Bar Polished |
Incoloy 800 ASTM B408 Rods | 800 Incoloy Flat Bar Cold Drawn |
Incoloy 800Ht Square Bar Cold Drawn | 800 Incoloy Bright Rods material |
Incoloy alloy 800H Rod | Incoloy 800 Flat Bar Annealed |
Alloy 800H Round Bars | 800 Incoloy Flat Rod stock |
Nickel 800 Hex Rods | Incoloy 800Ht Threaded Rod |
800 Incoloy Square Rod Polished | Incoloy 800 Bright Rod Hot Rolled |
Incoloy 800Ht Hex Rods Bright | Incoloy 800 ASTM B408 Hollow Bar |
Nickel Alloy 800 Rectangular Bar Annealed | ASTM B408 UNS N08800 Polished Hex Rod |
Incoloy 800 Hex Bar Polished | Incoloy alloy 800H Hexagonal Rod |
Incoloy 800Ht Rectangular Rods | Nickel 800 Threaded Bar Black |
ASTM B408 UNS N08800 Hex Bar Annealed | Nickel 800 Cold Drawn Rounds |
Incoloy alloy 800H Forged Rod | Nickel Alloy 800 Polished Rods |
UNS N08800 Bar | Inconel 800 Precision Ground Bar |
Inconel 800HT Bar | Inconel 800H hot finish round bar |
Incoloy Alloy 800HT Square Bar | ASTM B408 Alloy 800H Threaded Bar |
Specific Gravity of Alloy 800 Bar
|
7.94 g/cm3
|
Incoloy 800 round bar Tolerance ISO “H” Series in MM | ||||||||
---|---|---|---|---|---|---|---|---|
NOMINAL SIZE | h5 | h6 | h7 | h8 | h9 | H10 | H11 | h12 |
DIAMETER mm | ||||||||
~ to 3 | +0.004/0 | +0.006/0 | +0.01/0 | +0.014/0 | +0.025/0 | +0.04/0 | +0.06/0 | +0.1/0 |
over 3 to 6 | +0.005/0 | +0.008/0 | +0.012/0 | +0.018/0 | +0.03/0 | +0.048/0 | +0.075/0 | +0.12/0 |
over 6 to 10 | +0.006/0 | +0.009/0 | +0.015/0 | +0.022/0 | +0.036/0 | +0.058/0 | +0.09/0 | +0.15/0 |
over 10 to 18 | +0.008/0 | +0.011/0 | +0.018/0 | +0.027/0 | +0.043/0 | +0.07/0 | +0.11/0 | +0.18/0 |
over 18 to 30 | +0.009/0 | +0.013/0 | +0.021/0 | +0.033/0 | +0.052/0 | +0.084/0 | +0.13/0 | +0.21/0 |
over 30 to 50 | +0.011/0 | +0.016/0 | +0.025/0 | +0.039/0 | +0.062/0 | +0.1/0 | +0.16/0 | +0.25/0 |
over 50 to 80 | +0.013/0 | +0.019/0 | +0.03/0 | +0.046/0 | +0.074/0 | +0.12/0 | +0.19/0 | +0.3/0 |
over 80 to 120 | +0.015/0 | +0.022/0 | +0.035/0 | +0.054/0 | +0.087/0 | +0.14/0 | +0.22/0 | +0.35/0 |
over 120 to 180 | +0.018/0 | +0.025/0 | +0.04/0 | +0.063/0 | +0.1/0 | +0.16/0 | +0.25/0 | +0.4/0 |
over 180 to 250 | +0.02/0 | +0.029/0 | +0.046/0 | +0.072/0 | +0.115/0 | +0.185/0 | +0.29/0 | +0.46/0 |
Grade | C | Mn | Si | S | Cu | Fe | Ni | Cr | Al | Ti |
800 | 0.10 max | 1.50 max | 1.00 max | 0.015 max | 0.75 max | 39.50 min | 30.00 – 35.00 | 19.00 – 23.00 | 0.15 – 0.60 | 0.15 – 0.60 |
800H | 0.05 – 0.10 | 1.50 max | 1.00 max | 0.015 max | 0.75 max | 39.50 min | 30.00 – 35.00 | 19.00 – 23.00 | 0.15 – 0.60 | 0.15 – 0.60 |
800HT | 0.06 – 0.10 | 1.50 max | 1.00 max | 0.015 max | 0.75 max | 39.50 min | 30.00 – 35.00 | 19.00 – 23.00 | 0.15 – 0.60? | 0.15 – 0.60? |
Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
800 / 800H / 800HT | 7.94 g/cm3 | 1385 °C (2525 °F) | Psi – 75,000 , MPa – 520 | Psi – 30,000 , MPa – 205 | 30 % |
STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN | OR |
Incoloy 800 | 1.4876 | N08800 | NCF 800 | NA 15 | ЭИ670 | Z8NC32-21 | X10NiCrAlTi32-20 | XH32T |
Incoloy 800H | 1.4958 / 1.4876 | N08810 | NCF 800H | NA 15(H) | ЭИ670 | Z8NC33-21 | X5NiCrAlTi31-20 | XH32T |
Incoloy 800HT | 1.4859 / 1.4876 | N08811 | NCF 800HT | NA 15(HT) | ЭИ670 | – | X8NiCrAlTi32-21 | XH32T |
UNS: |
N08800 |
Specifications: |
ASTM B408, AMS 5766 |
international Specifications: |
ISO 9723, ISO 9724, BS 3076NA15, BS 3075NA15, EN 10095, VdTüV 412 & 434 |
Type | SIZES (mm) | SIZES (Inches) | ISO Tolerance |
---|---|---|---|
Incoloy UNS N08800 Cold Drawn and Polish Round Bar | 3.00 – 75.00 | 1/8" – 3.00" | h8-h9-h10-h11 |
alloy 800 Cold Drawn and Ground Bar | 10.00 – 75.00 | 5/6" – 2.50" | h8-h9-h10-h11 |
800 Incoloy Peeled and Polished Round Bar | 40.00 – 150.00 | 1.50" – 6.00" | h11, h11-DIN 1013 |
Incoloy Alloy 800 Peeled and Ground Bar | 20.00 – 50.00 | 3/4″ – 2.00" | h9-h10-h11 |
H&T | Hardened and tempered. |
ANN | Annealed |
PH | Precipitation hardened. |
Incoloy | Product form | Dimension |
---|---|---|
Incoloy 800HT AMS 5766 (32 Ni/21 Cr) | Rod; cold drawn, ground, solution annealed | Dia=10.0 mm, Weight=0.7 kg/m |
Incoloy 800HT AMS 5766 (32 Ni/21 Cr) | Rod; cold drawn, solution annealed | Dia=12.0 mm, Weight=0.9 kg/m |
Incoloy 800H/HT AMS 5766 (32 Ni/21 Cr) | Rod; hot rolled, solution annealed, peeled | Dia=30.0 mm, Weight=5.9 kg/m |
Incoloy 800HT AMS 5766 (32 Ni/21 Cr) | Rod; peeled, solution annealed | Dia=40.0 mm, Weight=10.0 kg/m |
Incoloy 800HT AMS 5766 (32 Ni/21 Cr) | Rod; forged, peeled, solution annealed | Dia=45.0 mm, Weight=12.64 kg/m |
Incoloy 800HT AMS 5766 (32 Ni/21 Cr) | Rod; solution annealed, peeled | Dia=50.4 mm, Weight=15.5 kg/m |
Incoloy 800HT AMS 5766 (32 Ni/21 Cr) | Rod; peeled, solution annealed | Dia=60.0 mm, Weight=22.8 kg/m |
Incoloy 800HT AMS 5766 (32 Ni/21 Cr) | Rod; solution annealed, peeled | Dia=65.0 mm, Weight=26.5 kg/m |
Incoloy 800H AMS 5766 (32 Ni/21 Cr) | Rod; hot rolled, annealed | Dia=70.0 mm, Weight=31.6 kg/m |
Incoloy 800HT AMS 5766 (32 Ni/21 Cr) | Rod; solution annealed, machined | Dia=75.0 mm, Weight=36.0 kg/m |
Incoloy 800HT AMS 5766 (32 Ni/21 Cr) | Rod; peeled, solution annealed | Dia=80.0 mm, Weight=40.0 kg/m |
Incoloy 800HT AMS 5766 (32 Ni/21 Cr) | Rod; hot rolled, solution annealed, peeled | Dia=90.0 mm, Weight=51.0 kg/m |
Incoloy 800HT AMS 5766 (32 Ni/21 Cr) | Rod; hot rolled, annealed, peeled | Dia=95.0 mm, Weight=55.1 kg/m |
Incoloy 800H/HT AMS 5766 (32 Ni/21 Cr) | Rod; peeled, solution annealed | Dia=100.0 mm, Weight=62.5 kg/m |
Incoloy 800H/HT AMS 5766 (32 Ni/21 Cr) | Rod; hot rolled, annealed, peeled | Dia=130.0 mm, Weight=103.1 kg/m |
CD | Cold drawn | P | Polished |
BD | Bright drawn | SRE | Slit rolled edge |
CG | Centreless ground | HF | Hot finished |
CF | Cold finished | HRAP | Hot rolled annealed and pickled |
P&T | Peeled and turned | RT | Rough turned/peeled |
ST | Smooth turned | PR | Peeled and reeled |
