Inconel 718 round bar is a rain inurement nickel chromium alloy covering important amounts of iron, columbium, and molybdenum, along with smaller amounts of aluminum and titanium. Tarang Steel produce and supply Inconel 718 round bar with a lot of features and different variation in different sizes and shapes which are discussed, such as Alloy 718 Rod is a high strength, corrosion resistant nickel chromium physical used at 423 to 1300 F. The age hard allow alloy can be willingly fabricated, even into multifaceted parts. Its welding features, especially its resistance to post weld fast are outstanding.

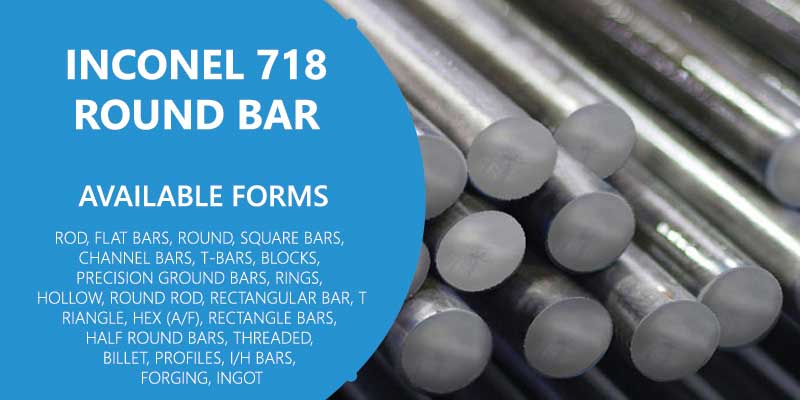

Inconel 718 Round Bar
Alloy 718 Rod
Inconel 718 Flat Bar
Inconel 718 Flat Bar are fundamentally used as a Connector between the bars at the central. They are also used as a wad in to resist pressure in Weight Valves. These have enormous demand in many large scale industrial purposes. Our Inconel 718 Flat Bar are one of the successful known for its durable leak resistant property. With utmost care on the excellence of the creation, and have been documented as one of the world’s leading sturdiest and manufacturer of quality metals which also includes Inconel 718 Rectangular Bar for over two periods and are committed to quick responses, unrivaled quality, modest pricing, reliable distributions and an thorough inventory.
Incoloy 718 Round Bar
Inconel 718 Hex Bar are fundamentally used as a Connector between the bars at the middle. They are also used as a wad in to resist pressure in Pressure Regulators. These have enormous demand in many large scale manufacturing purposes. Our Inconel 718 Hex Bar are one of the successful known for its durable escape proof property. We are famous for Inconel 718 Alloy Bar which is also one of the bestselling known for its durable leak-proof property.
Inconel alloy 718 Round bar size | Diameter: 3-~800mm |
---|---|
Nickel Alloy 718 Hex Bar size | 2-100mm A/F |
Inconel 718 din 2.4668 Flat bar size | Thickness: 2 -100mm |
Width: 10 to 500mm | |
Alloy 718 Square bar size | 4 to 100mm |
ASTM B166 UNS N07718 Angle bar size (in mm) | 3*20*20~12*100*100 |
Nickel 718 Section | 3.0 to 12.0mm thickness |
Inconel 718 ASTM B166 Channel Bar (in mm) | 80 x 40 to 150 x 75 section; 5.0 to 6.0 thickness |
718 Inconel Hollow Bar (in mm) | 32 OD x 16 ID to 250 OD x 200 ID) |
Inconel 718 UNS N07718 Billet Size | 1/2" to 495mm Diameter |
Inconel 718 Rectangles Size | 33 x 30mm to 295 x 1066mm |
Nickel Alloy 718 Round Bar Finish | Cold (bright) drawn, centreless ground, hot rolled, smooth turned, peeled, slit rolled edge, hot rolled annealed, Rough Turned, Bright, Polish, Grinding, Centreless Ground & Black |
Inconel 718 din 2.4668 Round Bar Surface | Bright, Hot Rolled Pickled, Cold Drawn, Sand Blasting Finished, Polished, Hairline |
Our Inconel 718 din 2.4668 Round bar conforms to NACE MR0175/ISO 15156 |
Price of Nickel Alloy 718 Round Bar | Inconel 718 Round Bar Price in India (INR) | Nickel 718 Round Bar Price in USD | Alloy 718 Round Bar Price in UAE Dirham |
---|---|---|---|
ROUND BAR INCONEL NICKEL ALLOY 718 API-120, SIZE: 25.4MM DIA X 1016 | INR 2,371 | $31.94 | 117.31 UAE Dirham |
ROUND BAR/INCONEL 718, AMS 5662, 25.5MM DIA X 3450-3850MM,52 PCS( HR-SOLUTION ANNEALED-SMOOTH TURNED) | INR 2,062 | $27.78 | 102.02 UAE Dirham |
NICKEL ALLOY ROUND BAR INCONEL 718 ( SIZE: 76.20 MM) | INR 1,558 | $20.99 | 77.08 UAE Dirham |
INCONEL 718 BAR - DIA 57.15 | INR 2,654 | $35.75 | 131.31 UAE Dirham |
Inconel 718 Round Bar | Alloy 718 Rod |
Inconel alloy 718 Bar | Inconel 718 din 2.4668 Rod |
Nickel Alloy 718 Rounds | ASTM B166 UNS N07718 Flat Bar Bright |
Inconel 718 din 2.4668 Bright Rod | Nickel 718 Flat Bar Polished |
Alloy 718 Rods | Inconel alloy 718 Flat Bars Cold Drawn |
Nickel Alloy 718 Square Bar Cold Drawn | Inconel alloy 718 Bright Bars material |
ASTM B166 UNS N07718 Rod | Inconel 718 Flat Bar Annealed |
Nickel 718 Round Bars | Inconel alloy 718 Flat Bar |
Inconel 718 ASTM B166 Hex Bars | Nickel Alloy 718 Threaded Bars |
Inconel alloy 718 Square Bar Polished | Inconel 718 Bright Rod |
Inconel 718 UNS N07718 Hex Bar Bright | Alloy 718 Hollow Bar |
718 Inconel Rectangular Bars Annealed | Inconel 718 din 2.4668 Polished Hex Bars |
Inconel 718 Hex Bar Polished | ASTM B166 UNS N07718 Hexagonal Bar |
Inconel 718 UNS N07718 Rectangular Bar | Inconel 718 ASTM B166 Threaded Bar Black |
Inconel 718 din 2.4668 Hex Bar Annealed | Inconel 718 ASTM B166 Cold Drawn Round Bar |
ASTM B166 UNS N07718 Forged Bar | 718 Inconel Polished Bar |
Turned inconel 718 round bar Tolerances | |
---|---|
inconel 718 round bar Size, diameter | Permitted variation |
mm | mm |
≧ 6 ≦ 18 > 18 ≦ 30 > 30 ≦ 50 > 50 ≦ 80 > 80 ≦ 120 > 120 ≦ 180 > 180 ≦ 250 > 250 ≦ 315 > 315 ≦ 400 > 400 |
+ 0 to - 0.070 + 0 to - 0.085 + 0 to - 0.100 + 0 to - 0.120 + 0 to - 0.140 + 0 to - 0.160 + 0 to - 0.185 + 0 to - 0.210 + 0 to - 0.230 + 0 to - 0.250 |
Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
718 | 8.14 g/cm3 | 1400 °C (2550 °F) | Psi – 80,000 , MPa – 550 | Psi – 32,000 , MPa – 220 | 30 % |
Grade | C | Mn | Si | Fe | S | Cr | Al | Ni | |
718 | min. | – | – | – | bal | – | 17.0 | 0.2 | 50.0 |
max. | 0.08 | 0.35 | 0.35 | bal | 0.01 | 21.0 | 0.8 | 55.0 |
Grade | UNS No | Old British | Euronorm | GOST | Japanese JIS | ||
BS | En | No | AFNOR | ||||
Inconel 718 | N07718 | – | – | 2.4668 | – | – | – |
UNS: |
N07718 |
Specifications: |
AMS 5662, AMS 5663, AMS 5664, ASTM B637, ASME SB637, AMS 5832, AMS 5914, AMS 5962, NACE MR-01-75 |
international Specifications: |
WERKSTOFF Nr 2.4668 |
0.2% Proof Stress | Tensile Strength | Elongation | Reduction of area | Hardness |
---|---|---|---|---|
MPA | MPA | % | % | HRC |
Min | Min | Min | Min | Min |
827 | 1034 | 17 | 25 | 40 |
Size & Dimensions of inconel 718 round bar | |||||||
---|---|---|---|---|---|---|---|
Metric | US Bar | ASTM/ Canadian | Japanese | ||||
Bar Size | Diam. (mm) | Bar Size | Diam. (Inch) | Bar Size | Diam. (mm2) | Bar Size | Diam. (mm) |
5 | 5 | #2 | 0.250 | 10M | 100 | 6 | 6 |
5.5 | 5.5 | #3 | 0.375 | 15M | 200 | 10 | 10 |
6 | 6 | #4 | 0.500 | 20M | 300 | 13 | 13 |
7 | 7 | #5 | 0.718 | 25M | 500 | 16 | 16 |
8 | 8 | #6 | 0.750 | 30M | 700 | 19 | 19 |
9 | 9 | #7 | 0.875 | 35M | 1000 | 22 | 22 |
10 | 10 | #8 | 1.000 | 45M | 1500 | 25 | 25 |
11 | 11 | #9 | 1.125 | 55M | 2500 | 29 | 29 |
12 | 12 | #10 | 1.250 | 32 | 32 | ||
14 | 14 | #11 | 1.375 | 35 | 35 | ||
16 | 16 | #12 | 1.500 | 38 | 38 | ||
18 | 18 | #13 | 1.718 | 41 | 41 | ||
20 | 20 | #14 | 1.750 | 44 | 44 | ||
22 | 22 | #15 | 1.875 | 48 | 48 | ||
25 | 25 | #16 | 2.000 | 51 | 51 | ||
28 | 28 | #18 | 2.250 | 57 | 57 | ||
32 | 32 | ||||||
36 | 36 | ||||||
40 | 40 | ||||||
44 | 44 | ||||||
50 | 50 |
Round Bar | ||||||||
---|---|---|---|---|---|---|---|---|
Size | Kgs / Foot | Kgs / Mtr | Size | Kgs / Foot | Kgs / Mtr | Size | Kgs / Foot | Kgs / Mtr |
3mm | 0.017 | 0.055 | 20mm | 0.753 | 2.470 | 3" | 10.900 | 35.762 |
1/8" | 0.019 | 0.062 | 22mm | 0.908 | 2.979 | 3-1/4" | 12.800 | 41.996 |
5/32" | 0.029 | 0.095 | 7/8" | 0.926 | 3.038 | 3-1/2" | 14.850 | 48.772 |
4mm | 0.030 | 0.098 | 24mm | 1.080 | 3.543 | 3-3/4" | 17.001 | 55.780 |
3/16" | 0.043 | 0.141 | 25mm | 1.180 | 3.871 | 4" | 19.306 | 63.340 |
5mm | 0.047 | 0.154 | 1" | 1.210 | 3.970 | 4-1/4" | 21.908 | 72.249 |
7/32" | 0.058 | 0.190 | 26mm | 1.271 | 4.170 | 4-1/2" | 24.4487 | 80.340 |
6mm | 0.068 | 0.223 | 27mm | 1.368 | 4.490 | 4-3/4" | 27.366 | 90.249 |
1/4" | 0.076 | 0.249 | 1-1/8" | 1.534 | 5.033 | 5" | 30.461 | 99.940 |
7mm | 0.091 | 0.298 | 30mm | 1.691 | 5.548 | 5-1/2" | 36.690 | 121.000 |
5/16" | 0.118 | 0.387 | 1-1/4" | 1.924 | 6.349 | 6" | 43.860 | 143.900 |
8mm | 0.120 | 0.398 | 32mm | 1.894 | 6.314 | 6-1/2" | 51.093 | 167.630 |
9mm | 0.152 | 0.498 | 1-3/8" | 2.303 | 7.550 | 7" | 59.432 | 196.000 |
3/8" | 0.170 | 0.557 | 35mm | 2.390 | 7.553 | 7-1/2" | 68.226 | 225.000 |
10mm | 0.189 | 0.620 | 36mm | 2.438 | 7.999 | 8" | 77.586 | 254.55 |
11mm | 0.228 | 0.748 | 38mm | 2.792 | 8.903 | 10" | 121.048 | 397.140 |
7/16" | 0.232 | 0.761 | 1-1/2" | 2.715 | 8.951 | |||
12mm | 0.271 | 0.889 | 40mm | 3.009 | 9.872 | |||
1/2" | 0.303 | 0.994 | 1-5/8" | 3.200 | 10.449 | |||
13mm | 0.318 | 1.043 | 1-3/4" | 3.712 | 12.179 | |||
14mm | 0.368 | 1.207 | 45mm | 3.807 | 12.555 | |||
9/16" | 0.383 | 1.256 | 1-7/8" | 4.260 | 13.977 | |||
15mm | 0.424 | 1.391 | 48mm | 4.330 | 14.205 | |||
5/8" | 0.473 | 1.551 | 50mm | 4.698 | 15.414 | |||
16mm | 0.481 | 1.578 | 2" | 4.848 | 15.906 | |||
17mm | 0.543 | 1.791 | 2-1/8" | 5.475 | 17.963 | |||
11/16" | 0.573 | 1.880 | 2-1/4" | 6.135 | 20.128 | |||
18mm | 0.610 | 2.001 | 60mm | 6.768 | 22.205 | |||
3/4" | 0.682 | 2.237 | 2-3/8" | 6.838 | 22.435 | |||
2-1/2" | 7.576 | 24.856 | ||||||
2-5/8" | 8.354 | 27.409 | ||||||
2-3/4" | 9.169 | 30.083 |
Alloy | Product form | Dimension |
INCONEL 718 AMS 5663 | Rod; age hardened | Dia=3.0 mm, Weight=18 m/kg |
INCONEL 718 AMS 5662 | Rod; solution treated | Dia=3.0 mm, Weight=18 m/kg |
INCONEL 718 AMS 5663 | Rod; age hardened | Dia=4.0 mm, Weight=10.15 m/kg |
INCONEL 718 AMS 5662 | Rod; pickled, solution treated | Dia=4.0 mm, Weight=10.15 m/kg |
ALLOY 718 AMS 5663 | Rod; annealed, aged & ground, cold drawn | Dia=7.5 mm, Weight=2.9 m/kg |
ALLOY 718 AMS 5662 | Rod; solution annealed, centerless ground, hot rolled | Dia=12.7 mm, Weight=1.0 kg/m |
INCONEL 718 AMS 5662 | Rod; solution annealed, centerless ground | Dia=15.88 mm, Weight=1.62 kg/m |
INCONEL 718 AMS 5662L | Rod; hot rolled, solution annealed, machined | Dia=16.0 mm, Weight=1.62 kg/m |
ALLOY 718 AMS 5662 | Rod; solution treated, machined, centerless ground | Dia=20.0 mm, Weight=2.47 kg/m |
ALLOY 718 AMS 5662 | Rod; HR, solution annealed, centerless ground | Dia=22.0 mm, Weight=3.18 kg/m |
ALLOY 718 AMS 5663 | Rod; aged, solution treated, centerless ground | Dia=22.0 mm, Weight=3.18 kg/m |
ALLOY 718 AMS 5663 | Rod; aged | Dia=25.4 mm, Weight=4.0 kg/m |
ALLOY 718 AMS 5662 | Rod; HR, solution annealed, ground | Dia=28.6 mm, Weight=5.4 kg/m |
ALLOY 718 AMS 5662 | Rod; solution annealed, hot rolled | Dia=30.0 mm, Weight=5.9 kg/m |
ALLOY 718 AMS 5663 | Rod; age hardened | Dia=30.0 mm, Weight=5.9 kg/m |
ALLOY 718 (53 Ni/18 Cr/5 Nb) | Rod; solution annealed, hot rolled | Dia=30.0 mm, Weight=5.9 kg/m |
ALLOY 718 AMS 5663 | Rod; age hardened | Dia=35.0 mm, Weight=8.2 kg/m |
INCONEL 718 AMS 5662 | Rod; HR, solution annealed, ground | Dia=38.1 mm, Weight=9.4 kg/m |
ALLOY 718 AMS 5663 | Rod; age hardened | Dia=41.28 mm, Weight=10.5 kg/m |
