While Monel K500 is considered to be akin to Alloy 400, the difference noticed between these two is that the former has added tensile strength and improved hardness properties. The precipitation hardening that occurs in the matrix of the alloy used to manufacture the Monel K500 seamless tube on account of the addition of Aluminium and Titanium, which leads to improvement in its mechanical properties. Although it is noted that the mechanical properties of the Ni K500 Cold Drawn Tube have been enhanced, partially due to the controlled heat treat cycles during its production.

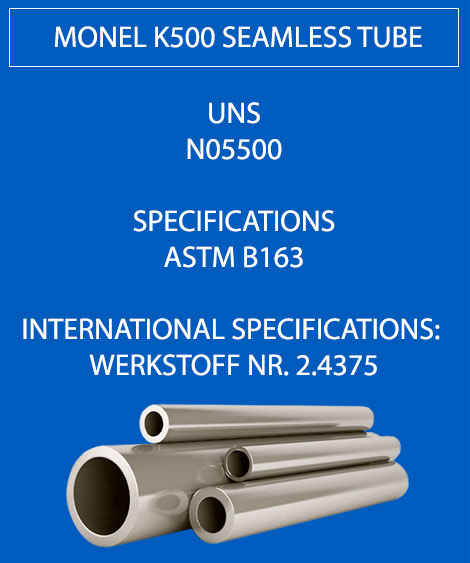

Monel K500 seamless tube
Alloy K500 Tubing
Ni K500 Cold Drawn Tube
Heat treatment of the Monel Alloy K500 Tubing generally involves solution and process annealing, which is then followed by an age hardening. The addition of aluminium and titanium are superintended for age hardening that occurs in this alloy. Solution annealing the Monel K500 Tube will affect the solution of any phases which could later affect the age hardening process in the alloy.
The Age hardening process is executed for a period of 16 hours at between a temperature range of 1100ºF to 1125ºF. This process is followed by furnace cooling the Monel K500 Tubing between 15ºF or 25ºF per hour to 900ºF for soft material But in the case of moderately cold-worked Alloy K500 Tubing, the cooling process is to last for about 8 hours. For fully cold-worked Nickel Alloy K500 Tube, the temperature for age hardening is between 980ºF to 1000ºF for six hours, after which it is to be furnace cooled as mentioned previously.
Monel K500 Tubing Standards | ASTM B163 / ASME SB163 |
---|---|
Monel K500 Seamless Tube Size | 3.35 mm OD To 101.6 mm OD |
Marking | All Alloy Monel K500 Tubing are marked as follows: Standard, Grade, OD, Thickness, Length, Heat No. (Or according to the customer’s request.) |
Alloy K500 Tubing Length | Single Random, Double Random, Standard & Cut length Tube |
Monel 2.4375 Tubing Finish | Polished, AP (Annealed & Pickled), BA (Bright & Annealed), MF |
Value Added Service | Draw & Expansion as per required Size & Length, Polish (Electro & Commercial) Annealed & Pickled Bending, Machining Etc. |
Specialize in | Alloy Monel K500 Capillary Tube & Other Odd Size Monel Alloy K500 Heat Exchanger & Condenser Tube |
Form | ‘U’ bent, Hollow, Hydraulic, LSAW, Boiler, Straight Tube, Tube Coil, Round, Rectangular, Square Etc |
Types of Monel grade K500 Tubing | Seamless, ERW, EFW, Welded, Fabricated Tube / Tubing |
Monel 2.4375 Tube wall thickness | 0.020" –0.220", (special wall thicknesses available) |
Monel grade K500 Tube End | Plain End, Beveled End, Treaded Tube |
Monel K500 Welded Tube Size | 6.35 mm OD To 152 mm OD |
We can also cut, thread, and groove Monel Alloy K500 Tube to meet your specifications. Monel K500 seamless tube Dimension ANSI/ ASME B36.10, B36.19, B2.1 |
Tube O.D. (in.) |
Wall Thickness of Tube (inches) | |||||||
---|---|---|---|---|---|---|---|---|
.028 | .035 | .049 | .065 | .083 | .095 | .109 | .120 | |
Working Pressure (psig) | ||||||||
1/8 | 7900 | 10100 | ||||||
1/4 | 3700 | 4800 | 7000 | 9500 | ||||
5/16 | 3700 | 5400 | 7300 | |||||
3/8 | 3100 | 4400 | 6100 | |||||
1/2 | 2300 | 3200 | 4400 | |||||
3/4 | 2200 | 3000 | 4000 | 4600 | ||||
1 | 2200 | 2900 | 3400 | 3900 | 4300 |
Monel 2.4375 Electropolished Tubing | Nickel Alloy K500 Rectangular Tube |
Nickel K500 Square Tubing | Monel Alloy K500 Polished Tube |
Monel grade K500 Tubing | Monel K500 UNS N05500 Fabricated Tube |
Nickel Alloy K500 Seamless Tube | Alloy K500 12mm Tube |
Alloy Monel K500 Welded Tube | Alloy K500 Seamless Tubing |
Monel Alloy K500 High Pressure Tube | ASTM B163 UNS N05500 Thin Wall Tubing |
Monel grade K500 Electropolished Tubes | Alloy K500 Cold Drawn Seamless Tube |
Monel K500 Hydraulic Tubing | ASTM B163 UNS N05500 Coiled Tube |
Monel K500 UNS N05500 ERW Tube | Alloy Monel K500 Electropolished Tube |
Nickel Alloy K500 Rectangular Tubing | Nickel K500 CDW Tube |
Alloy K500 Electropolish Tube | Monel K500 Capillary Tubing |
Alloy Monel K500 Small Diameter Tubing | Monel 2.4375 ERW Tubing |
Monel Alloy K500 High Pressure Tubing | Monel grade K500 High Pressure Tube |
Monel K500 Tubing | Nickel K500 Instrumentation tube |
Nickel Alloy K500 Tube | Nickel K500 Round Tube |
Alloy Monel K500 EFW Tube | ASTM B163 UNS N05500 Finned Tube |
Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
Monel K500 | 8.44 g/cm3 | 1350 °C (2460 °F) | Psi – 160000 , MPa – 1100 | Psi – 115000 , MPa – 790 | 20 % |
Grade | C | Mn | Si | S | Cu | Fe | Ni |
Monel K500 | 0.25 max | 1.5 max | 0.5 max | 0.010 max | 27.00 – 33.00 | 0.5 – 2 | 63.00 min |
STANDARD | WERKSTOFF NR. | UNS |
Monel K500 | 2.4375 | N05500 |
