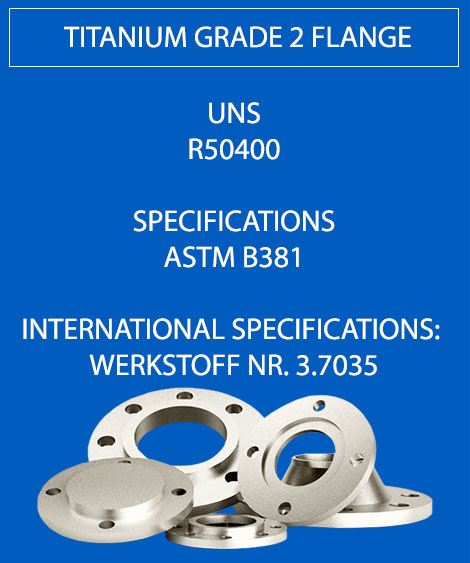

Titanium Grade 2 Flange
Purchase Titanium Gr 2 Slip on Flange at factory Price, View ASTM B381 UNS R50400 Blind Flange Dimensions
Amongst the various titanium grade alloys, the Titanium Grade 2 Flange is considered to be the most predominantly available one across global markets. This being said, it is important to note that grade 2 alloy is one of the 4 commercially pure titanium grades. Which means that the alloy has good ductile properties, in addition to having great formability and weldability. Therefore the Titanium Grade 2 Spectacle Blind Flange can be used in those industries where properties like ductility and weldability are highly valued characteristics.
Titanium Grade 2 Flange
Titanium Gr 2 Slip on Flange
ASTM B381 UNS R50400 Blind Flange
High Pressure Titanium Grade 2 Lap Joint Flange Supplier, Check Price list of Titanium Grade 2 Slip on Flange, Purchase Titanium Grade 2 Weld Neck Flange at factory price.
As typical behaviour of many flanges, the Titanium Grade 2 Weld Neck Flange provides for ease in accessing the pipe for cleaning, inspection or modification. A weld neck flange is recognised by its characteristically long, tapered hub. Unlike the WNRF which is meant to be used for high pressure applications, a Titanium Gr 2 Slip on Flange is intended to be used for low pressure based applications. Titanium Grade 2 Slip on Flange has a hole that matches the outside diameter of the pipe which enables the passage of pipe following which the flange is to be fillet welded from both insides as well as outside.
Table of Content
- What is Titanium Grade 2 Flange?
- Price List of Grade 2 Pure Titanium Flange
- Material Specification of Titanium Grade 2 Flange
- Dimensions of Titanium Alloy Grade 2 Class 150 Flange
- Most frequent types of ASTM B381 Titanium Grade 2 Flange
- international Specification Titanium UNS R50400 Flange
- Gr 2 Titanium Flange Equivalent Grade
- Mechanical Characteristics of Titanium 3.7165 Flange
- Chemical Equation Grade 2 Titanium Flange
- 100mm (4") Ti Alloy Grade 2 Flange Weight
Contrary to a slip on flange, the specified ASTM B381 UNS R50400 Blind Flange like a WNRF is meant to be used in a high pressured environment and is used to test the flow of media i.e. either gas or liquid between a pipe or vessel. Used in conjunction with a stub end fitting, the Titanium Grade 2 Lap Joint Flange is to be slid over the pipe.
| Titanium 3.7165 Flange Size Chart | 1/2" (15 NB) to 48" (1200NB) DN10~DN5000 |
|---|---|
| Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| ASTM B381 Titanium Grade 2 Flange JIS | 5K, 10 K, 16 K 20 K, 30 K, 40 K, 63 K |
| Titanium gr 2 Flange UNI | 6Bar 10Bar 16Bar 25Bar 40Bar |
| Ti Alloy Grade 2 FlangeEN | 6Bar 10Bar 16Bar 25Bar 40Bar |
| Coating | Oil Black Paint, Anti-rust Paint, Zinc Plated, Yellow Transparent, Cold and Hot Dip Galvanized |
| Titanium UNS R50400 SORF Flange Standards | ANSI/ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, GOST Flange, ASME/ANSI B16.5/16.36/16.47A/16.47B, MSS S44, ISO70051, JISB2220, BS1560-3.1, API7S-15, API7S-43, API605, EN1092 |
| Gr 2 Titanium Flange Pressure Rating ANSI | Class 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS |
| Titanium Grade 2 Flange Pressure Calculation in DIN | 6Bar 10Bar 16Bar 25Bar 40Bar / PN6 PN10 PN16 PN25 PN40, PN64 |
| Most common types of Titanium Alloy Grade 2 Flange | Forged / Threaded / Screwed / Plate |
| Titanium Grade 2 Flange Production technique |
|
| Titanium UNS R50400 Flange Connect Type/ Flange Face Type | Raised Face (RF), Ring Type Joint (RTJ), Flat Face (FF), Large Male-Female (LMF), Lap-Joint Face (LJF), Small Male-Female (SMF), Small Tongue, Large Tongue & Groove, Groove |
| Special design |
As per your drawing AS, ANSI, BS, DIN and JIS |
| Gr 2 Titanium Flange Test | Direct-reading Spectrograph, Hydrostatic testing machine, X-ray detector, UI trasonic flaw detector, Magnetic particle detector |
| ASTM B381 Titanium Grade 2 Flange Equipment | Press machine, Bending machine, Pushing Machine, electric bevelling machine, Sand-blasting machine etc |
| Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175 | |
Held wide stock of Titanium Grade 2 Spectacle Blind Flange, Best Price & Fast Delivery for Titanium Grade 2 Blind Flange, One Stop Shop For Titanium Gr 2 Pipe Flanges, Largest independent stockholder Titanium DIN 3.7035 Socket Weld Flanges
| Nominal Size |
Outside Diameter (OD) |
Min. Thickness (T) |
RF Dia. (R) |
No. of Bolt Holes | Diameter of Holes |
Bolt Circle (BC) |
SO Bore ID (SB) |
WN Bore ID (WB) |
Dia. Hub Base (HB) |
Dia. of Hub Top (HT) |
SO LTH (SL) |
WN LTH (WL) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1⁄2 | 3.50 | 0.38 | 1.38 | 4 | 0.62 | 2.38 | 0.88 | 0.62 | 1.19 | 0.84 | 0.56 | 1.81 |
| 3⁄4 | 3.88 | 0.44 | 1.69 | 4 | 0.62 | 2.75 | 1.09 | 0.82 | 1.50 | 1.05 | 0.56 | 2.00 |
| 1 | 4.25 | 0.50 | 2.00 | 4 | 0.62 | 3.12 | 1.36 | 1.05 | 1.94 | 1.32 | 0.62 | 2.12 |
| 11⁄4 | 4.62 | 0.56 | 2.50 | 4 | 0.62 | 3.50 | 1.70 | 1.38 | 2.31 | 1.66 | 0.75 | 2.19 |
| 11⁄2 | 5.00 | 0.62 | 2.88 | 4 | 0.62 | 3.88 | 1.95 | 1.61 | 2.56 | 1.90 | 0.81 | 2.38 |
| 2 | 6.00 | 0.69 | 3.62 | 4 | 0.75 | 4.75 | 2.44 | 2.07 | 3.06 | 2.38 | 0.94 | 2.44 |
| 21⁄2 | 7.00 | 0.81 | 4.12 | 4 | 0.75 | 5.50 | 2.94 | 2.47 | 3.56 | 2.88 | 1.06 | 2.69 |
| 3 | 7.50 | 0.88 | 5.00 | 4 | 0.75 | 6.00 | 3.57 | 3.07 | 4.25 | 3.50 | 1.12 | 2.69 |
| 31⁄2 | 8.50 | 0.88 | 5.50 | 8 | 0.75 | 7.00 | 4.07 | 3.55 | 4.81 | 4.00 | 1.19 | 2.75 |
| 4 | 9.00 | 0.88 | 6.19 | 8 | 0.75 | 7.50 | 4.57 | 4.03 | 5.31 | 4.50 | 1.25 | 2.94 |
| 5 | 10.00 | 0.88 | 7.31 | 8 | 0.88 | 8.50 | 5.66 | 5.05 | 6.44 | 5.56 | 1.38 | 3.44 |
| 6 | 11.00 | 0.94 | 8.50 | 8 | 0.88 | 9.50 | 6.72 | 6.07 | 7.56 | 6.63 | 1.50 | 3.44 |
| 8 | 13.50 | 1.06 | 10.62 | 8 | 0.88 | 11.75 | 8.72 | 7.98 | 9.69 | 8.63 | 1.69 | 3.94 |
| 10 | 16.00 | 1.12 | 12.75 | 12 | 1.00 | 14.25 | 10.88 | 10.02 | 12.00 | 10.75 | 1.88 | 3.94 |
| 12 | 19.00 | 1.19 | 15.00 | 12 | 1.00 | 17.00 | 12.88 | 12.00 | 14.38 | 12.75 | 2.12 | 4.44 |
| 14 | 21.00 | 1.31 | 16.25 | 12 | 1.12 | 18.75 | 14.14 | 13.25 | 15.75 | 14.00 | 2.19 | 4.94 |
| 16 | 23.50 | 1.38 | 18.50 | 16 | 1.12 | 21.25 | 16.16 | 15.25 | 18.00 | 16.00 | 2.44 | 4.94 |
| 18 | 25.00 | 1.50 | 21.00 | 16 | 1.25 | 22.75 | 18.18 | 17.25 | 19.88 | 18.00 | 2.62 | 5.44 |
| 20 | 27.50 | 1.62 | 23.00 | 20 | 1.25 | 25.00 | 20.20 | 19.25 | 22.00 | 20.00 | 2.81 | 5.62 |
| 22 | 29.50 | 1.75 | 25.25 | 20 | 1.38 | 27.25 | 22.22 | 21.25 | 24.25 | 22.00 | 3.07 | 5.82 |
| 24 | 32.00 | 1.81 | 27.25 | 20 | 1.38 | 29.50 | 24.25 | 23.25 | 26.12 | 24.00 | 3.19 | 5.94 |
| Titanium 3.7165 Flange | Titanium Grade 2 Blind Flange |
| Titanium UNS R50400 Slip on Flange | Titanium gr 2 Threaded Flange |
| Titanium 3.7165 Reducing Flange | Grade 2 Pure Titanium Socket Weld Flange |
| Titanium gr 2 Weld Neck Flanges | Titanium Grade 2 Lap Joint Flanges |
| ASTM B381 Titanium Grade 2 Long Weld Neck Flanges | Titanium 3.7165 Spectacle Blind Flanges |
| Titanium gr 2 Spades & Ring Spacers | Grade 2 Pure Titanium Nipoflange |
| Titanium Grade 2 5D Weldoflange | Grade 2 Titanium Flange Outlet |
| Titanium 3.7165 Forged Flanges | Ti Alloy Grade 2 Plate Flange |
| Titanium 3.7165 Ring Type Joint Flanges | Grade 2 Pure Titanium Raised Face Flanges |
| Titanium Grade 2 Tongue and Groove Flanges | Ti Alloy Grade 2 Male and Female Flange |
| Titanium gr 2 Reducing Flanges | Titanium 3.7165 ASME B16.5 Flanges |
| Grade 2 Titanium Flanges | Titanium UNS R50400 BS 10 Flanges |
| Titanium Grade 2 BS 4504 Flanges | Grade 2 Pure Titanium EN 1092-1 Flanges |
| ASTM B381 Titanium Grade 2 SORF Flange | Titanium 3.7165 BLRF Flange |
| Grade 2 Titanium WNRF Flange | Titanium UNS R50400 RTJ Flange |
| Titanium Grade 2 Series a Lap Joint Ring Flange | Grade 2 Pure Titanium Class 300 threaded flange |
| Titanium 3.7165 PN16 blind flange | Gr 2 Titanium Forged Socket Weld Pipe Flange |
| Titanium Grade 2 Class 300 slip on flange | Titanium gr 2 Slip On Weld Flange |
| Titanium UNS R50400 Forged steel slip on flanges | Titanium UNS R50400 Race face slip on flange |
| Grade 2 Titanium SWRF Flange | Gr 2 Titanium Forged blind flange |
| Titanium Grade 2 groove weld neck flange | ASTM B381 Titanium Grade 2 Socket Weld Hub Flange |
| Grade 2 Titanium threaded lap joint flange | Gr 2 Titanium Slip On Integral flange |
| Titanium Grade 2 Forged integral puddle flange | Titanium UNS R50400 table e long weld neck |
| Titanium 3.7165 Class 150 LBS Flange | Ti Alloy Grade 2 PN10 Forged Flanges |
| Titanium Grade 2 RTJ Flanges | Titanium gr 2 PN10 Plate Flanges |
| Titanium 3.7165 Tongue & Groove Flanges | Titanium Grade 2 Reducing Flanges |
| Titanium UNS R50400 Class 150 reducing threaded flange | Titanium UNS R50400 Class 150 Pipe Flange |
| ASTM B381 Titanium Grade 2 Class 150 Flange | Gr 2 Titanium Pipe Flanges |
| Titanium 3.7165 BS 10 Flanges | Titanium Alloy Grade 2 Class 150 Tongue & Groove Flanges |
| Titanium UNS R50400 BS 4504 pn16 flange | Titanium 3.7165 EN 1092-1 flat flange |
| Gr 2 Titanium Raised Face Flanges | ASTM B381 Titanium Grade 2 Flat Faced Plate Flanges |
| Grade 2 Pure Titanium Bleed Rings | Titanium 3.7165 Class 150 Weldoflange |
| Titanium UNS R50400 Class 150 LBS Nipo Flange | Titanium 3.7165 Long Weld Neck Flanges |
| ASTM B381 Titanium Grade 2 Lap Joint Pipe Flanges | ASTM B381 Titanium Grade 2 PN16 Screwed Flanges |
Check Availability of Titanium UNS R50400 Flanges, Ask for free sample of ANSI B16.5 Class 300 Flange. Ti Gr 2 Blind Flanges are available in different sizes & schedules. Buy directly from ASME SB381 Titanium Gr 2 Lap Joint Flange stockist, Top-notch supplier of DIN 3.7035 Flange
| UNS: |
R50400 |
|
Specifications: |
ASME SB-381 |
Different Types of Gr 2 Titanium Flange
Titanium gr 2 Weld Neck Flanges
Grade 2 Pure Titanium Socket Weld Flange
ASME B16.5 Titanium 3.7165 Flanges
Titanium Grade 2 Class 300 slip on flange
| STANDARD | WERKSTOFF NR. | UNS |
| Titanium Gr. 2 | 3.7035 | R50400 |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Titanium Gr. 2 | 4.5 g/cm3 | 1665 °C (3030 °F) | Psi – 49900 , MPa – 344 | Psi – 39900 , MPa – 275 | 20 % |
| Grade | Ti | C | Fe | H | N | O | Al | V |
| Ti Grade2 | 99.2 min | 0.1 max | 0.3 max | 0.015 max | 0.03 max | 0.25 max | – | – |
Largest distributor of small-quantity Gr2 Ti. Alloy Weld Neck Flange, Most recognized manufacturer of Titanium Gr2 Industrial Flanges, Global sales network of Titanium Gr2 RTJ Flange, Exporter of Gr 2 Titanium WNRF Flanges. Buy Certified & Tested ASTM B381 Titanium Gr 2 Threaded Flanges, Titanium Grade 2 Screwed Flanges.
| Standard | Class | Diameter | Bolt Circle Diameter | Number of Bolts | Bolt Size | Diameter of Bolt Hole |
|---|---|---|---|---|---|---|
| AS 4087 Flanges | PN14 Flanges | 215 | 178 | 4 | M16 | 18 |
| PN16 Flanges | 215 | 178 | 4 | M16 | 18 | |
| PN21 Flanges | 230 | 191 | 8 | M16 | 18 | |
| PN35 Flanges | 230 | 191 | 8 | M16 | 18 | |
| AS 2129 Flanges | Table C Flanges | 215 | 178 | 4 | 16 | 18 |
| Table D Flanges | 215 | 178 | 4 | 16 | 18 | |
| Table E Flanges | 215 | 178 | 8 | 16 | 18 | |
| Table F Flanges | 230 | 191 | 8 | 16 | 18 | |
| Table H Flanges | 230 | 191 | 8 | 16 | 18 | |
| Table J Flanges | 230 | 191 | 8 | 19 | 22 | |
| ANSI B16.5 Flanges | ANSI 150 Flanges | 229 | 191 | 8 | 16 | 19 |
| ANSI 300 Flanges | 254 | 200 | 8 | 19 | 22 | |
| ANSI 600 Flanges | 273 | 216 | 8 | 22 | 25 | |
| ANSI 900 Flanges | 292 | 235 | 8 | 29 | 32 | |
| ANSI 1500 Flanges | 311 | 241 | 8 | 32 | 35 | |
| ISO 7005 (DIN) Flanges | PN6 Flanges | 210 | 170 | 4 | M16 | 18 |
| PN10 Flanges | 220 | 180 | 8 | M16 | 24 | |
| PN16 Flanges | 220 | 180 | 8 | M16 | 18 | |
| PN20 Flanges | 230 | 190.5 | 8 | M16 | 18 | |
| PN25 Flanges | 235 | 190 | 8 | M20 | 22 | |
| PN40 Flanges | 235 | 190 | 8 | M20 | 22 |
