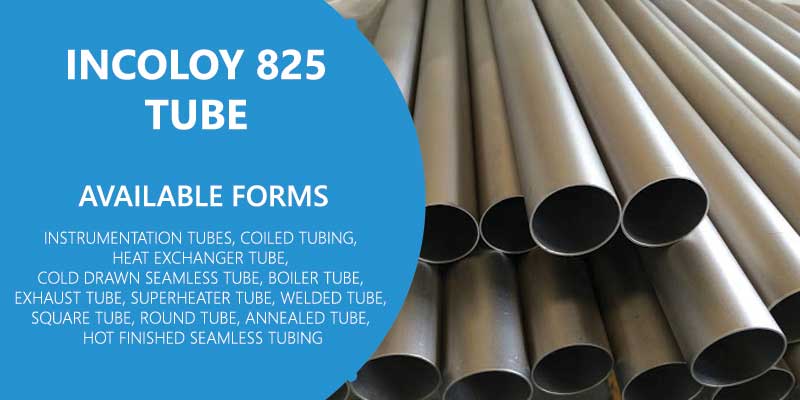

Incoloy 825 seamless tube has good resistance in impartial chloride media. Incoloy 825 Cold Rolled Coiled Tubes is titanium steadied fully austenitic nickel iron chromium alloy with accompaniments of copper and molybdenum. The nickel content in Incoloy 825 Bright Annealed Tubes is enough for resistance to chloride ion strain corrosion cracking. Incoloy 825 seamless tube is highly resistant to corrosion and assistances to evade pressure corrosion cracking.
Alloy 825 Tubing is an austenitic nickel iron chromium alloy also well-defined by additions of molybdenum, copper and titanium. It was industrialized to provide excellent resistance to numerous corrosive situations, both rusting and reducing. Whereas Ni 825 Cold Drawn Tube has superb resistance to both reducing and rusting acids, to stress corrosion fast, and to contained attacks such as pitting and gap corrosion. Incoloy 825 Tubes is particularly resistant to sulfuric and phosphoric acids. Although not fully resistant to pressure corrosion fast in boiling magnesium chloride
Incoloy 825 Seamless Tube
Alloy 825 Tubing
Ni 825 Cold Drawn Tube
Incoloy 825 Tubing the major difference between Inconel 625 and 825 is the nickel content, Inconel 625 contains about 58% of nickel whereas Inconel 825 contains about 36-48% of nickel. Moreover, they have dissimilar in melting points as well. The melting point of Inconel 625 is 1350◦C, whereas it is 1400◦C for Inconel 825, whereas Alloy 825 Tube is a nickel-iron-chromium alloy with accompaniments of molybdenum, copper and titanium.
Incoloy 825 Tube
825 Nickel Alloy Tubing Mentioned to as Nickel Alloy 825, Incoloy 825 is a nickel-iron-chromium alloy with minor quantities of molybdenum, copper, and titanium. This combination gives Incoloy 825 improved corrosion resistance in the strictest environments. Inconel 825 Tube and tubing has great resistance to plummeting environments, like those covering sulfuric and phosphoric acids. Helping resistance to pitting and crevice corrosion is one of the chief welfares of the molybdenum. Resistance to a diversity of rusting substances such as nitric acid, nitrates, and rusting salts comes from the chromium gratified.
Standard |
ASTM, AISI, GB, JIS, customers' requests available |
Size |
Round Tube: OD: 16-119mm or customized |
Thickness |
0.25mm-3.0mm |
Length |
6m or according to customers' request |
Sample |
Free sample is available, but freight should be paid by you |
Tolerance
|
Outer diameter: ±0.2mm Thickness: ±0.05mm Length: ±0.5mm |
Ends |
In plain end or bevelled ends or as your requirements |
Marking | Tubing are marked as follows: Standard, Grade, OD, Thickness, Length, Heat No. (Or according to the customer’s request.) |
---|---|
Welding Line Type |
ERW (Electrical Resistance Weld) |
Finishing |
A. Sanded B. Gloss #400,Mirror #600 - #1000 D. Wood Grain C. Brushed E. Embossed, Threaded |
Form | ‘U’ bent, Hollow, Hydraulic, LSAW, Boiler, Straight Tube, Tube Coil, Round, Rectangular, Square Etc |
End | Plain End, Beveled End, Treaded Tube |
Application |
Decorations, constructions, food industry, etc. |
Certification |
ISO, SGS |
Rectangle Pipe Size |
10*30, 10*40, 10*50, 20*10, 23*11, 24*12, 25*13, 28*25, 28*13, 29*14, 30*15, 30*20, 30*22, 34*22, 36*23, 50*25, 60*30, 75*45, 95*45 mm |
Thickness |
exact 0.25, 0.28, 0.32, 0.37, 0.41, 0.51, 0.61, 0.71, 0.91, 1.11, 1.15, 1.41 mm |
Value Added Service | Draw & Expansion as per required Size & Length, Polish (Electro & Commercial) Annealed & Pickled Bending, Machining Etc. |
Round Pipe Size |
16, 17, 18, 19, 20, 21, 22, 23, 25, 28, 31.8, 35, 36, 38.1, 48, 50.8, 60, 63.5, 76.2, 89, 101, 114 mm |
Square Pipe Size |
17, 18, 19, 20, 21, 22, 23, 24, 25, 28, 30, 36, 38, 50 mm |
Length |
6m or according to customer’s request |
Test |
Direct-reading Spectrograph, Hydrostatic testing machine, X-ray detector, UI trasonic flaw detector, Magnetic particle detector |
Equipment |
Press machine, Bending machine, Pushing Machine, electric bevelling machine Sand-blasting machine, etc |
Outer diameter |
6.35-219mm |
Process method |
Code drawn, annealed with nitrogen protection, ultrasonic, automatic shape, polished |
Origin |
West Europe / Japanese / Indian / USA / Korean / American / European |
Test Certificates |
Manufacturer Test Certificate as per EN 10204 / 3.1B, Raw Materials Certificate, 100% Radiography Test Report, Third Party Inspection Report |
Tube O.D. (in.) |
Wall Thickness of Tube (inches) | |||||||
---|---|---|---|---|---|---|---|---|
.028 | .035 | .049 | .065 | .083 | .095 | .109 | .120 | |
Working Pressure (psig) | ||||||||
1/8 | 7900 | 10100 | ||||||
1/4 | 3700 | 4800 | 7000 | 9500 | ||||
5/16 | 3700 | 5400 | 7300 | |||||
3/8 | 3100 | 4400 | 6100 | |||||
1/2 | 2300 | 3200 | 4400 | |||||
3/4 | 2200 | 3000 | 4000 | 4600 | ||||
1 | 2200 | 2900 | 3400 | 3900 | 4300 |
Price of Incoloy Alloy 825 Tube | Incoloy 825 Tubing Price in India (INR) | Nickel Alloy 825 Tube Price in USD | 825 Incoloy Tubing Price in UAE Dirham |
---|---|---|---|
COLD DRAWN REDRAW QUALITY TUBE INCOLOY 825, GRADE UNS NO.825 ( SIZE : 50.80MM OD X 9.00MM AVERAGE WALL X 12000 MM LENGTH | INR 569 | $7.60 | 27.92 UAE Dirham |
WELDED TUBE ROUND 2.4858 INCOLOY 825 9,53 X 0,6 MM EN 10217-7 | INR 1,450 | $19.37 | 71.14 UAE Dirham |
WELDED TUBE ROUND 2.4858 INCOLOY 825 9,53X0,6 MM | INR 1,398 | $18.67 | 68.59 UAE Dirham |
COLD DRAWN REDRAW QUALITY TUBE INCOLOY 825, GRADE UNS NO.825 ( SIZE : 50.80MM OD X 9.00MM AVERAGE WALL X 12000 MM LENGTH | INR 569 | $7.60 | 27.92 UAE Dirham |
Nickel 825 Electropolished Tubing | Inconel 825 din 2.4858 Rectangular Tube |
Inconel 825 ASTM B423 Square Tubing | Alloy 825 Polished Tube |
Inconel 825 UNS N08825 Tubing | ASTM B423 UNS N08825 Fabricated Tube |
Inconel 825 din 2.4858 Seamless Tube | Inconel alloy 825 12mm Tube |
Nickel Alloy 825 Welded Tube | Inconel alloy 825 Seamless Tubing |
Alloy 825 High Pressure Tube | 825 Inconel Thin Wall Tubing |
Inconel 825 UNS N08825 Electropolished Tubes | Inconel alloy 825 Cold Drawn Seamless Tube |
Inconel 825 Hydraulic Tubing | 825 Inconel Coiled Tube |
ASTM B423 UNS N08825 ERW Tube | Nickel Alloy 825 Electropolished Tube |
Inconel 825 din 2.4858 Rectangular Tubing | Inconel 825 ASTM B423 CDW Tube |
Inconel alloy 825 Electropolish Tube | Inconel 825 Capillary Tubing |
Nickel Alloy 825 Small Diameter Tubing | Nickel 825 ERW Tubing |
Alloy 825 High Pressure Tubing | Inconel 825 UNS N08825 High Pressure Tube |
Inconel 825 Tubing | Inconel 825 ASTM B423 Instrumentation tube |
Inconel 825 din 2.4858 Tube | Inconel 825 ASTM B423 Round Tube |
Nickel Alloy 825 EFW Tube | 825 Inconel Finned Tube |
Grade | C | Mn | Si | S | Cu | Fe | Ni | Cr | Al | Ti |
825 | 0.05 max | 1.00 max | 0.5 max | 0.03 max | 1.50 – 3.00 | 22.00 min | 38.00 – 46.00 | 19.50 – 23.50 | 0.02 max | 0.06 – 1.20 |
Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
825 | 8.14 g/cm3 | 1400 °C (2550 °F) | Psi – 80,000 , MPa – 550 | Psi – 32,000 , MPa – 220 | 30 % |
STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN | OR |
Incoloy 825 | 2.4858 | N08825 | NCF 825 | NA 16 | ЭП703 | NFE30C20DUM | NiCr21Mo | XH38BT |
UNS: |
N08825 |
Specifications: |
ASTM B423, ASTM B829, ASTM B705, ASTM B775, ASTM B423, ASTM B704, ASTM B751 |
international Specifications: |
DIN 17751, ISO 6207, VdTüV 432 |
Wall Thickness | Incoloy 825 Tube Sizes ( O.D.) |
---|---|
.010 | 1/16" , 1/8" , 3/16" |
.020 | 1/16" , 1/8" , 3/16" , 1/4" , 5/16" , 3/8" |
.012 | 1/8" |
.016 | 1/8" , 3/16" |
.028 | 1/8" , 3/16" , 1/4" , 5/16" , 3/8" , 1/2" , 3/4" , 1" , 1 1/2" , 2" |
.035 | 1/8" , 3/16" , 1/4" , 5/16" , 3/8" , 7/16" , 1/2" , 16" , 5/8" , 3/4" , 7/8" , 1" , 1 1/4" , 1 1/2" , 1 5/8" , 2" , 2 1/4" |
.049 | 3/16" , 1/4" , 5/16" , 3/8" , 1/2" , 16" , 5/8" , 3/4" , 7/8" , 1" , 1 1/8" , 1 1/4" , 1 1/2" , 1 5/8" , 2" , 2 1/4" |
.065 | 1/4" , 5/16" , 3/8" , 1/2" , 16" , 5/8" , 3/4" , 7/8" , 1" , 1 1/4" , 1 1/2" , 1 5/8" , 1 3/4" , 2" , 2 1/2" , 3" |
.083 | 1/4" , 3/8" , 1/2" , 5/8" , 3/4" , 7/8" , 1" , 1 1/4" , 1 1/2" , 1 5/8" , 1 7/8" , 2" , 2 1/2" ,3" |
.095 | 1/2" , 5/8" , 1" , 1 1/4" , 1 1/2" , 2" |
.109 | 1/2" , 3/4" , 1" , 1 1/4" , 1 1/2" , 2" |
.120 | 1/2" , 5/8" , 3/4" , 7/8" , 1" , 1 1/4" , 1 1/2" , 2" , 2 1/4" , 2 1/2" , 3" |
.125 | 3/4" , 1" , 1 1/4" , 1 1/2" , 2" , 3" , 3 1/4" |
.134 | 1" |
.250 | 3" |
.375 | 3 1/2" |
Types of Incoloy 825 Tube | Out diameter (OD) | Wall thickness | Length |
---|---|---|---|
NB Sizes (in stock) | 1/8” ~ 8” | SCH 5 / SCH 10 / SCH 40 / SCH 80 / SCH 160 | Upto 6 Meters |
Incoloy 825 Seamless Tube (Custom Sizes) | 5.0mm ~ 203.2mm | As per requirement | Upto 6 Meters |
Incoloy 825 Welded Tube (in Stock + Custom Sizes) | 5.0mm ~ 1219.2mm | 1.0 ~ 15.0 mm | Upto 6 Meters |
