Typically, a near alpha phase component such as the Titanium Grade 8 Seamless Tube is much stronger and exhibits less ductility in comparison to a beta phase product. This is on account of a larger number of slip planes noticed in the beta phase component as opposed to the alpha or near the alpha phased product. Hence, we highly recommend using the UNS R54810 Titanium Polished Bars for those applications where ductility is not considered to be a major requirement and a high tensile strength is considered to be characteristically important.

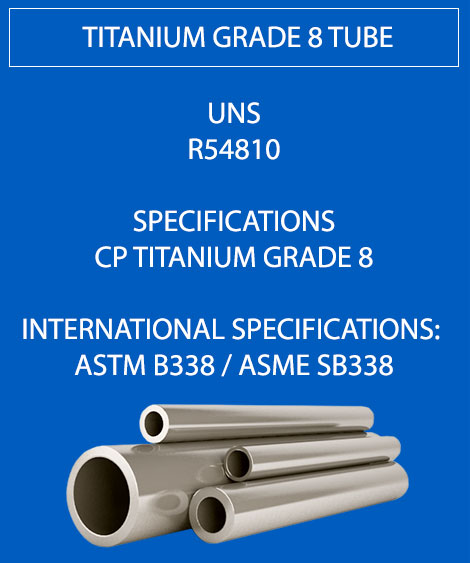

Titanium Grade 8 Seamless Tube
Titanium gr 8 Tubing
Ti grade 8 Tubes
Titanium based alloy products like the Alloy Grade 8 Flat Bar are known to have outstanding resistance to seawater. This is one reason why they are considered to be ideal for use in marine engineering applications. Hence, the Grade 8 Ti. Alloy Black Bar is a part of many types of equipment that form a portion of boats that are normally exposed to seawater.
In the case of the aerospace industry, the Titanium Gr 8 Rod is useful because of its low weight properties and resistance to elevated temperatures. The tensile strength properties of the near alpha phased Ti Grade 8 Flat bar is also an important deciding factor for their use in the aerospace industry. In order to optimise the high tensile strength properties of the Titanium grade 8 Bar, this near alpha phase can be stress relieved and annealed.
Specifications | ASTM B338 / ASME SB338 |
Dimensions | ASTM, ASME |
Length | Single Random, Double Random & Cut Length. |
End | Plain End, Beveled End, Threaded |
Type | Seamless / ERW / Welded / Fabricated / LSAW Tubes |
Form | Round, Square, Rectangular, Hydraulic Etc |
Tubes Size |
6 mm OD x 0.7 mm to 50.8 mm OD x 3 mm thk. |
Schedule | SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS |
Wall | Sizes ( O.D.) |
---|---|
.010 | 1/16" , 1/8" , 3/16" |
.020 | 1/16" , 1/8" , 3/16" , 1/4" , 5/16" , 3/8" |
.012 | 1/8" |
.016 | 1/8" , 3/16" |
.028 | 1/8" , 3/16" , 1/4" , 5/16" , 3/8" , 1/2" , 3/4" , 1" , 1 1/2" , 2" |
.035 | 1/8" , 3/16" , 1/4" , 5/16" , 3/8" , 7/16" , 1/2" , 16" , 5/8" , 3/4" , 7/8" , 1" , 1 1/4" , 1 1/2" , 1 5/8" , 2" , 2 1/4" |
.049 | 3/16" , 1/4" , 5/16" , 3/8" , 1/2" , 16" , 5/8" , 3/4" , 7/8" , 1" , 1 1/8" , 1 1/4" , 1 1/2" , 1 5/8" , 2" , 2 1/4" |
.065 | 1/4" , 5/16" , 3/8" , 1/2" , 16" , 5/8" , 3/4" , 7/8" , 1" , 1 1/4" , 1 1/2" , 1 5/8" , 1 3/4" , 2" , 2 1/2" , 3" |
.083 | 1/4" , 3/8" , 1/2" , 5/8" , 3/4" , 7/8" , 1" , 1 1/4" , 1 1/2" , 1 5/8" , 1 7/8" , 2" , 2 1/2" ,3" |
.095 | 1/2" , 5/8" , 1" , 1 1/4" , 1 1/2" , 2" |
.109 | 1/2" , 3/4" , 1" , 1 1/4" , 1 1/2" , 2" |
.120 | 1/2" , 5/8" , 3/4" , 7/8" , 1" , 1 1/4" , 1 1/2" , 2" , 2 1/4" , 2 1/2" , 3" |
.125 | 3/4" , 1" , 1 1/4" , 1 1/2" , 2" , 3" , 3 1/4" |
.134 | 1" |
.250 | 3" |
.375 | 3 1/2" |
Types of Grade 8 Titanium Tube | Out diameter (OD) | Wall thickness | Length |
---|---|---|---|
NB Sizes (in stock) | 1/8” ~ 8” | SCH 5 / SCH 10 / SCH 40 / SCH 80 / SCH 160 | Upto 6 Meters |
Grade 8 Titanium Seamless Tube (Custom Sizes) | 5.0mm ~ 203.2mm | As per requirement | Upto 6 Meters |
Grade 8 Titanium Welded Tube (in Stock + Custom Sizes) | 5.0mm ~ 1219.2mm | 1.0 ~ 15.0 mm | Upto 6 Meters |
Gr 8 Titanium Electropolished Tubing | Titanium gr 8 Rectangular Tube |
Ti Alloy Grade 8 Square Tubing | Titanium Alloy Grade 8 Polished Tube |
ASME SB330 Ti 8 Tubing | Gr.8 Ti Fabricated Tube |
Titanium gr 8 Seamless Tube | Grade 8 Titanium 12mm Tube |
Grade 8 Pure Titanium Welded Tube | Grade 8 Titanium Seamless Tubing |
Titanium Alloy Grade 8 High Pressure Tube | ASTM B337 Titanium Grade 8 Thin Wall Tubing |
ASME SB330 Ti 8 Electropolished Tubes | Grade 8 Titanium Cold Drawn Seamless Tube |
Titanium Grade 8 Hydraulic Tubing | ASTM B337 Titanium Grade 8 Coiled Tube |
Gr.8 Ti ERW Tube | Grade 8 Pure Titanium Electropolished Tube |
Titanium gr 8 Rectangular Tubing | Ti Alloy Grade 8 CDW Tube |
Grade 8 Titanium Electropolish Tube | Titanium Grade 8 Capillary Tubing |
Grade 8 Pure Titanium Small Diameter Tubing | Gr 8 Titanium ERW Tubing |
Titanium Alloy Grade 8 High Pressure Tubing | ASME SB330 Ti 8 High Pressure Tube |
Titanium Grade 8 Tubing | Ti Alloy Grade 8 Instrumentation tube |
Titanium gr 8 Tube | Ti Alloy Grade 8 Round Tube |
Grade 8 Pure Titanium EFW Tube | ASTM B337 Titanium Grade 8 Finned Tube |
Element | Content (%) |
---|---|
Aluminum, Al | 7.35 - 8.35 |
Vanadium, V | 0.75 - 1.25 |
Molybdenum, Mo | 0.75 - 1.25 |
Iron, Fe | 0.3 max |
Oxygen, O | 0.12 max |
Carbon, C | 0.08 max |
Nitrogen, N | 0.05 max |
Hydrogen, H | 0.0125 max |
Titanium, Ti | Remainder |
Properties | Metric | Imperial |
---|---|---|
Tensile strength | 937 MPa | 136000 psi |
Yield strength | 910 MPa | 132000 psi |
Poisson’s ratio | 0.32 | 0.32 |
Elastic modulus | 120 GPa | 17400 ksi |
Shear modulus | 46 GPa | 6670 ksi |
Elongation at break | 18% | 18% |
Hardness, Brinell | 334 | 334 |
Hardness, Knoop | 363 | 363 |
Hardness, Rockwell C | 36 | 36 |
Hardness, Vickers | 349 | 349 |
STANDARD | UNS |
Grade 8 | R54810 |
Tube O.D. (in.) |
Wall Thickness of Tube (inches) | |||||||
---|---|---|---|---|---|---|---|---|
.028 | .035 | .049 | .065 | .083 | .095 | .109 | .120 | |
Working Pressure (psig) | ||||||||
1/8 | 7900 | 10100 | ||||||
1/4 | 3700 | 4800 | 7000 | 9500 | ||||
5/16 | 3700 | 5400 | 7300 | |||||
3/8 | 3100 | 4400 | 6100 | |||||
1/2 | 2300 | 3200 | 4400 | |||||
3/4 | 2200 | 3000 | 4000 | 4600 | ||||
1 | 2200 | 2900 | 3400 | 3900 | 4300 |
