Generally made of really small diameters the Nickel B2 Capillary Tube is mainly used for application in throttling devices seen in both refrigeration and the air conditioning systems. Since capillary tubes are very long in terms of their length and these tubes are often coiled to several turns in order to occupy less space.

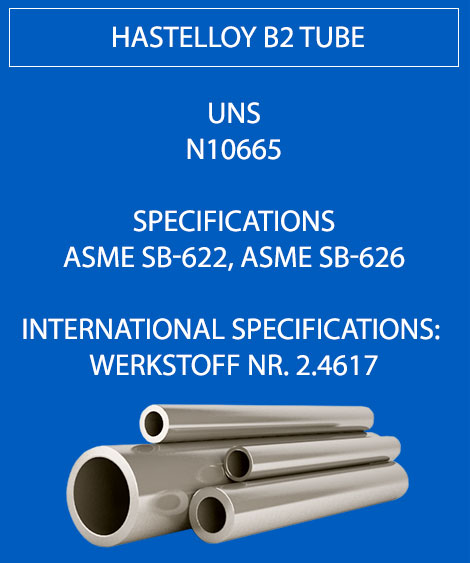

Hastelloy B2 tube
Alloy B3 Seamless Tubing
Nickel B2 Capillary Tube
The distinguishing feature of the Hastelloy Alloy B3 Tubing is its ability to maintain excellent ductile properties even during transient exposures to intermediate temperature settings, which are experienced consistently during heat treatments accompanying any fabrication process. The Thermal stability of Alloy B3 Seamless Tubing tends to be far superior in comparison to alloy B-2 tubes. Additionally, the Hastelloy B3 Tubing exhibits excellent resistance to both knife line along with heat affected zone attack as well.
The Hastelloy B2 tube offers a significant level of resistance to reducing conditions, especially when these environments contain corrosive compounds such as hydrogen chloride, sulfuric, acetic and phosphoric acids. Similar to Alloy B3, the Alloy B2 Tube is very resistant to hydrochloric acid at all concentrations and across varying temperatures. This nickel based Alloy B2 Tube could be used in an as welded condition due to its resistance to the formation of grain boundary carbide precipitates, which occurs during welding in the weld heat-affected zone.
Specifications | ASTM B619, B622 / ASME SB619, SB622 |
Dimensions | ASTM, ASME and API |
Alloy B2 Tubes Size |
6 mm OD x 0.7 mm to 50.8 mm OD x 3 mm thk. |
Type | Seamless / ERW / Welded / Fabricated / LSAW Tubes |
Form | Round, Square, Rectangular, Hydraulic Etc |
Schedule | SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS |
Length | Single Random, Double Random & Cut Length. |
End | Plain End, Beveled End, Treaded |
Wall | Sizes ( O.D.) |
---|---|
.010 | 1/16″ , 1/8″ , 3/16″ |
.020 | 1/16″ , 1/8″ , 3/16″ , 1/4″ , 5/16″ , 3/8″ |
.012 | 1/8″ |
.016 | 1/8″ , 3/16″ |
.028 | 1/8″ , 3/16″ , 1/4″ , 5/16″ , 3/8″ , 1/2″ , 3/4″ , 1″ , 1 1/2″ , 2″ |
.035 | 1/8″ , 3/16″ , 1/4″ , 5/16″ , 3/8″ , 7/16″ , 1/2″ , 16″ , 5/8″ , 3/4″ , 7/8″ , 1″ , 1 1/4″ , 1 1/2″ , 1 5/8″ , 2″ , 2 1/4″ |
.049 | 3/16″ , 1/4″ , 5/16″ , 3/8″ , 1/2″ , 16″ , 5/8″ , 3/4″ , 7/8″ , 1″ , 1 1/8″ , 1 1/4″ , 1 1/2″ , 1 5/8″ , 2″ , 2 1/4″ |
.065 | 1/4″ , 5/16″ , 3/8″ , 1/2″ , 16″ , 5/8″ , 3/4″ , 7/8″ , 1″ , 1 1/4″ , 1 1/2″ , 1 5/8″ , 1 3/4″ , 2″ , 2 1/2″ , 3″ |
.083 | 1/4″ , 3/8″ , 1/2″ , 5/8″ , 3/4″ , 7/8″ , 1″ , 1 1/4″ , 1 1/2″ , 1 5/8″ , 1 7/8″ , 2″ , 2 1/2″ ,3″ |
.095 | 1/2″ , 5/8″ , 1″ , 1 1/4″ , 1 1/2″ , 2″ |
.109 | 1/2″ , 3/4″ , 1″ , 1 1/4″ , 1 1/2″ , 2″ |
.120 | 1/2″ , 5/8″ , 3/4″ , 7/8″ , 1″ , 1 1/4″ , 1 1/2″ , 2″ , 2 1/4″ , 2 1/2″ , 3″ |
.125 | 3/4″ , 1″ , 1 1/4″ , 1 1/2″ , 2″ , 3″ , 3 1/4″ |
.134 | 1″ |
.250 | 3″ |
.375 | 3 1/2″ |
B2 Hastelloy Electropolished Tubing | Hastelloy DIN 2.4617 Rectangular Tube |
Hastelloy Alloy B3 Square Tubing | Alloy B3 Polished Tube |
Hastelloy 2.4600 Tubing | Hastelloy UNS N010675 Fabricated Tube |
Hastelloy DIN 2.4617 Seamless Tube | Nickel Alloy B2 12mm Tube |
Nickel B2 Welded Tube | Nickel Alloy B2 Seamless Tubing |
Alloy B3 High Pressure Tube | ASTM B619 UNS N10665 Thin Wall Tubing |
Hastelloy 2.4600 Electropolished Tubes | Nickel Alloy B2 Cold Drawn Seamless Tube |
Hastelloy B2 Hydraulic Tubing | ASTM B619 UNS N10665 Coiled Tube |
Hastelloy UNS N010675 ERW Tube | Nickel B2 Electropolished Tube |
Hastelloy DIN 2.4617 Rectangular Tubing | Hastelloy Alloy B3 CDW Tube |
Nickel Alloy B2 Electropolish Tube | Hastelloy B2 Capillary Tubing |
Nickel B2 Small Diameter Tubing | B2 Hastelloy ERW Tubing |
Alloy B3 High Pressure Tubing | Hastelloy 2.4600 High Pressure Tube |
Hastelloy B2 Tubing | Hastelloy Alloy B3 Instrumentation tube |
Hastelloy DIN 2.4617 Tube | Hastelloy Alloy B3 Round Tube |
Nickel B2 EFW Tube | ASTM B619 UNS N10665 Finned Tube |
Tube O.D. (in.) |
Wall Thickness of Tube (inches) | |||||||
---|---|---|---|---|---|---|---|---|
.028 | .035 | .049 | .065 | .083 | .095 | .109 | .120 | |
Working Pressure (psig) | ||||||||
1/8 | 7900 | 10100 | ||||||
1/4 | 3700 | 4800 | 7000 | 9500 | ||||
5/16 | 3700 | 5400 | 7300 | |||||
3/8 | 3100 | 4400 | 6100 | |||||
1/2 | 2300 | 3200 | 4400 | |||||
3/4 | 2200 | 3000 | 4000 | 4600 | ||||
1 | 2200 | 2900 | 3400 | 3900 | 4300 |
Grade | C | Mn | Si | S | Co | Ni | Cr | Fe | Mo | P |
B2 | 0.010 max | 1.00 max | 0.08 max | 0.03 max | 2.50 max | 50.99 min* | 14.50 – 16.50 | 4.00 – 7.00 | 15.00 – 17.00 | 0.04 max |
Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
Hastelloy B2 | 8.89 g/cm3 | 1370 °C (2500 °F) | Psi – 1,15,000 , MPa – 790 | Psi – 52,000 , MPa – 355 | 40 % |
STANDARD | WERKSTOFF NR. | UNS | JIS | GOST | EN | OR |
Hastelloy B2 | 2.4617 | N10665 | NW 0276 | ХН65МВУ | NiMo16Cr15W | ??760 |
UNS: |
N10665 |
Specifications: |
ASME SB-622, ASME SB-626 |
