Aside from having good creep resistance and oxidation resistance, the Inconel 601 Fittings are known to have good mechanical properties even at elevated temperature settings. In fact, the alloy used in the manufacture of Inconel 601 Stub End tends to exhibit higher mechanical properties, in comparison to Inconel 600. This is because of the addition of aluminium in the alloy of this grade, which in turn enhances its properties.

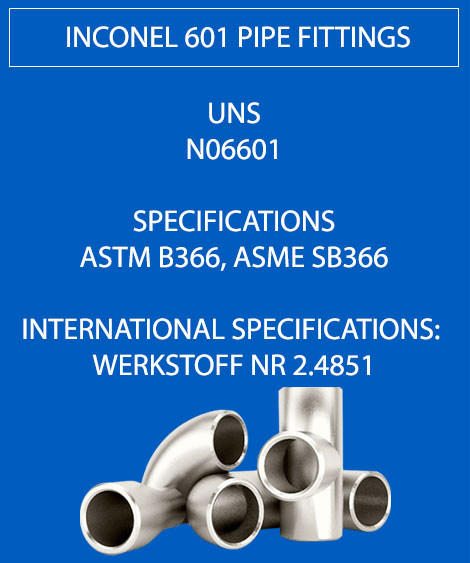

Inconel 601 Pipe Fittings
Alloy 601 Reducer
Inconel UNS N06601 Elbow
Thereby making the Inconel 601 pipe fittings, a very commercially viable option for applications involving industries such as Heat Treating Equipment, Petrochemical Processing, Industrial Furnaces as well as for use in Gas Turbine Components. Along with Incoloy 601, the following trade names can be used for Alloy 601i.e. Nicrofer 6023, Nicrimphy 601, and Pyromet 601. Other important properties of the commonly used Inconel UNS N06601 Elbow includes ability to withstand a high mechanical strength along with excellent carburization properties as well as good resistance to corrosion, especially in aqueous media.
Since the material can be readily formed the Alloy 601 Elbow can be customized to any angle apart from the usually manufactured 45 or 90 degrees and the rarely used 22.5 degree ones. One key feature to be highlighted about the Alloy 601 Reducer is that by the addition of both chromium and aluminium in its alloy, the metal proves to have good resistance to oxidative sulfur bearing environments. In fact, this property is useful even when the Inconel 601 Tee is used for elevated temperature applications.
Grade | Inconel Alloy 601 / UNS N06601 |
Schedule | SCH 5 To SCH XXS |
Wall Thickness | from 2 to 40 mm |
Inconel 600 Welded Fittings | 1/2" NB - 48" NB |
Form | 90 Elbow, 45 Elbow, Long Radius Elbow, Short Radius Elbow, Concentric Reducer, Eccentric Reducer, Equal Tee, Unequal Tee, Lateral Tee, Cross, Bends 1.5d, 3d, 5d, 10d, U bend, 180 Deg Bend, Short Stub End, Long stub end, End Cap, Dish Cap |
Standard | ASTM B366, ASME SB366 |
Dimensions | ASME B16.28, ASME/ANSI B16.9, MSS-SP-43 |
Inconel 600 Seamless Fittings | 1/2" NB - 10" NB |
Type | Seamless / Welded / Fabricated |
ASME B16.9 Inconel 600 Fittings | Factory-Made Wrought Buttwelding Fittings | Long Radius Elbows, Long Radius Reducing Elbows, Long Radius Returns, Short Radius Elbows, Short Radius 180-deg Rerurns, 3D elbows, Straight Tees, Straight Crosses, Reducing Outlet Tees, Reducing Outlet Crosses, Lap Joint Stub Ends, Caps, Reducers |
ASME B16.28 | Short Radius Elbows, Short Radius 180-deg Returns | |
MSS SP43 | Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications | Long Radius Elbows, Straight and Reducing-on-the-Outlet Tees, Lap Joint Stub ends, caps, long radius 180 Degree returns, concentric reducers, eccentric reducers |
Mss SP75 | Long Radius Elbows, 3R elbows, straight tees, reducing outlet tees, caps, reducers |
Inconel 601 ASTM B366 Fittings | Inconel 601 Pipe Fitting |
Inconel 601 din 2.4851 90 Degree Elbow | ASTM B366 UNS N06601 End Cap |
Nickel 601 45 Degree Elbow | Alloy 601 Buttweld Fitting |
Inconel 601 UNS N06601 1D Elbow | Nickel Alloy 601 Short Stub End |
Alloy 601 Stub End | Inconel 601 ASTM B366 Pipe Cap |
601 Inconel 3D Elbow | Inconel alloy 601 End Cap |
Inconel 601 5D Elbow | Inconel alloy 601 Reducer |
Inconel 601 ASTM B366 Buttweld Fittings | ASTM B366 UNS N06601 Pipe Bend |
Nickel 601 Pipe Fittings | Inconel 601 UNS N06601 Long Stub End |
Alloy 601 Eccentric Reducer | Inconel 601 UNS N06601 Long Radius Elbow |
Inconel alloy 601 Concentric Reducer | Inconel 601 din 2.4851 Short Radius Elbow |
Nickel 601 Equal Cross | Inconel 601 ASTM B366 Pipe Cap |
ASTM B366 UNS N06601 Lateral Tee | 601 Inconel Cross Tee |
Nickel Alloy 601 Reducing Cross | Alloy 601 Equal Cross |
Inconel 601 Equal Tee | Inconel alloy 601 Stub End |
ASTM B366 UNS N06601 Concentric Reducer | Nickel 601 5D Elbow |
NPS | LBS | KG |
---|---|---|
1/2 | 0.18 | 0.08 |
3/4 | 0.19 | 0.09 |
1 | 0.4 | 0.18 |
1¼ | 0.6 | 0.27 |
1½ | 0.9 | 0.41 |
2 | 1.6 | 0.73 |
2½ | 3.25 | 1.47 |
3 | 5 | 2.27 |
3½ | 6.75 | 3.06 |
4 | 9 | 4.08 |
5 | 15 | 6.8 |
6 | 24.5 | 11.11 |
8 | 50 | 22.68 |
10 | 88 | 39.92 |
12 | 125 | 56.7 |
14 | 160 | 72.57 |
16 | 206 | 93.44 |
18 | 260 | 117.93 |
20 | 320 | 145.15 |
22 | 394 | 178.72 |
24 | 460 | 208.65 |
26 | 550 | 249.48 |
30 | 734 | 332.94 |
36 | 1062 | 481.72 |
NPS | LBS | KG |
Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
Inconel 601 | 8.1 g/cm3 | 1411 °C (2571 °F) | Psi – 80,000 , MPa – 550 | Psi – 30,000 , MPa – 205 | 30 % |
Grade | C | Mn | Si | S | Cu | Fe | Ni | Cr |
Inconel 601 | 0.10 max | 1.00 max | 0.50 max | 0.015max | 1.00 max | Balance | 58.0 – 63.0 | 21.0 – 25.0 |
STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
Inconel 601 | 2.4851 | N06601 | NCF 601 | NA 49 | XH60BT | NC23FeA | NiCr23Fe |
UNS: |
N06601 |
Specifications: |
ASTM B366, ASME SB366 |
international Specifications: |
WERKSTOFF Nr 2.4851 |
